Detail Set Up - Endress+Hauser eco-graph a Betriebsanleitung

Select the required type of measurement to be made from the signal
connected from the list (e.g. per transmitter). This is accepted as the channel
identifier. If the measurement type required cannot be found in the list then
Select measurement
select "FREE..." and then enter the correct channel identifier (10 characters)
type
manually. Hint: If you have selected one of the measurement types then a
listing of possible engineering units for this measurement type will be found in
"Select units".
Select the required units for the measurement to be made from the list. This
will be accepted as the entry for Engineering units. If the engineering units
Select units
required cannot be found in the list then select "FREE..." and then enter the
correct engineering units (6 characters) manually.
Decimal point Number of decimal points in the 5 digit measured value display.
Transmitter transforms the physical measurement into a standard signal.
Range start Example: 0-14 pH of a sensor is transformed into 4-20 mA. Enter the starting
point of the measurement range. A "0" for 0-14 pH.
Same as for "Range start". Enter the end value for the measurement range,
Range end
e.g. "14" on a 0-14 pH transmitter.

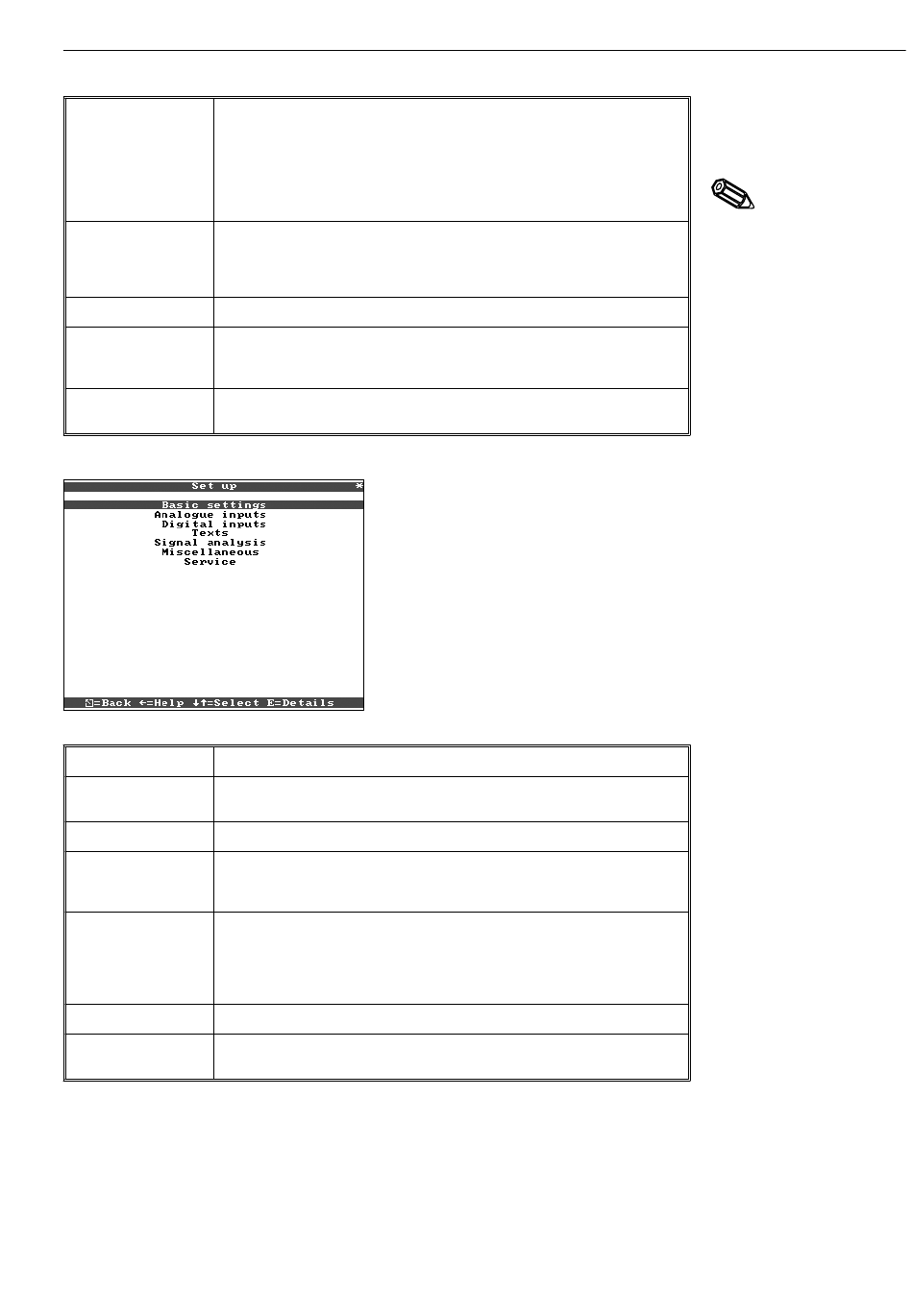

The set up window:
Individual parameters are grouped together in various chapters:
Basic settings Common general parameters (date, time, release code ...)
All channel or measurement point relevant parameters for the analogue
Analogue inputs
channels (input signals, measurement point identifier, alarm set points, ...)
Digital inputs All channel relevant parameters for the digital channels (function, identifier, ...)
Only presettable on active digital control input "Text selection (BCD)"!
Texts Enter the text lines which are to be selectable by connecting a BCD code to
the digital inputs and are then to be stored in the event list during operation.
All settings required so that the signals can be automatically analyses. Hint:
The signal analysis is stored and can be used on a PC later. This means that
Signal analysis for example daily minima, maxima and averages of a few measurement points
can be red out front end and then displayed as a table or even graphically as
a curve. Helps to optimise memory capacity.
Miscellaneous Interface parameters, memory availability display, simulation, ...
General service functions, relay operation mode - ONLY FOR SKILLED
Service
AUTHORISED SERVICE PERSONNEL !!
4. Setting up unit - SET UP

4.2.5 DETAIL set up

(all parameters)
