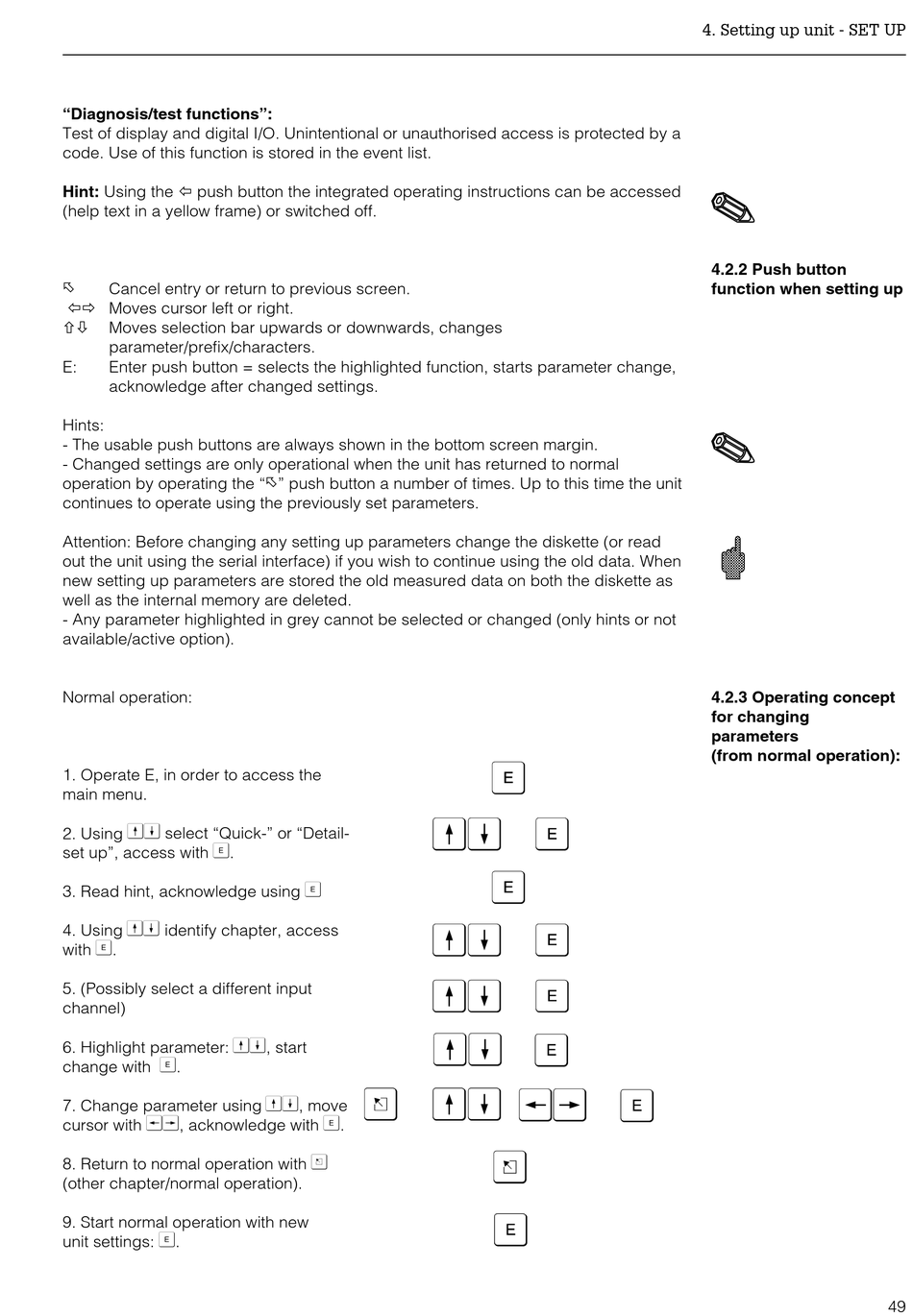

"Diagnosis/test functions":
Test of display and digital I/O. Unintentional or unauthorised access is protected by a
code. Use of this function is stored in the event list.
Hint: Using the ï push button the integrated operating instructions can be accessed
(help text in a yellow frame) or switched off.
õ
Cancel entry or return to previous screen.
ïð Moves cursor left or right.
ñò
Moves selection bar upwards or downwards, changes
parameter/prefix/characters.
E:
Enter push button = selects the highlighted function, starts parameter change,
acknowledge after changed settings.
Hints:
- The usable push buttons are always shown in the bottom screen margin.
- Changed settings are only operational when the unit has returned to normal
operation by operating the "õ" push button a number of times. Up to this time the unit
continues to operate using the previously set parameters.
Attention: Before changing any setting up parameters change the diskette (or read
out the unit using the serial interface) if you wish to continue using the old data. When
new setting up parameters are stored the old measured data on both the diskette as
well as the internal memory are deleted.
- Any parameter highlighted in grey cannot be selected or changed (only hints or not
available/active option).
Normal operation:
1. Operate E, in order to access the
main menu.
VW
2. Using
select "Quick-" or "Detail-
F
set up", access with
.
3. Read hint, acknowledge using
VW
4. Using
identify chapter, access
F
with
.
5. (Possibly select a different input
channel)
VW
6. Highlight parameter:
F
change with
.
7. Change parameter using
UT
cursor with
, acknowledge with
8. Return to normal operation with
(other chapter/normal operation).
9. Start normal operation with new
F
unit settings:
.
F
, start
VW
, move
F
.
Z
4. Setting up unit - SET UP
4.2.2 Push button
function when setting up
4.2.3 Operating concept
for changing
parameters
(from normal operation):
49
