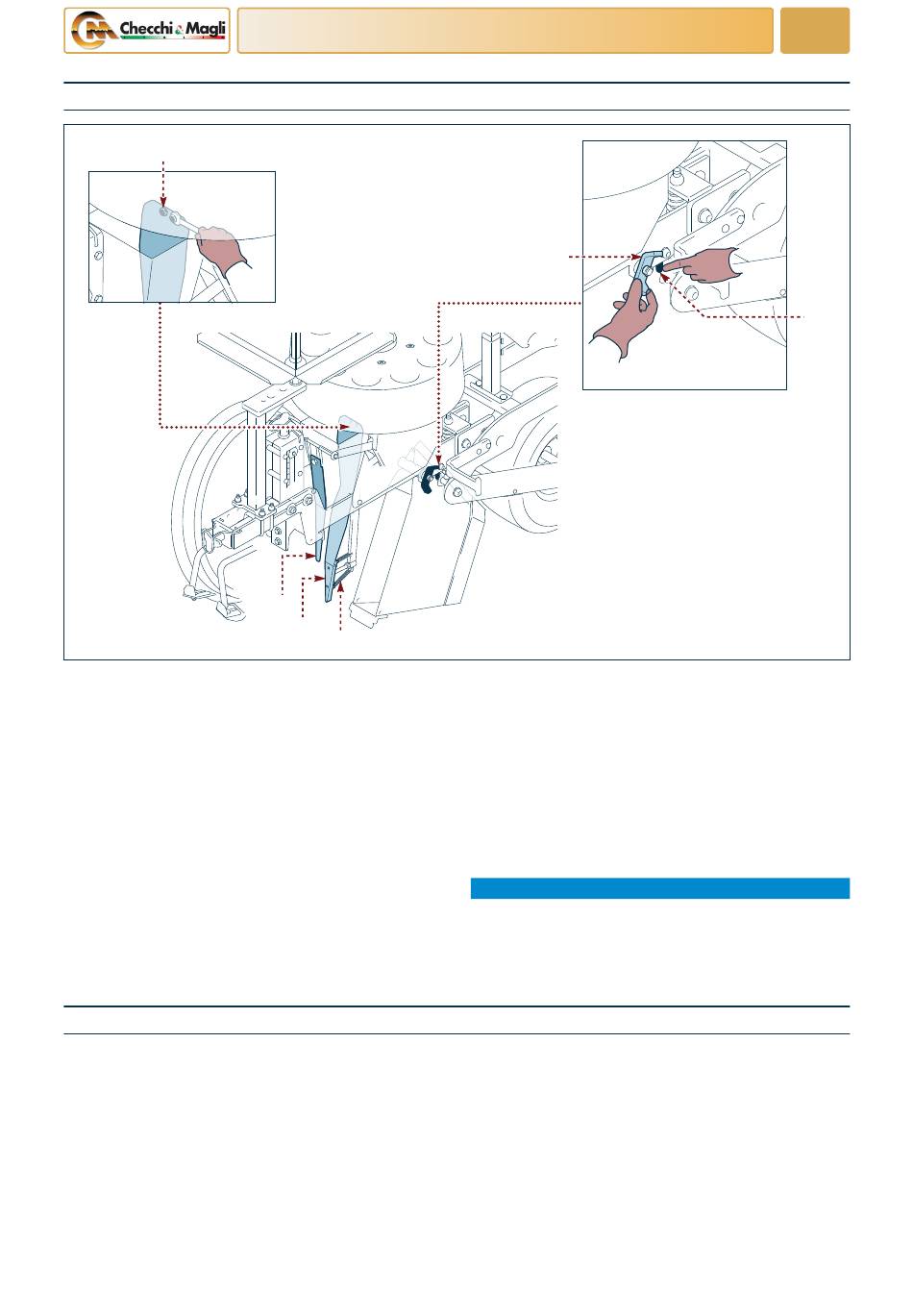

Replacing the flexible plate
D
UN41-0408FL
For this operation, proceed as outlined below.
1) Loosen the wing nut (A).
2) Turn the lock lever (B).
3) Push the share forwards and turn it so it is facing
downwards.
4) Release the springs (C).
5) Unscrew the screws (D).
6) Remove the flexible plate (E).
7) Fit the new flexible plate in position.
8) Tighten the screws (D).
9) Hook up the springs (C).
Scrapping the work vehicle
Scrapping operations must be handled by specialised
personnel with suitable skills for the job.
The components removed must be sorted according to
English language
INFORMATION CONCERNING REPLACEMENTS
F
E
C
38
A
10) Make sure the flexible plate is centred (see "Sym-
metrical adjustment of the flexible plate with the
ploughshare").
11) Check the position of the flexible plate with respect
to the share (see "Adjusting the flexible plate posi-
tion with the ploughshare").
12) Tighten the screws (D).
13) Refit the share in the work position.
14) Tighten the wing nut (A).
NOTICE
Check that the Plant Control device (F) is inside the
ploughshare.
the type of materials they contain and in compliance
with the laws in force concerning "waste collection, sort-
ing and disposal".
