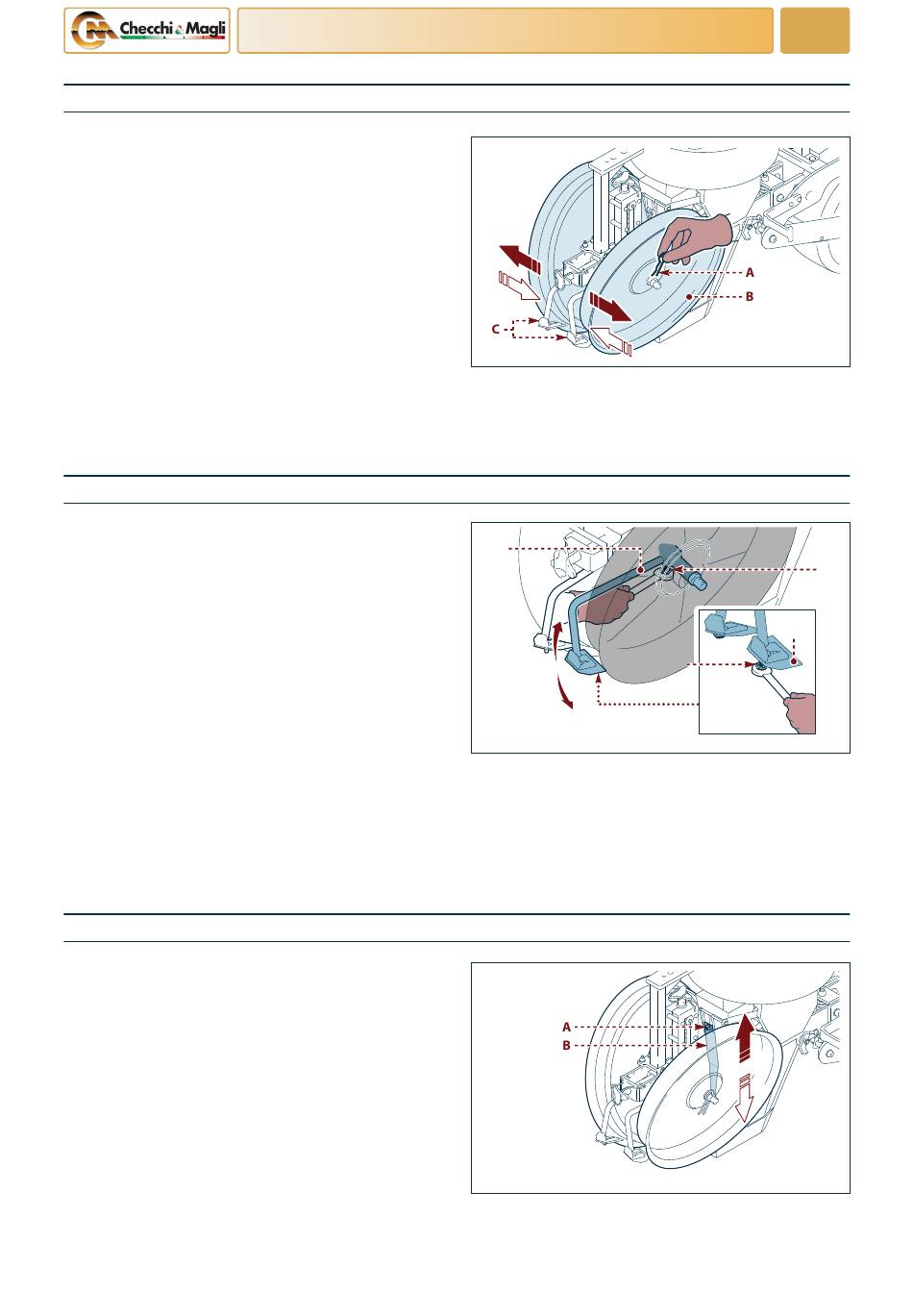

Adjusting the packing efficiency
Adjust the spacing between the packing wheels (B) as
required.
The farther apart the wheels are, the less efficient the
packing is.
For adjustments, proceed as outlined below.
1) Remove the pin (A) from both packing wheels.
2) Open out the packing wheels (B) as required and
then lock them in position with the pins (A).
3) Adjust the scrapers (C) accordingly (see "Adjusting
the packing wheel scraper").
Adjusting the packing wheel scraper
The scraper is used to clean the packing wheels, remov-
ing any soil and debris that has built up.
For this operation, proceed as outlined below.
1) Loosen the screw (A).
2) Turn the scraper (C) until it reaches the desired posi-
tion.
3) Tighten the screw (A).
4) Loosen the nut (B).
5) Position the blade (D) so that it is just touching the
packing wheel.
6) Tighten the nut (B).
7) Repeat the same procedure for the other scraper.
Carry out the same operations to adjust the scrapers of
the other planting units installed.
Adjusting the Plant Control device
The Plant Control device stops the seedling in vertical
position before they are ejected.
Move the device down for smaller seedlings and up for
taller seedlings.
For adjustments, proceed as outlined below.
1) Slightly loosen the nut (A).
2) Adjust the device (B) as required.
3) After adjustment, tighten the nut (A).
English language
ADJUSTMENT INFORMATION
UN41-0385FL
C
UN41-0390FL
UN41-0388FL
18
5
A
D
B
Use and maintenance
