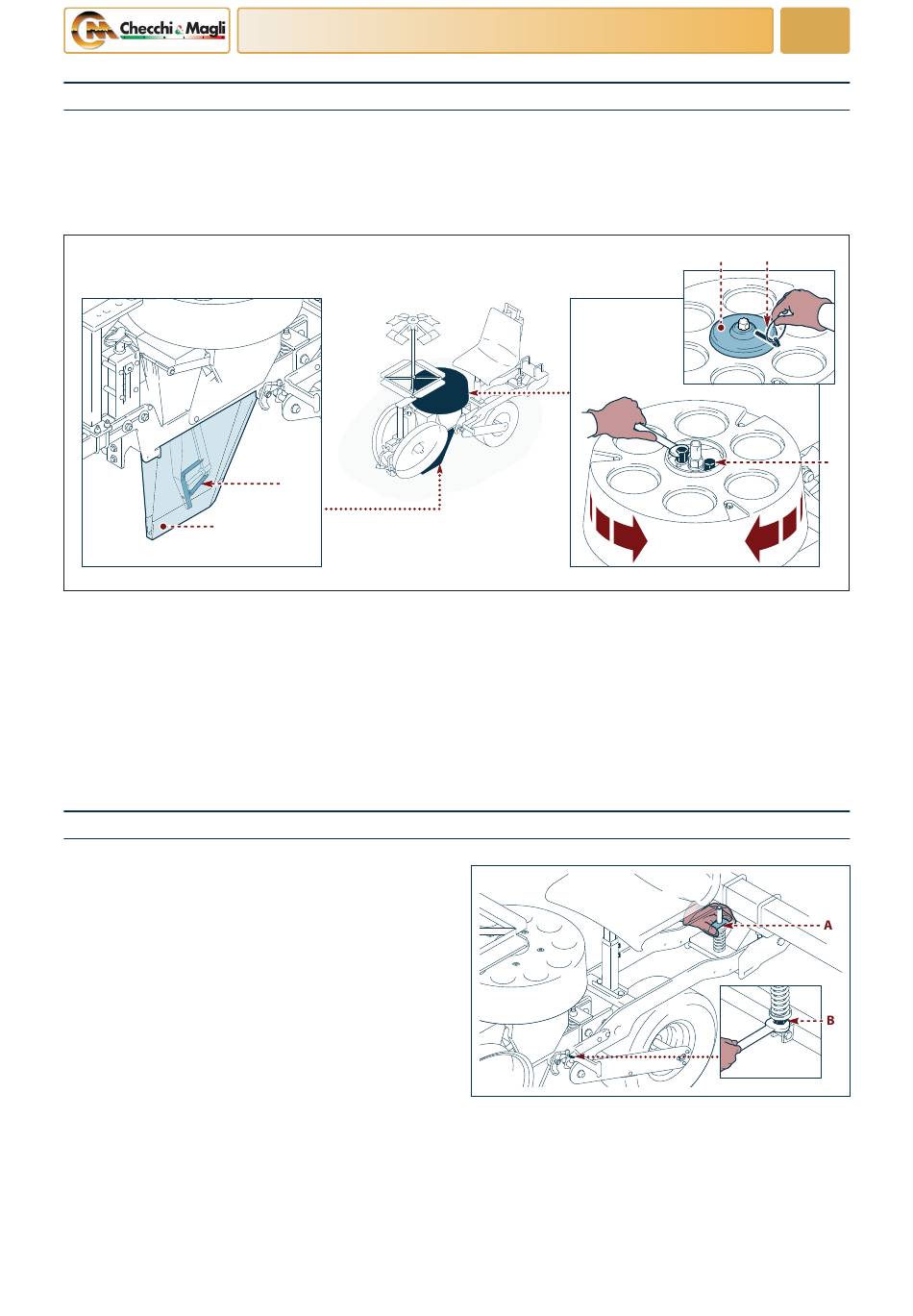

Adjusting the dispensing/ejection timing
When the plant falls into the ploughshare (C), the ejector
(B) should be in the rear position and should then start
pushing the plant to eject it.
C
UN41-401FL
For adjustments, proceed as outlined below.
1) Remove the pin (A).
2) Remove the lid (D).
3) Loosen the screws (E).
4) Turn the dispenser clockwise to speed up the ejec-
tor's pushing action or rotate the dispenser anticlock-
Adjusting the planting unit load
The weight (load) to be applied to the packing wheels is
obtained by the combined action of the handwheel (A)
and nut (B).
For adjustments, proceed as outlined below.
Alternatively turn the handwheel (A) clockwise or anti-
clockwise and tighten or loosen the nut (B) to exercise
the ideal weight on the packing wheels.
English language
ADJUSTMENT INFORMATION
B
23
If the conditions allow high- or low-speed planting, cor-
rect timing between the dispenser and the ejector can
be maintained by adjusting the dispenser.
wise to delay the pushing action.
The notches on the dispenser allow accurate timing
adjustment.
5) Tighten the screws (E).
6) Place the lid (D) on the dispensing unit.
7) Insert the pin (A).
UN41-0405ML
5
D A
E
