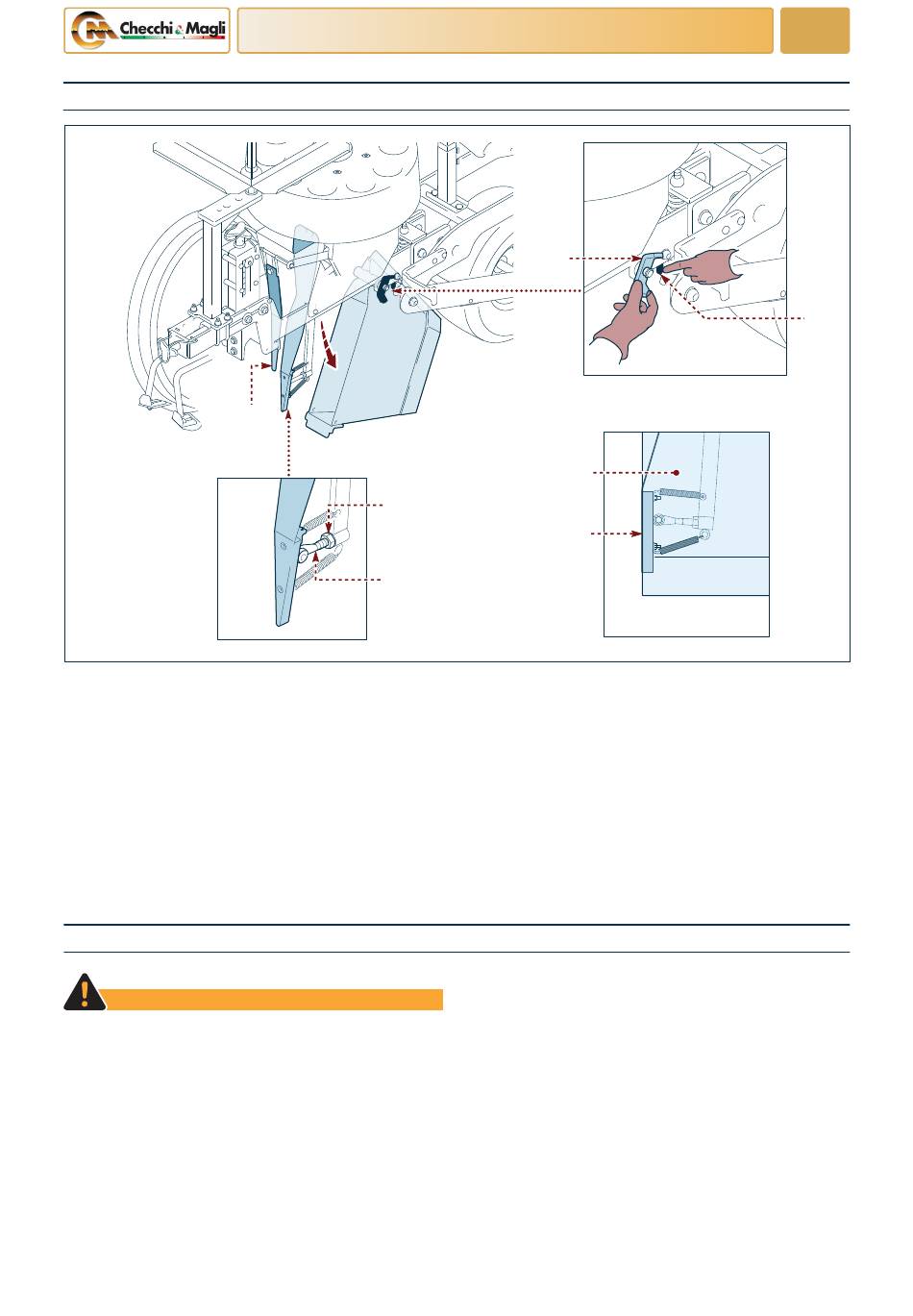

Adjusting the flexible plate position with the ploughshare
UN41-0523AN
For adjustments, proceed as outlined below.
1) Loosen the wing nut (A).
2) Turn the lock lever (B).
3) Push the share forwards and turn it so it is facing
downwards.
4) Loosen the nut (C).
5) Turn the element (D) to position the flexible plate
(F) with the ploughshare (G) as shown in the figure.
Adjusting the row spacing
WARNING
Secure the work vehicle in position (lifted off the
ground) with external means (trestles, etc.).
Do not stand under the hoisted machine unless it is
suitably secured in position.
English language
ADJUSTMENT INFORMATION
E
C
D
A
G
F
6) Tighten the nut (C).
7) Refit the share in the work position.
8) Check that the Plant Control device (E) is inside the
ploughshare.
9) Make sure that the share is secured in place with the
lock lever (B).
10) Tighten the wing nut (A).
Adjust the gap between the planting units to obtain
the row spacing required (for distances envisaged, see
"Technical characteristics" for model concerned).
Keep the minimum distance stated on the illustration
between the seedlings and the tractor wheels.
20
5
B
