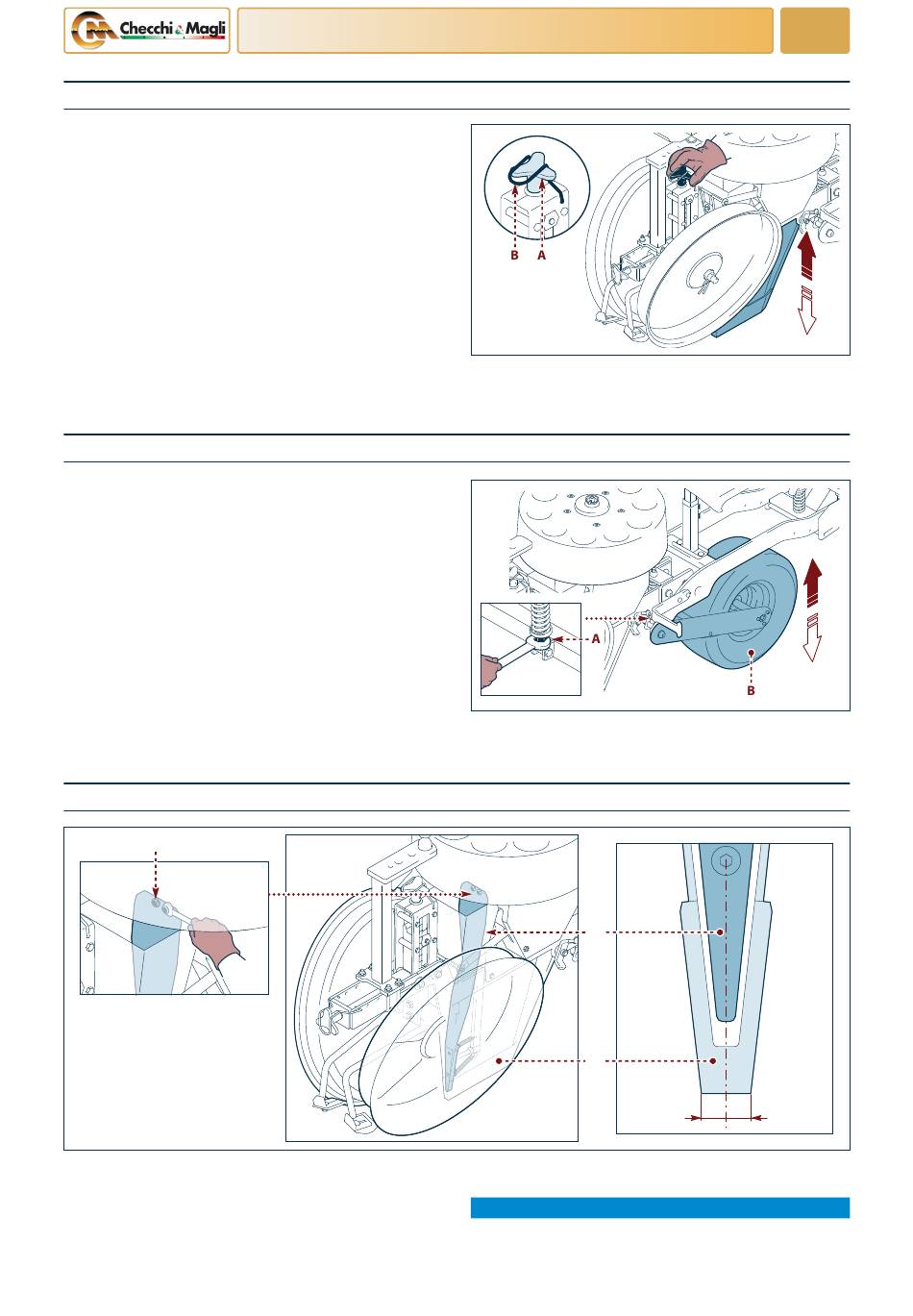

Planting depth adjustment
For adjustments, proceed as outlined below.
1) Use the lock (B) to release the knob (A).
2) Turn the knob (A) to increase or decrease the depth
of the furrow.
3) After adjustment, secure the knob with the lock (B).
Adjusting the driving wheel load
To adjust the load of the wheel on the ground, proceed
as outlined below.
- Tighten the nut (A) to increase the load of the driving
wheel (B) on the ground.
- Unscrew the nut to reduce the load of the driving
wheel on the ground.
Symmetrical adjustment of the flexible plate with the ploughshare
A
UN41-0393FL
For adjustments, proceed as outlined below.
1) Loosen the screws (A).
2) Centre the flexible plate (B) in relation to the share
(C).
English language
ADJUSTMENT INFORMATION
UN41-0392FL
UN41-0397ML
3) Tighten the screws (A).
NOTICE
Check that the flexible plate does not rub against the
ploughshare.
19
B
C
= =
