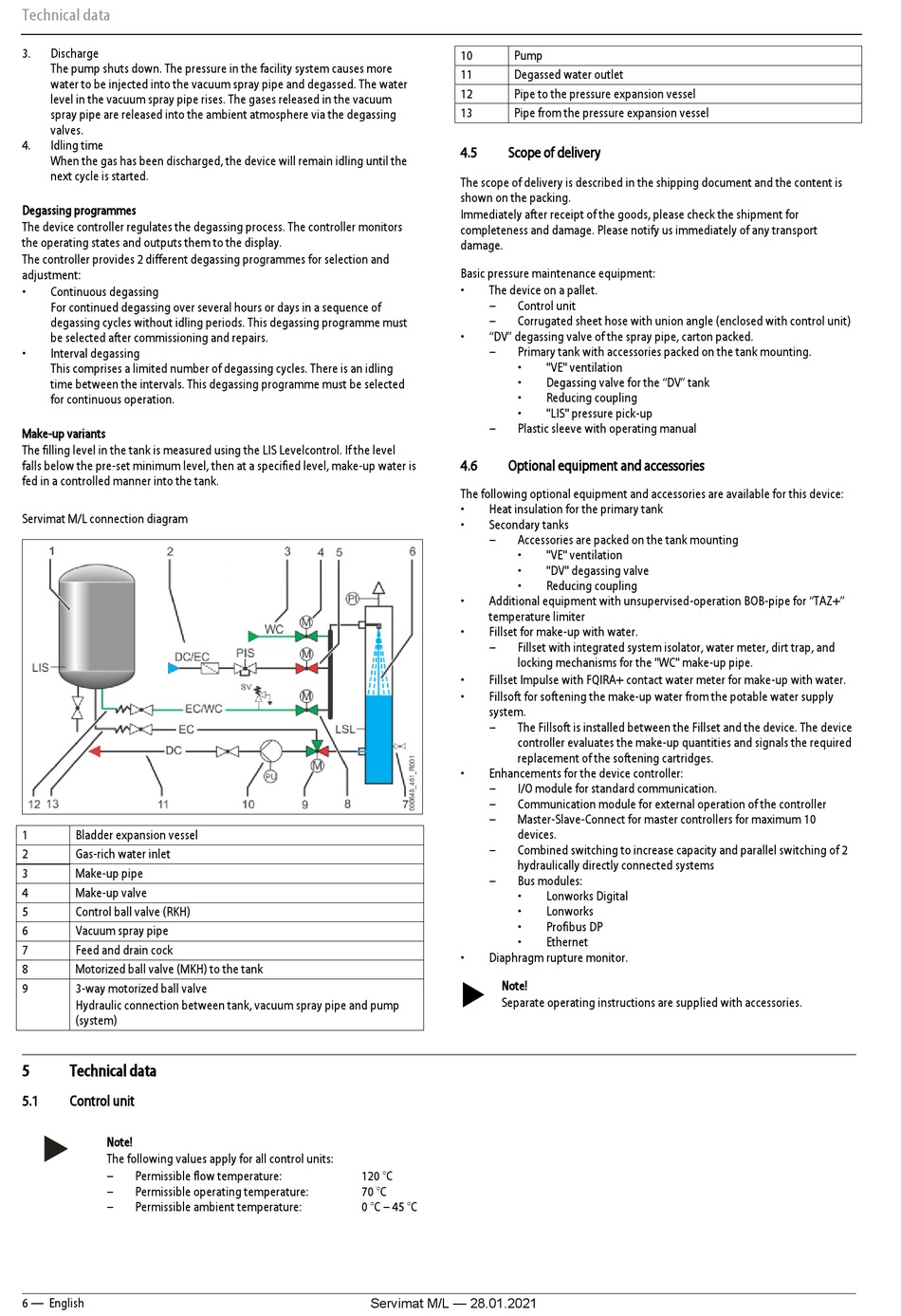

Scope Of Delivery; Optional Equipment And Accessories; Technical Data; Control Unit - Reflex Servimat M Originalbetriebsanleitung

Technical data

3. Discharge
The pump shuts down. The pressure in the facility system causes more
water to be injected into the vacuum spray pipe and degassed. The water
level in the vacuum spray pipe rises. The gases released in the vacuum
spray pipe are released into the ambient atmosphere via the degassing
valves.
4. Idling time
When the gas has been discharged, the device will remain idling until the
next cycle is started.
Degassing programmes
The device controller regulates the degassing process. The controller monitors
the operating states and outputs them to the display.
The controller provides 2 different degassing programmes for selection and
adjustment:
• Continuous degassing
For continued degassing over several hours or days in a sequence of
degassing cycles without idling periods. This degassing programme must
be selected after commissioning and repairs.
• Interval degassing
This comprises a limited number of degassing cycles. There is an idling
time between the intervals. This degassing programme must be selected
for continuous operation.
Make-up variants
The filling level in the tank is measured using the LIS Levelcontrol. If the level
falls below the pre-set minimum level, then at a specified level, make-up water is
fed in a controlled manner into the tank.
a umso besser
Servimat M/L connection diagram
1 Bladder expansion vessel
2 Gas-rich water inlet
3 Make-up pipe
4 Make-up valve
5 Control ball valve (RKH)
6 Vacuum spray pipe
7 Feed and drain cock
8 Motorized ball valve (MKH) to the tank
9 3-way motorized ball valve
Hydraulic connection between tank, vacuum spray pipe and pump
(system)
5 Technical data
5.1

Control unit

Note!
The following values apply for all control units:
– Permissible flow temperature:
– Permissible operating temperature:
– Permissible ambient temperature:
6 — English
10 Pump
11 Degassed water outlet
12 Pipe to the pressure expansion vessel
13 Pipe from the pressure expansion vessel
4.5

Scope of delivery

The scope of delivery is described in the shipping document and the content is
shown on the packing.
Immediately after receipt of the goods, please check the shipment for
completeness and damage. Please notify us immediately of any transport
damage.
Basic pressure maintenance equipment:
• The device on a pallet.
– Control unit
– Corrugated sheet hose with union angle (enclosed with control unit)
• "DV" degassing valve of the spray pipe, carton packed.
– Primary tank with accessories packed on the tank mounting.
•
•
•
•
– Plastic sleeve with operating manual
4.6

Optional equipment and accessories

The following optional equipment and accessories are available for this device:
• Heat insulation for the primary tank
• Secondary tanks
– Accessories are packed on the tank mounting
•
•
•
• Additional equipment with unsupervised-operation BOB-pipe for "TAZ+"
temperature limiter
• Fillset for make-up with water.
– Fillset with integrated system isolator, water meter, dirt trap, and
locking mechanisms for the "WC" make-up pipe.
• Fillset Impulse with FQIRA+ contact water meter for make-up with water.
• Fillsoft for softening the make-up water from the potable water supply
system.
– The Fillsoft is installed between the Fillset and the device. The device
controller evaluates the make-up quantities and signals the required
replacement of the softening cartridges.
• Enhancements for the device controller:
– I/O module for standard communication.
– Communication module for external operation of the controller
– Master-Slave-Connect for master controllers for maximum 10
devices.
– Combined switching to increase capacity and parallel switching of 2
hydraulically directly connected systems
– Bus modules:
•
•
•
•
• Diaphragm rupture monitor.
 Note!
Separate operating instructions are supplied with accessories.
120 °C
70 °C
0 °C – 45 °C
Servimat M/L — 28.01.2021
"VE" ventilation
Degassing valve for the "DV" tank
Reducing coupling
"LIS" pressure pick-up
"VE" ventilation
"DV" degassing valve
Reducing coupling
Lonworks Digital
Lonworks
Profibus DP
Ethernet
