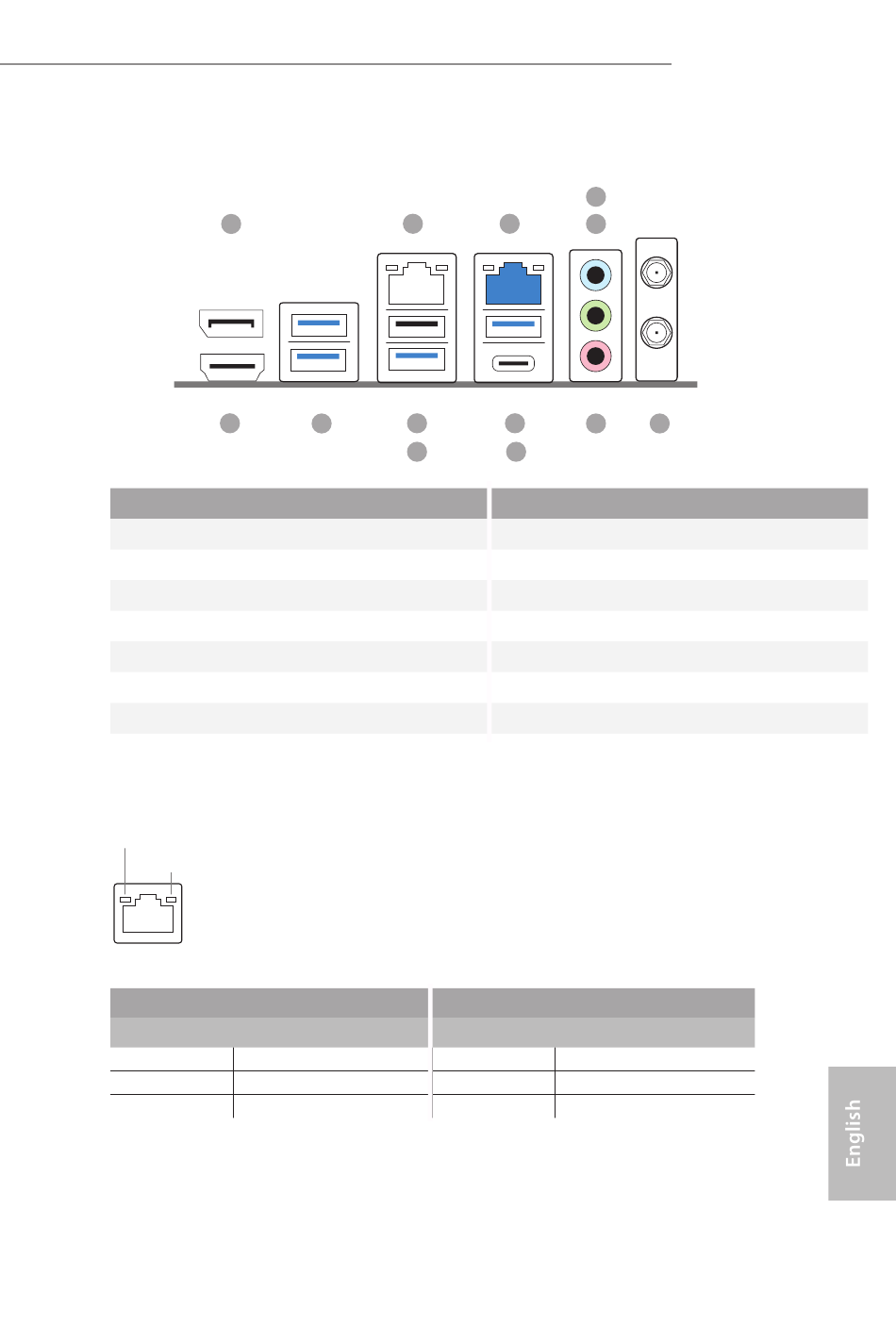

I/O Panel
1
13
No. Description
1
DisplayPort 1.4
2
LAN RJ-45 Port (Intel® I219V)*
3
2.5G LAN RJ-45 Port (Dragon RTL8125BG)** 10
4
Line In (Light Blue)***
5
Front Speaker (Lime)***
6
Antenna Ports
7
Microphone (Pink)***
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
2
12
10
11
Speed LED
Status
Off
Orange
Green
4
3
5
8
7
6
9
No. Description
8
USB 3.2 Gen2 Type-A Port (USB31_TA_1)
9
USB 3.2 Gen2x2 Type-C Port (USB31_TC_1)
USB 2.0 Port (USB_3)
11
USB 3.2 Gen2 Type-A Port (USB_4)
12
USB 3.2 Gen2 Type-A Ports (USB_12)
13
HDMI Port
Description
10Mbps connection
100Mbps connection
1Gbps connection
Z590M-ITX/ax
3
