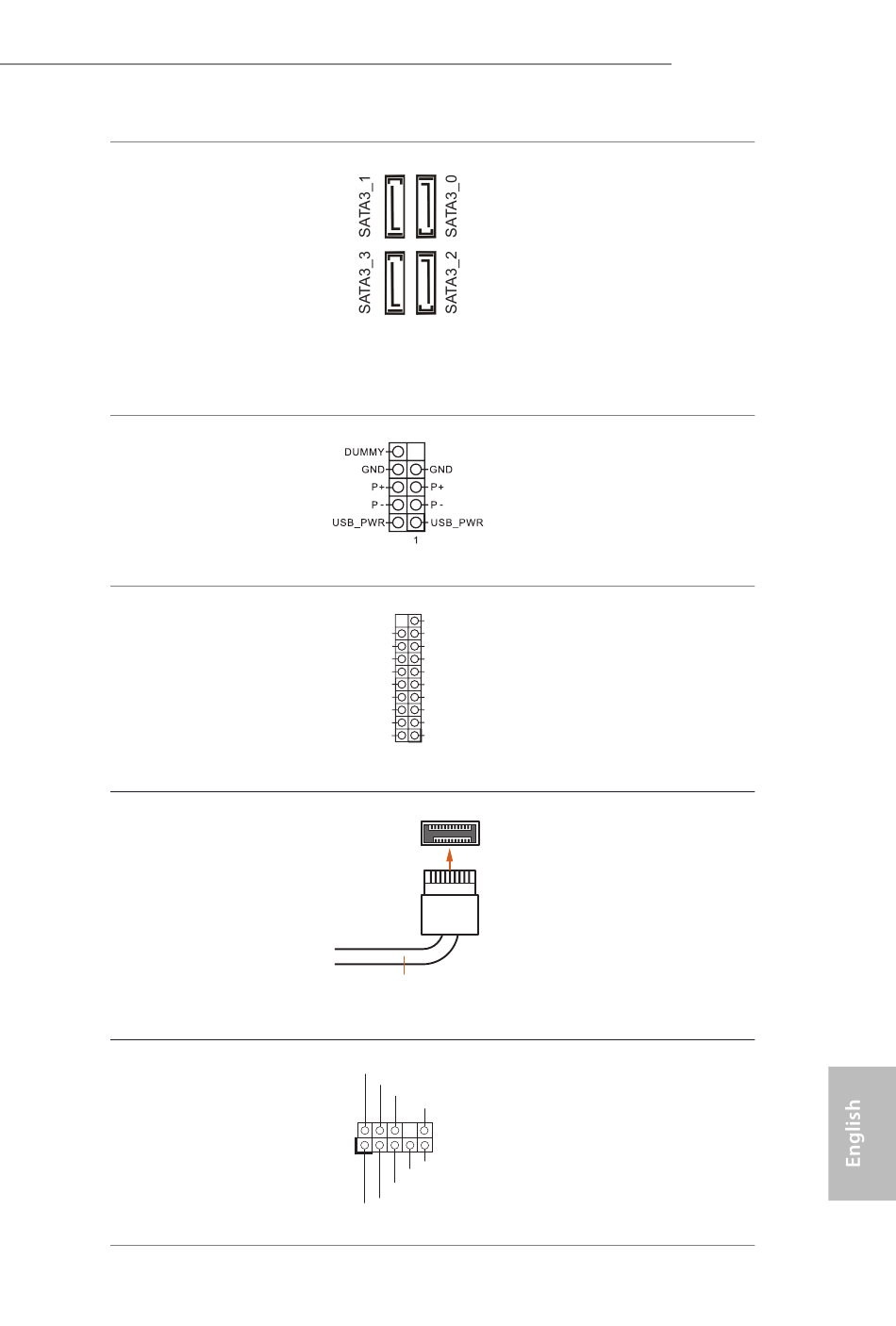

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 9)
(SATA3_1:
see p.1, No. 8)
(SATA3_2:
see p.1, No. 11)
(SATA3_3:
see p.1, No. 10)
USB 2.0 Header
(9-pin USB_56)
(see p.1, No. 6)
USB 3.2 Gen1 Header
(19-pin USB3_12)
(see p.1, No. 7)
Front Panel Type C USB
3.2 Gen2 Header
(20-pin F_USB3_TC_1)
(see p.1, No. 12)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 16)
Vbus
Vbus
Vbus
IntA_PB_SSRX-
IntA_PA_SSRX-
IntA_PB_SSRX+
IntA_PA_SSRX+
GND
GND
IntA_PB_SSTX-
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND
IntA_PB_D-
IntA_PA_D-
IntA_PB_D+
IntA_PA_D+
Dummy
1
USB Type-C Cable
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
These four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
There is one USB2.0
header on this
motherboard. This USB
2.0 header can support
two ports.
There is one header on
this motherboard. This
USB 3.2 Gen1 header can
support two ports.
There is one Front
Panel Type C USB 3.2
Gen2 Header on this
motherboard. This header
is used for connecting a
USB 3.2 Gen2 module for
additional USB 3.2 Gen2
ports.
This header is for
connecting audio devices
to the front audio panel.
Z590M-ITX/ax
23
