1
A
A
2
28
2
1
20
o
1
2

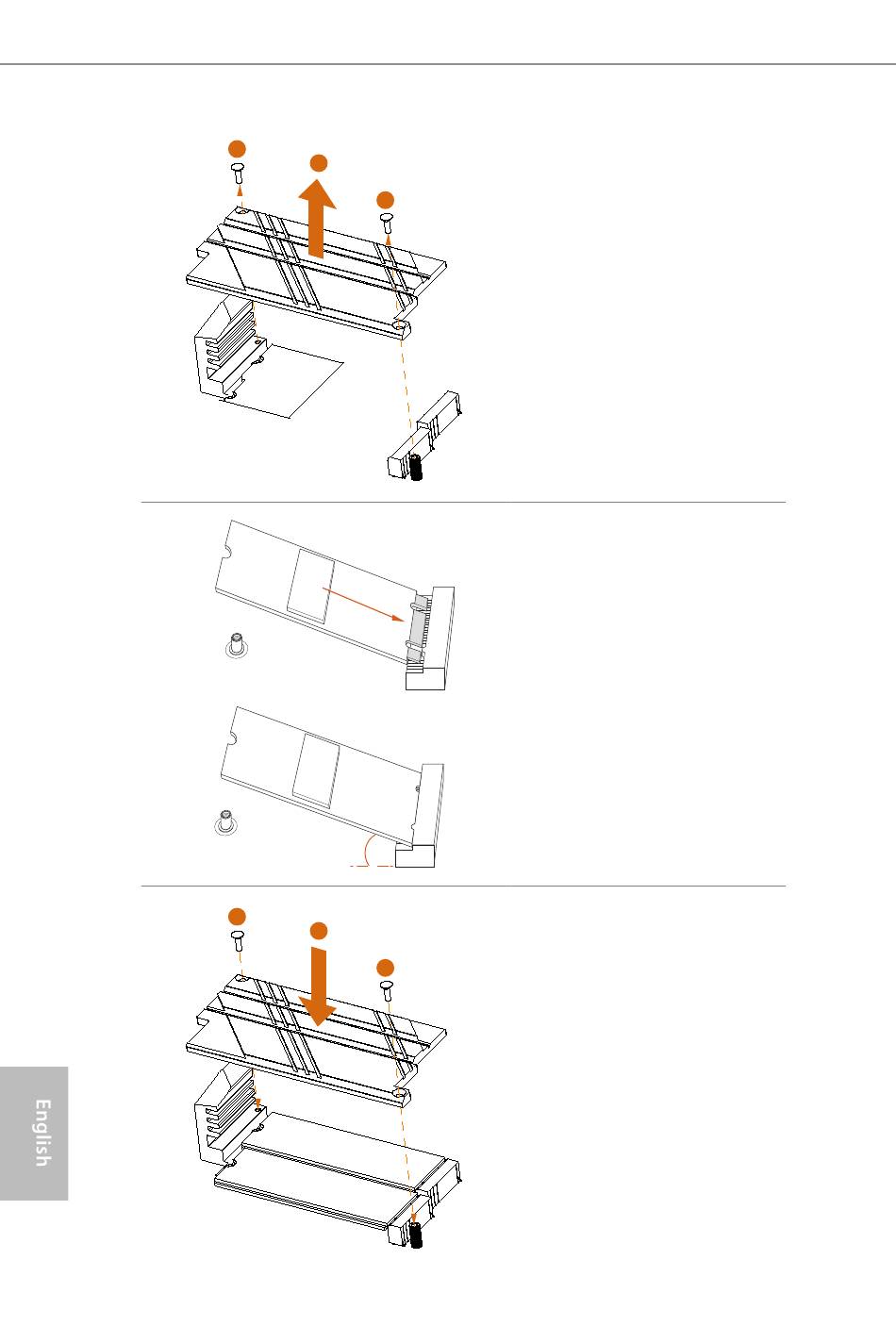

Step 3
Before installing a M.2 (NGFF) SSD
module, please loosen the screws to
remove the M.2 heatsink.
*Please remove the protective films
on the bottom side of the M.2
heatsink before you install a M.2
SSD module.
Step 4
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only fits in
one orientation. Tighten the screws
that come with the package with a
screwdriver to secure the modules
into place.
Step 5
Tighten the screw with a screwdriver
to secure the M.2 heatsink into
place. Please do not overtighten the
screw as this might damage the M.2
heatsink.
