Electrical Wire Diagram; Control Board - Pit Boss AUSTIN XL Montage- Und Betriebsanleitung

The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
PB – ELECTRIC REQUIREMENTS
220-240V, 50HZ, 250W, 3-PRONG GROUNDED PLUG
NOTE: Electrical components, passed by product safety testing and certification services, comply
with a testing tolerance of ± 5-10 percent.
FUEL INPUT
RATING:
GROUNDED
1.12 KG/H
POWER CORD
(2.48 LB/H)
FIRE POT
INDEX
W : WHITE
Y : YELLOW
P : PURPLE
R : RED
K : BLACK
G : GREEN

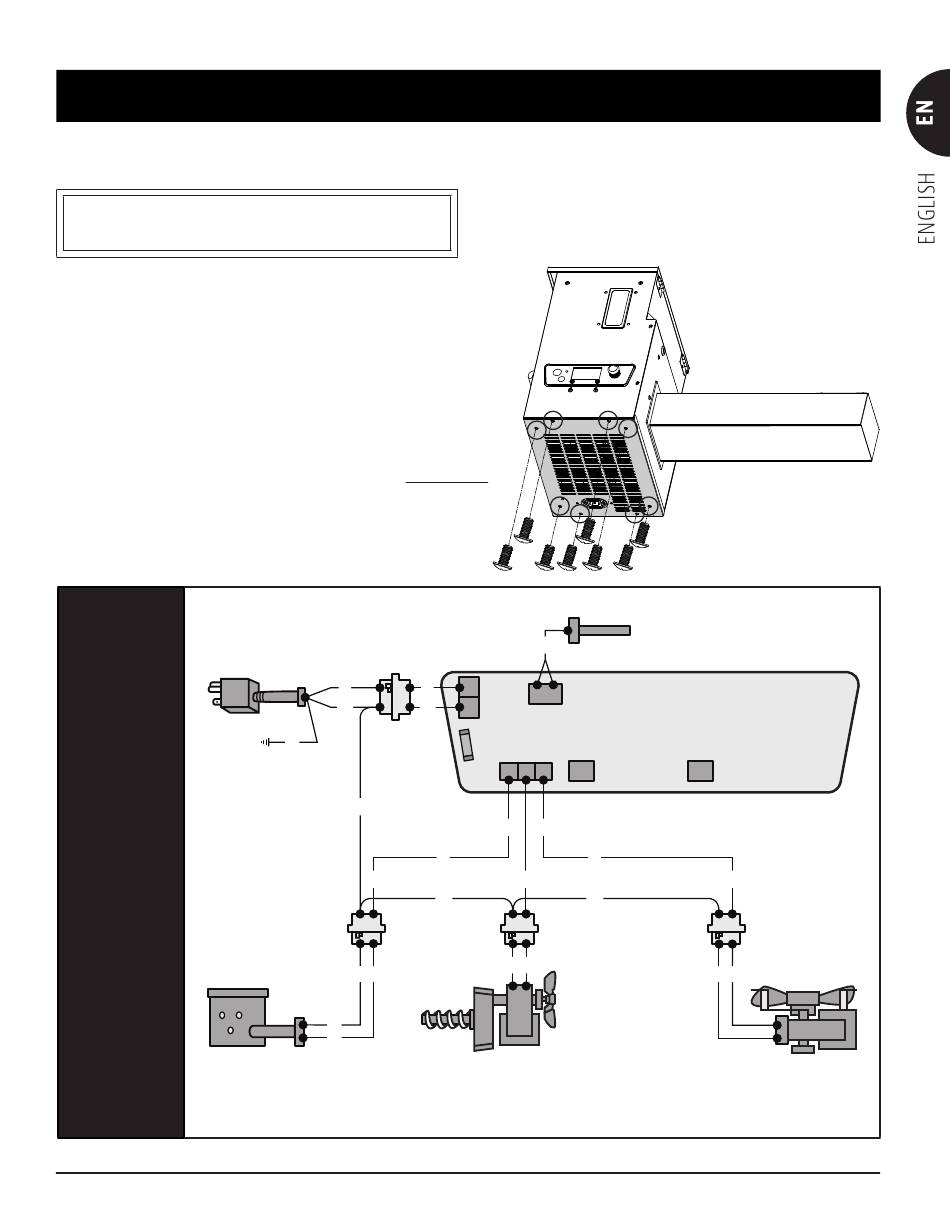

ELECTRICAL WIRE DIAGRAM

LOCATE AND REMOVE
THE EIGHT SCREWS
OF ACCESS PANEL ON
UNDERSIDE OF UNIT
K K
W W
G
GROUND
W
P
W W
W
W
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
200W, 230V,
9.5MM X 127MM (0.375" X 5.000")
K
TEMPERATURE PROBE
MOLEX CONNECTORS
FAST-BLOW FUSE
5 AMP
P Y
P Y
R
W W
R R
AUGER MOTOR
& FEED SYSTEM
230V, 50/60HZ,
2 RPM MOTOR
GRILL
PROBE

CONTROL BOARD

Y
Y Y
DRAFT FAN
230V, 50/60HZ,
1 PHASE
