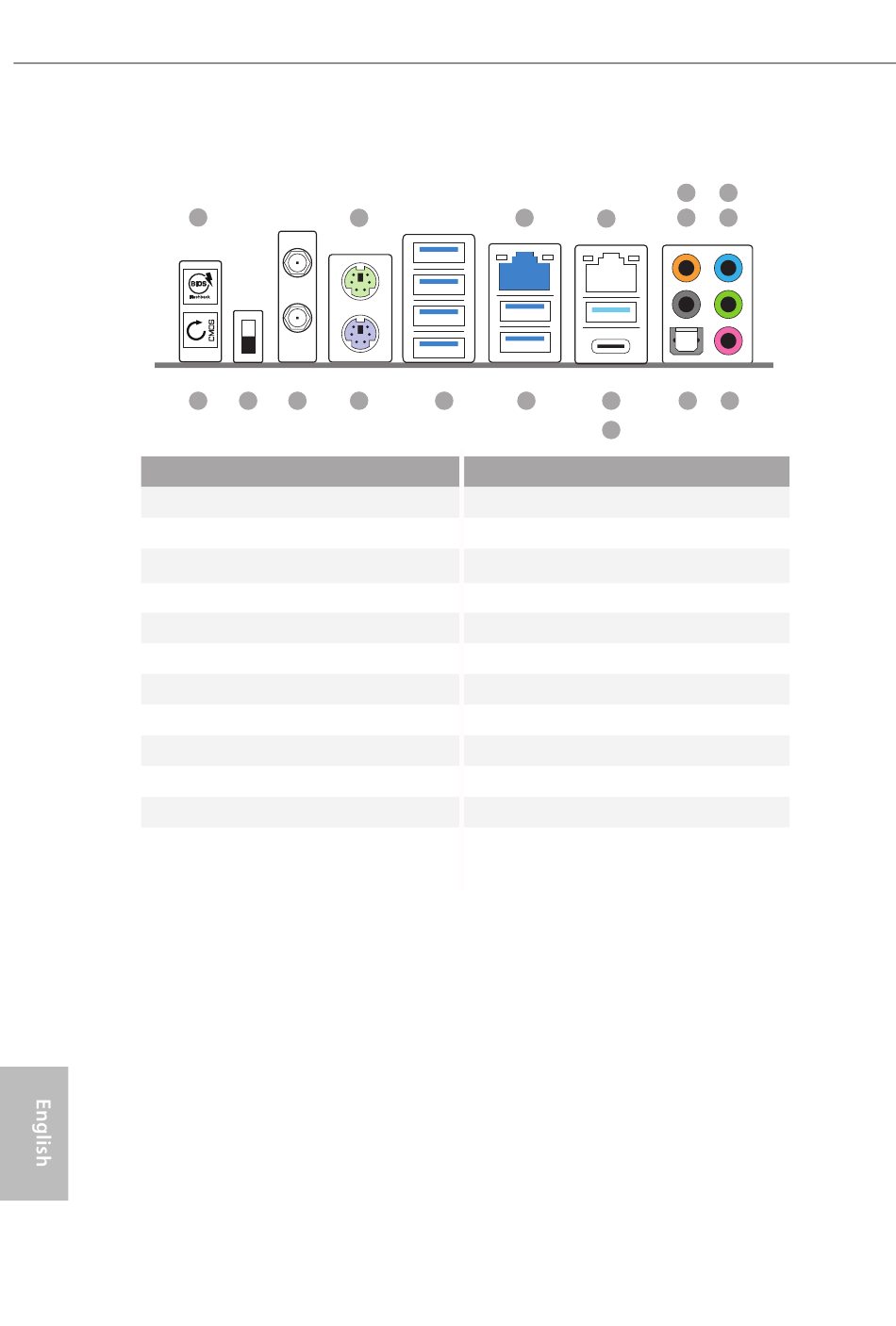

I/O Panel
1
18 17
No. Description
1 BIOS Flashback Button
2 PS/2 Mouse Port
3 2.5G LAN RJ-45 Port (Intel® I225V)*
4 LAN RJ-45 Port (Intel® I219V)**
5 Central / Bass (Orange)
6 Rear Speaker (Black)
7 Line In (Light Blue)
8 Front Speaker (Lime)***
9 Microphone (Pink)
10 Optical SPDIF Out Port
11 USB 3.2 Gen2 Type-A Port
(USB31_TA_3)
4
2
16 15 14
3
4
13 11
12
No. Description
12 USB 3.2 Gen2 Type-C Port
(USB31_TC_1)
13 USB 3.2 Gen2 Type-A Ports
(USB31_TA_12)
14 USB 3.2 Gen1 Ports
(USB3_1234)****
15 PS/2 Keyboard Port
16 Antenna Ports
17 BIOS Selection Switch (AB_SW1)
18 Clear CMOS Button
5 7
6 8
10 9
