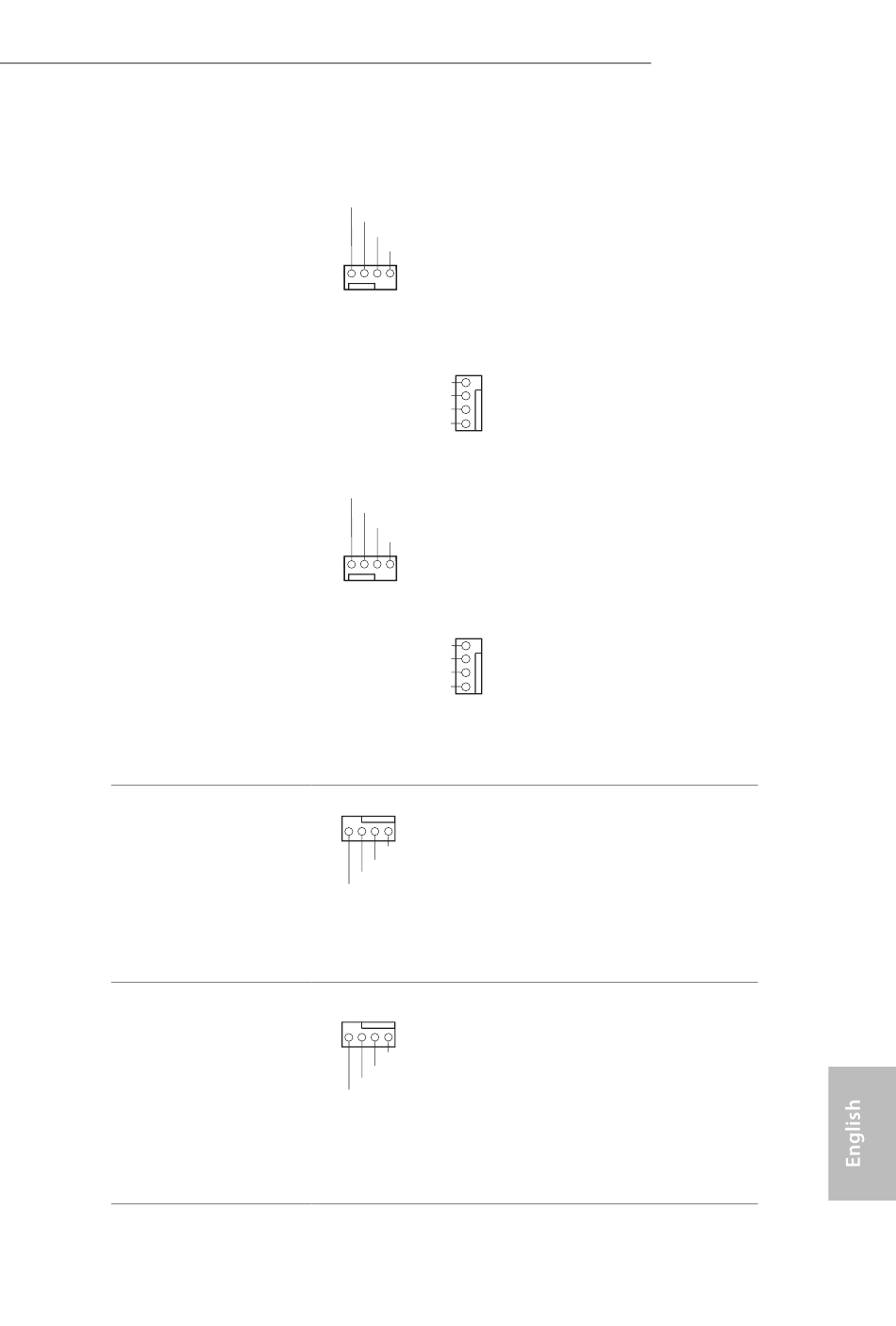

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 43)
(4-pin CHA_FAN2/WP)
(see p.1, No. 37)
(4-pin CHA_FAN3/WP)
(see p.1, No. 30)
(4-pin CHA_FAN4/WP)
(see p.1, No. 35)
(4-pin CHA_FAN5/WP)
(see p.1, No. 36)
(4-pin CHA_FAN6/WP)
(see p.1, No. 29)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 6)
CPU/Water Pump Fan
Connector
(4-pin CPU_FAN2/
WP_3A)
(see p.1, No. 7)
GND
FAN_VOLTAGE
FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
FAN_SPEED_CONTROL 4
3
FAN_SPEED
FAN_VOLTAGE 2
GND 1
GND
FAN_VOLTAGE
FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
FAN_SPEED_CONTROL 4
3
FAN_SPEED
FAN_VOLTAGE 2
GND 1
4 3 2 1
GND
+12V
CPU_F AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
GND
FAN_VOLTAGE
CPU_F AN_SPEED
FAN_SPEED_CONTROL
Z590 OC Formula
This motherboard
provides six 4-Pin water
cooling chassis fan
connectors. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.
This motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
This motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
