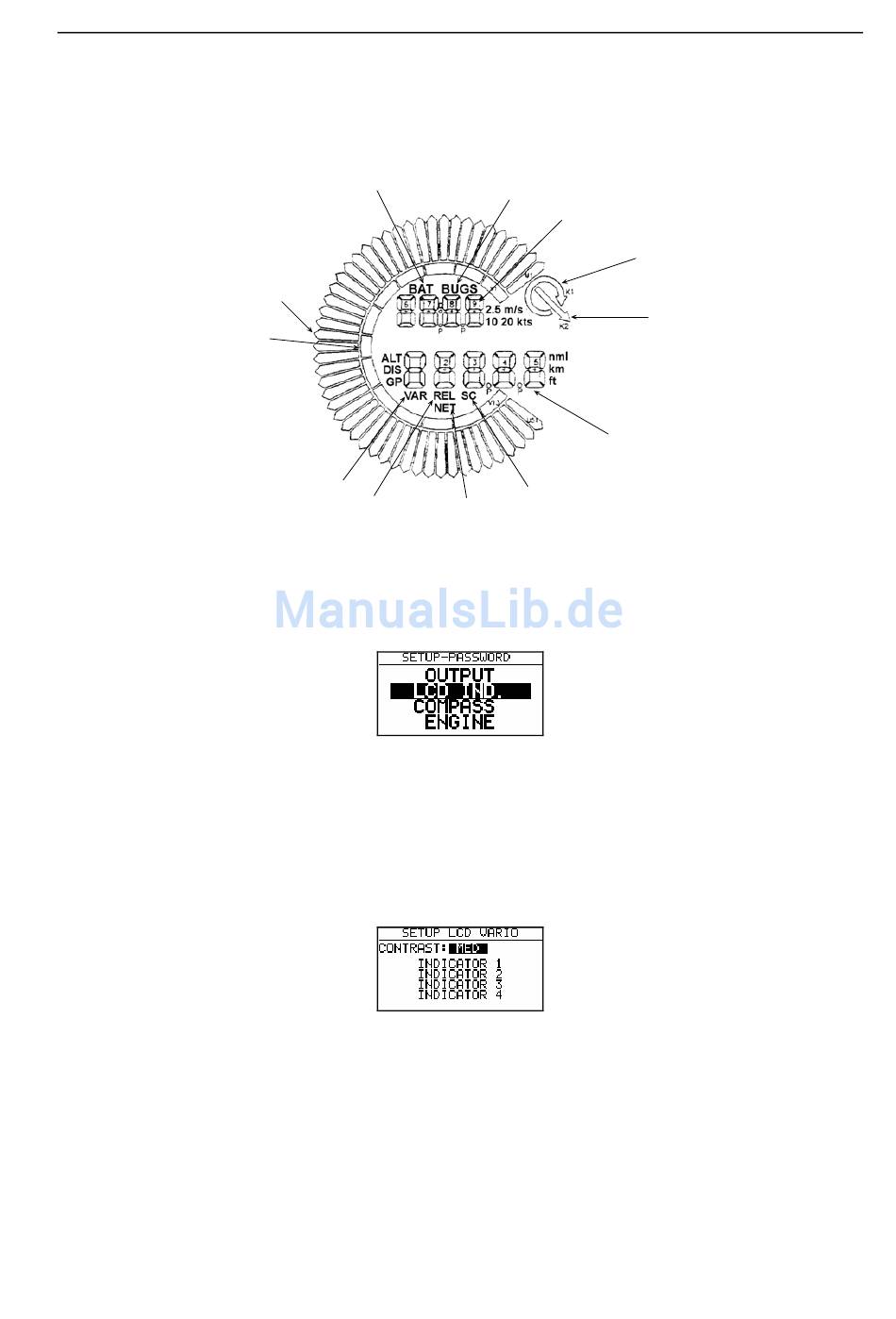

7 LCD INDICATOR FOR LX 5000

SPEED
COMMAND
RING
After password 96990 select item LCD IND. and press enter.
All LCD indicators are connected to the bus, that means all are parallel. To avoid the same indication on all
indicators, use settings described below. LX 5000 supports four independent settings done by pilots. On the
backside of the indicator there is a DIP switch which defines the indicator identification.
After enter on INDICATOR 1 till 4 following settings could be done:
1. needle in vario mode (VARIO, SC, NETTO, RELATIV)
2. needle in speed command mode ( SC, NETTO, RELATIV,VARIO)
3. Upper number in vario mode ( INT,TIME, F.TIME, LEG TI.)
4. Upper number in speed command mode ( INT,TIME, F.TIME, LEG TI.)
5. Lower number in vario mode (ALT., DIST.,GL.DIF.,SPEED,LEG SP.)
6. Lower number in speed command mode (DIST.,GL.DIF.,SPEED,LEG SP.,ALT.)
LOW BATTERY
INDICATOR
NEEDLE
NEEDLE
SHOWS
VARIO NEEDLE
SHOWS
RELATIV
BUGS
INDICATOR
UPPER
NUMBER
DISPLAY
VARIO MODE
INDICATOR
LOWER
NUMBER
DISPLAY
NEEDLE
NEEDLE
SHOWS
SHOWS
SPEED
NETTO
COMMAND
Seite
SPEED COMMAND
MODE INDICATOR
