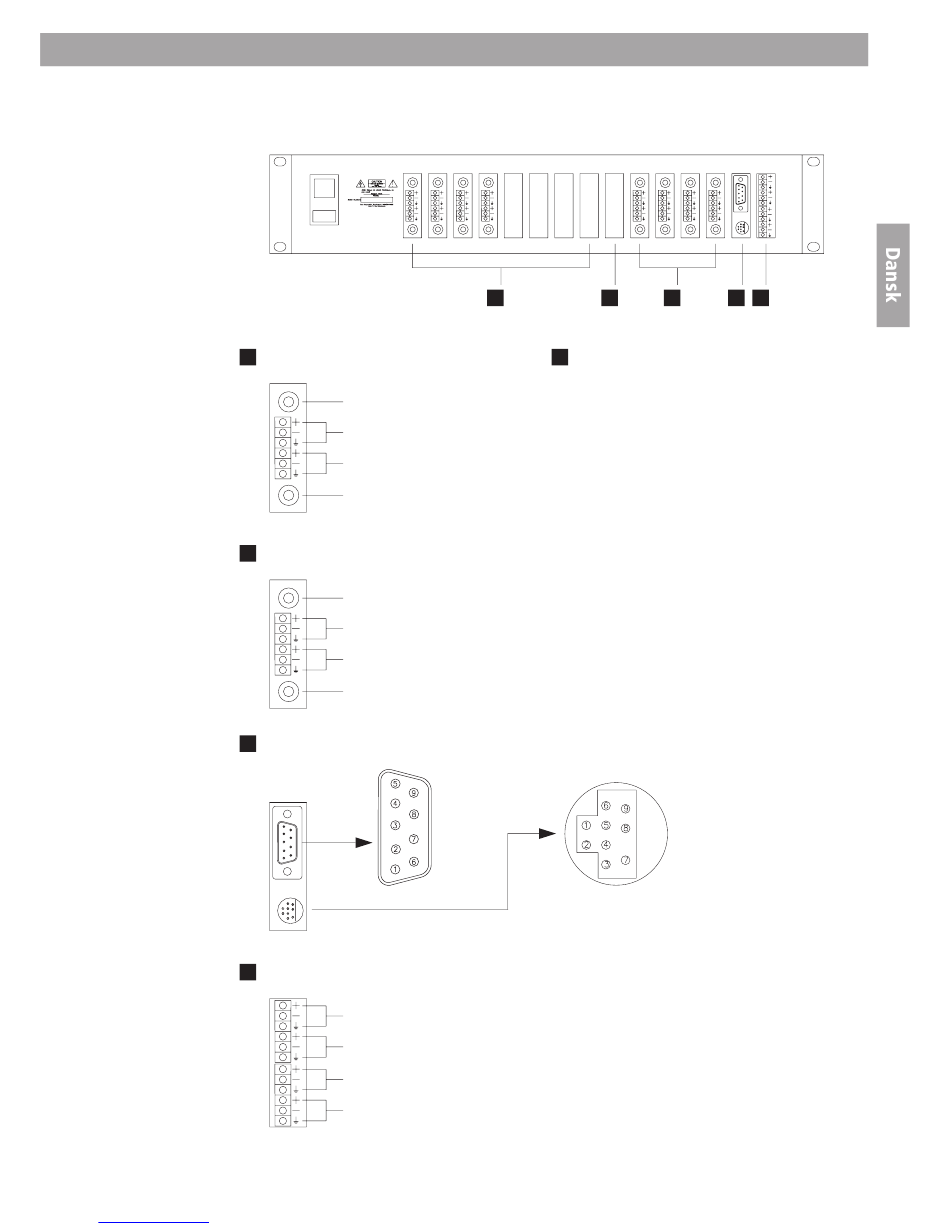

3.2 Bagsiden af ControlSpace
Downloaded from www.Manualslib.com
AMS-8
™
1 Line inputs (1-16)
CS TIC
RCA Input Connector
(Unbalanced line level)
3-pin Input Euro Block Connector
(Balanced line level)
3-pin Input Euro Block Connector
(Balanced line level)
RCA Input Connector
(Unbalanced line level)
3 Line outputs (1-8)
CS TOC
RCA Output Connector
(Unbalanced line level)
3-pin Output Euro Block Connector
(Balanced line level)
3-pin Output Euro Block Connector
(Balanced line level)
RCA Output Connector
(Unbalanced line level)
4 RS232 & GPIO card
DB Female
5 RS485 card
Rack link 1 (high speed)
Rack link 2 (high speed)
CS-WC & CS-PP Bus 1 (low speed)
CS-WC & CS-PP Bus 2 (low speed)
manuals search engine
3. Installation af systemet
1 2
2 Audio Link Card slot
Slot for Audio Link Card to link two ControlSpace
8 Audio Management Systems. Only in the master rack
one Audio Link Card is required. Add one Audio Link
Cable set per four sources to be linked.
RS232 port pin out
Straight shielded cable
(20 metres max.)
2. TX
3. RX
4. GND
3 4 5
AMS-
™
GPIO pinout:
Contact 1: Zone 6
Contact 2: Zone 4
Contact 3: Zone 3
Contact 4: Zone 2
Contact 5: Zone 1
Contact 6: Zone 7
Contact 7: Zone 8
Contact 8: Zone 5
Contact 9: Out
Contact 10: Sleeve/Common
