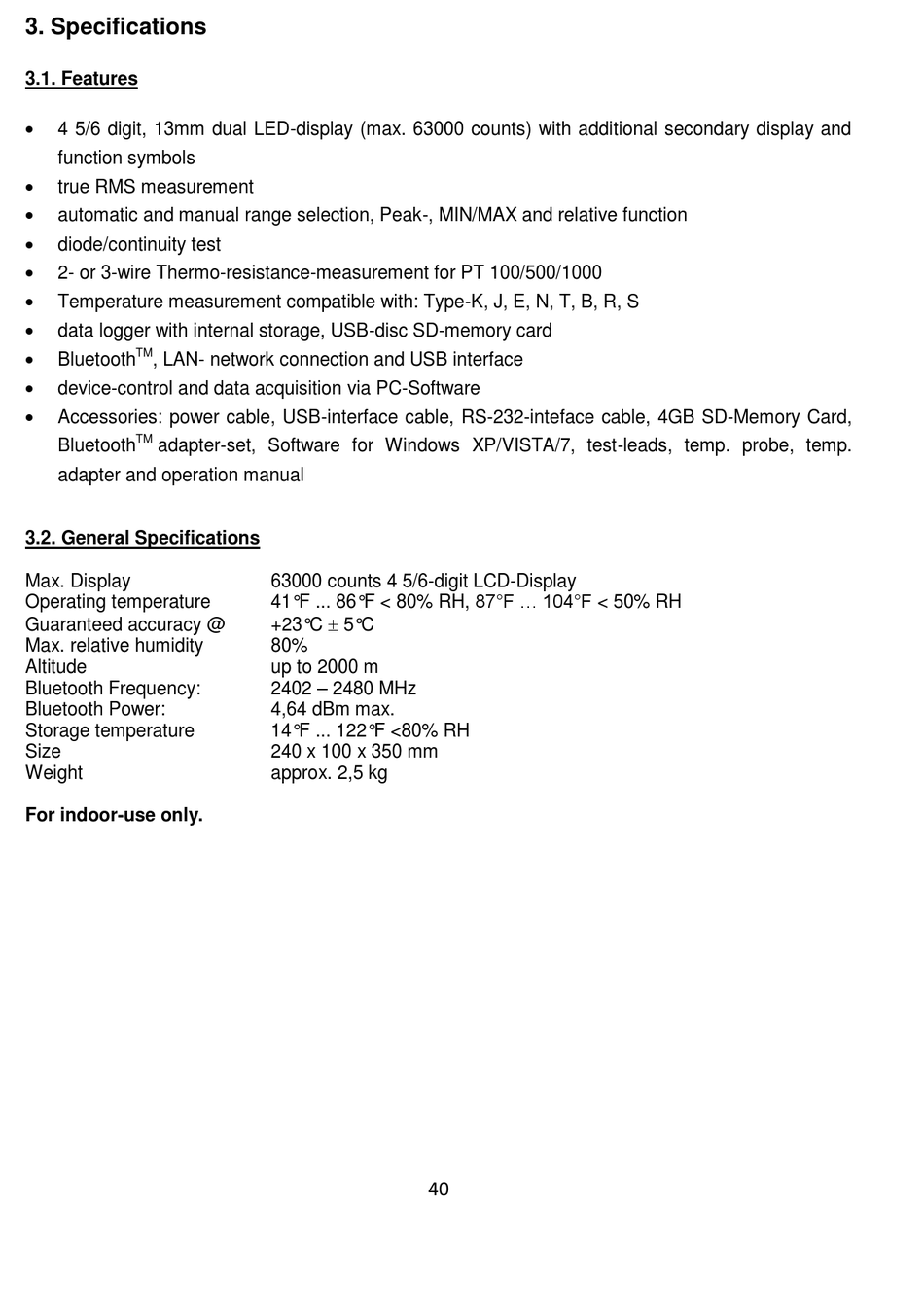

3. Specifications

3.1. Features

4 5/6 digit, 13mm dual LED-display (max. 63000 counts) with additional secondary display and
function symbols

true RMS measurement

automatic and manual range selection, Peak-, MIN/MAX and relative function

diode/continuity test

2- or 3-wire Thermo-resistance-measurement for PT 100/500/1000

Temperature measurement compatible with: Type-K, J, E, N, T, B, R, S

data logger with internal storage, USB-disc SD-memory card

TM
Bluetooth , LAN- network connection and USB interface

device-control and data acquisition via PC-Software

Accessories: power cable, USB-interface cable, RS-232-inteface cable, 4GB SD-Memory Card,
TM
Bluetooth adapter-set, Software for Windows XP/VISTA/7, test-leads, temp. probe, temp.
adapter and operation manual
3.2. General Specifications
Max. Display
Operating temperature
Guaranteed accuracy @
Max. relative humidity
Altitude
Bluetooth Frequency:
Bluetooth Power:
Storage temperature
Size
Weight
For indoor-use only.
63000 counts 4 5/6-digit LCD-Display
41°F ... 86°F < 80% RH, 87°F ... 104°F < 50% RH
+23°C  5°C
80%
up to 2000 m
2402 – 2480 MHz
4,64 dBm max.
14°F ... 122°F <80% RH
240 x 100 x 350 mm
approx. 2,5 kg
40
