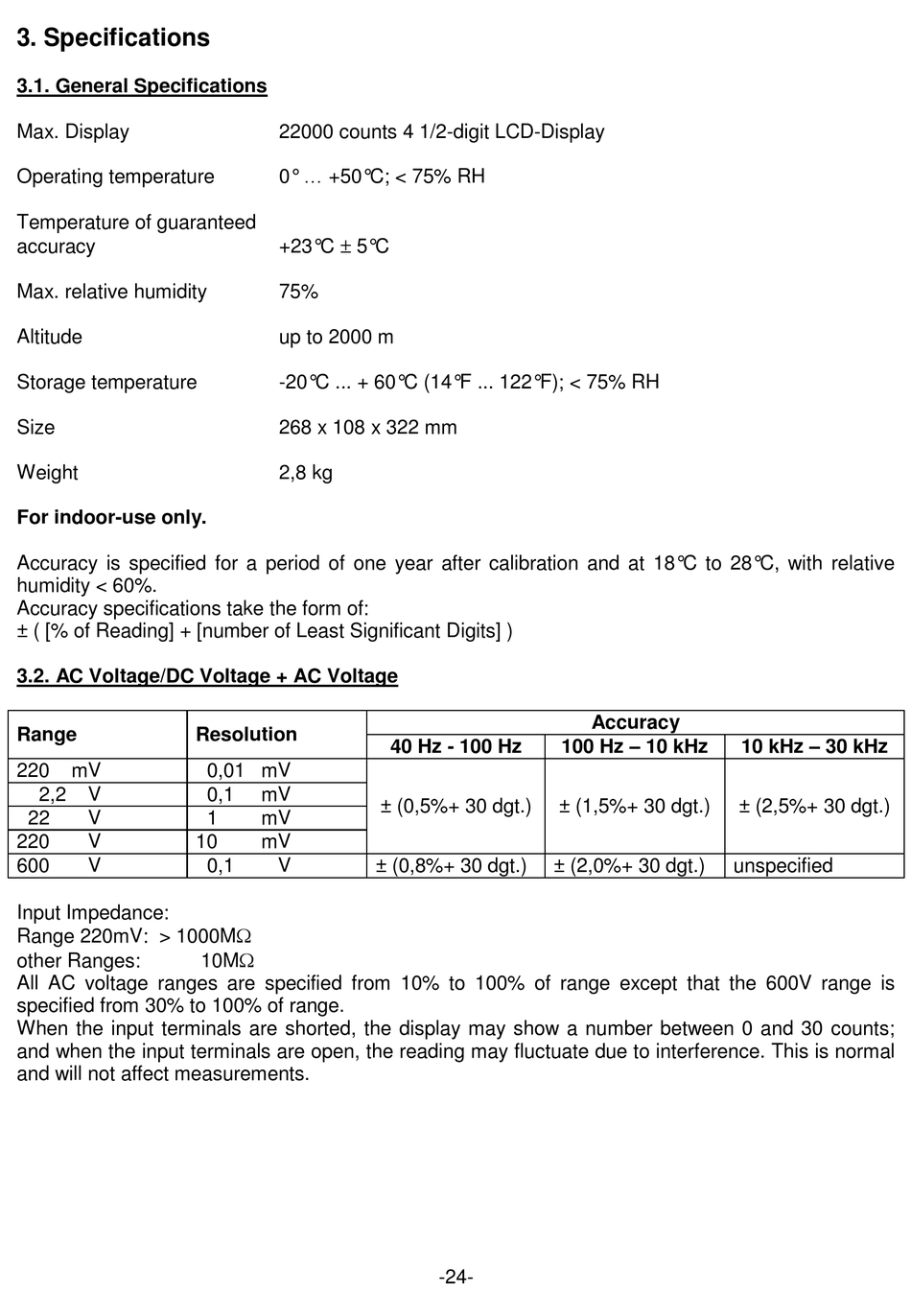

3. Specifications

3.1. General Specifications
Max. Display
Operating temperature
Temperature of guaranteed
accuracy
Max. relative humidity
Altitude
Storage temperature
Size
Weight
For indoor-use only.
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C, with relative
humidity < 60%.
Accuracy specifications take the form of:
± ( [% of Reading] + [number of Least Significant Digits] )
3.2. AC Voltage/DC Voltage + AC Voltage
Range
220 mV
2,2 V
22 V
220 V
600 V
Input Impedance:
Range 220mV: > 1000M
other Ranges:
All AC voltage ranges are specified from 10% to 100% of range except that the 600V range is
specified from 30% to 100% of range.
When the input terminals are shorted, the display may show a number between 0 and 30 counts;
and when the input terminals are open, the reading may fluctuate due to interference. This is normal
and will not affect measurements.
22000 counts 4 1/2-digit LCD-Display
0° ... +50°C; < 75% RH
+23°C  5°C
75%
up to 2000 m
-20°C ... + 60°C (14°F ... 122°F); < 75% RH
268 x 108 x 322 mm
2,8 kg
Resolution
0,01 mV
0,1 mV
1 mV
10 mV
0,1 V
10M
40 Hz - 100 Hz
± (0,5%+ 30 dgt.)
± (0,8%+ 30 dgt.)
-24-
Accuracy
100 Hz – 10 kHz
± (1,5%+ 30 dgt.)
± (2,0%+ 30 dgt.)
10 kHz – 30 kHz
± (2,5%+ 30 dgt.)
unspecified
