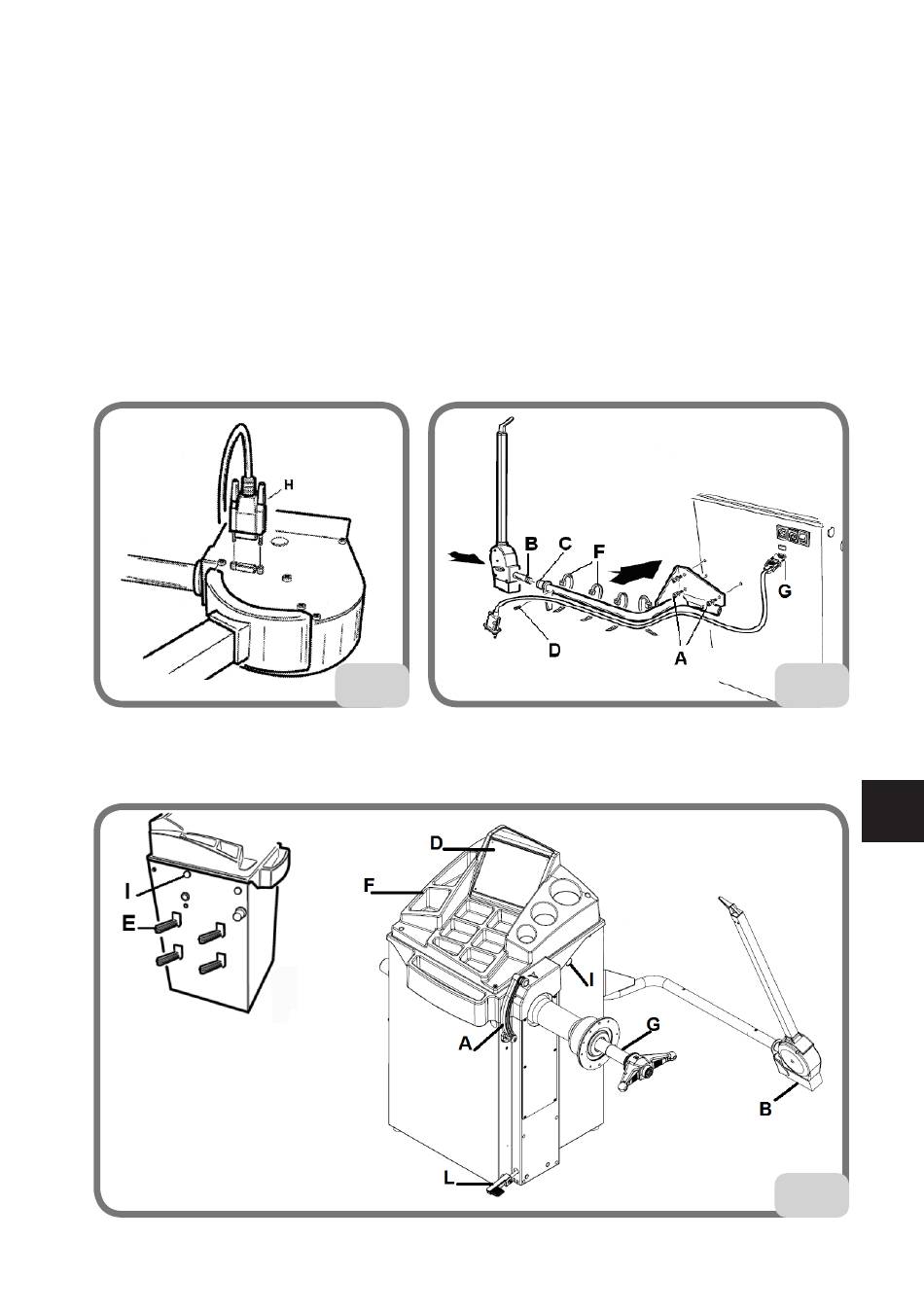

Fitting the external mechanical sensor and relative support
(if available)
- Fasten the external sensor support to the wheel balancer body using the three screws
supplied with the machine (A, fig.5b);
- Insert the external sensor pin (B, fig.5b) in the sensor support bush (C, fig.5b);
- Screw the screw (D, fig.5b) bringing it closer to the sensor pin without touching it;
- Make sure that the external sensor rotates freely;
- Connect one of the sensor's cable connectors to the socket located on the sensor body
(H, fig. 5a);
- Tape the cable to the sensor support (F, fig. 5b) so that it is never tensioned;
- Connect the sensor cable connector to the machine's rear panel (G, fig.5b).
IMPORTANT: after installing the external sensor, calibrate the sensor as described in
the paragraph "Width sensor calibration".
5a 5b
Main working parts (Fig. 8)
UK
8
EM 9250 CompactLine Operator's manual 71
