Commissioning
5 Commissioning
5.1 Device description file
The XML file contains all information on the measuring system-specific parameters
and the operating modes of the measuring system. The XML file is integrated by the
EtherCAT network configuration tool, in order to enable correct configuration and
commissioning of the measuring system.
Download:
5.2 Bus status display
The EtherCAT measuring system is equipped with three diagnostic LEDs.

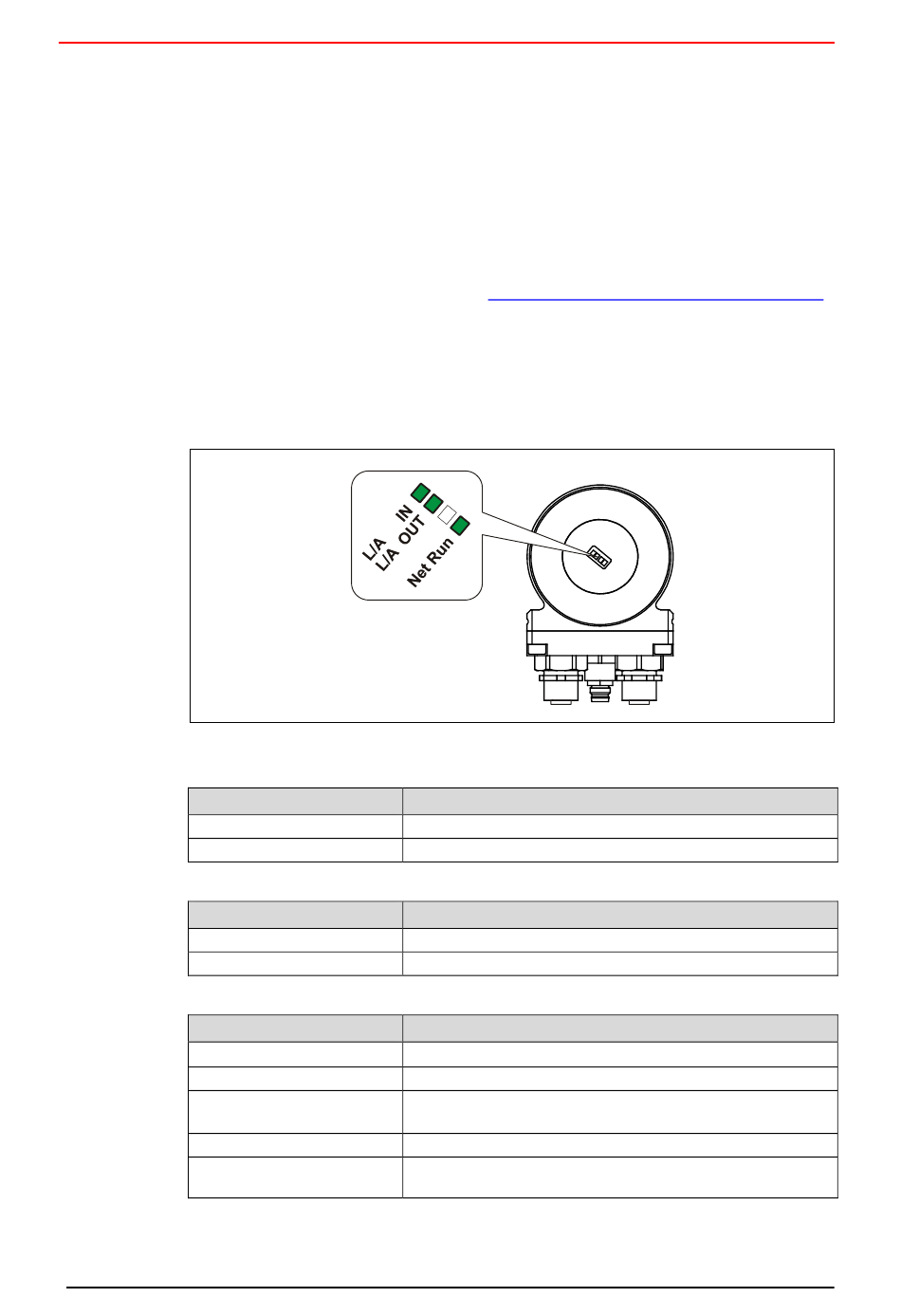

Figure 9: EtherCAT diagnostic LEDs
Link / Activity IN - LED
ON
Flickering = Data Activity Data transfer RxD
Link / Activity OUT - LED Description
ON
Flickering = Data Activity Data transfer TxD
Net Run - LED
OFF
Blinking, 2.5 Hz
Single Flash,
200 ms ON / 1000 ms OFF
ON
Flickering, 10 Hz
For appropriate measures in case of error see chapter "Optical displays" page 111.
