Exploded View Parts Listings

# Item Description
1 EFLH1150 . . . . . . Flybar Paddle
2 EFLH1165 . . . . . . Flybar Weight 1.6 x 6 x 5mm
3 EFLH1148 . . . . . . Flybar Retaining Collar
3 x 7 x 5mm
4 EFLH1149 . . . . . . Flybar 1.5 x 200mm
5 EFLH1148 . . . . . . Paddle Control Frame
6 EFLH1146 . . . . . . Rotor Head Frame B
7 EFLH1512 . . . . . . Center Hub Cap
8 EFLH1146 . . . . . . Rotor Head Frame A
9 EFLH1146 . . . . . . Rotor Head
10 EFLH1512 . . . . . . Center Hub
11 EFLH1513 . . . . . . O-Ring 2 x 6mm
12 EFLH1151 . . . . . . Pitch Control Link
13 EFLH1151 . . . . . . Pitch Control Rod 1.4 x 10mm
14 EFLH1523 . . . . . . Spindle
15 EFLH1163 . . . . . . Paddle Control Frame Pushrod
16 EFLH1512 . . . . . . Socket Head Cap Screw 2 x 9mm
17 EFLH1513 . . . . . . Shim 3.1 x 5.6 x 0.1mm
17 EFLH1172 . . . . . . Shim 3.1 x 5.6 x 0.1mm
18 EFLH1171 . . . . . . Step Washer 3.1 x 5.5 x 0.5mm
19 EFLH1150 . . . . . . Pan Head Screw 2 x 6mm
20 EFLH1514 . . . . . . Setscrew 3 x 3mm
21 EFLH1514 . . . . . . Nut 2mm
22 EFLH1514 . . . . . . Pan Head Screw 2.6 x 6mm
23 EFLH1115 . . . . . . Bearing 3x 6 x 2.5mm
24 EFLH1514 . . . . . . Pan Head Screw 1.4 x 3mm
25 EFLH1171 . . . . . . Brass Spacer 3.1 x 4 x 3.1mm
26 EFLH1172 . . . . . . Bell Mixer Arm Pushrod
27 EFLH1171 . . . . . . Blade Grip
28 EFLH1514 . . . . . . Socket Head Cap Screw 2 x 12mm
29 EFLH1518 . . . . . . Blades
30 EFLH1514 . . . . . . Flat Washer 2.2 x 5 x 0.5mm
31 EFLH1514 . . . . . . Socket Head Cap Screw 2 x 6mm
32 EFLH1172 . . . . . . Bell Mixer Arm
33 EFLH1172 . . . . . . B/M Arm Bushing 2.9 x 3.4 x 7mm
34 EFLH1514 . . . . . . Washer- Special 1.8 x 5.2 x 0.1mm
35 EFLH1514 . . . . . . Pan Head Screw 1.7 x 4mm
36 EFLH1511 . . . . . . Swashplate
37 EFLH1508 . . . . . . Main Shaft 4 x 79mm
38 EFLH1510 . . . . . . Main Shaft Collar
39 EFLH1515 . . . . . . Servo Pushrod 1.6 x 16mm
40 EFLH1515 . . . . . . Servo Pushrod Link
41 EFLH1515 . . . . . . Servo Pushrod 1.6 x 28mm
42 EFLH1215 . . . . . . Main Shaft Brg 4 x 8 x 3mm
43 EFLH1509 . . . . . . Main Gear 140T
44 EFLH1501 . . . . . . Right Frame
45 EFLH1501 . . . . . . Left Frame
46 EFLH1514 . . . . . . Pan Head Screw 1.7 x 6mm
47 EFLH1514 . . . . . . Socket Head Cap Screw 2 x 10mm
48 EFLH1524 . . . . . . Anti-Rotation Bracket
49 EFLH1522 . . . . . . Canopy Mount Rod 2 x 30mm
50 EFLH1522 . . . . . . Canopy Mount Ends
51 EFLH1502 . . . . . . Landing Gear Asm
52 EFLH1514 . . . . . . Pan Head Screws 1.6 x 6mm
Downloaded from www.Manualslib.com
# Item Description
53 EFLH1409 . . . . . . Pinion 9T
54 EFLH1514 . . . . . . Pan Head Screw 3 x 6mm
55 EFLH1517 . . . . . . Motor Mount
56 EFLH1516 . . . . . . Brushless Motor
57 EFLH1514 . . . . . . Pan Head Screw 2 x 6mm
58 EFLH1503 . . . . . . Tail Boom Blue 7x 8 x 271mm
59 EFLH1507 . . . . . . Tail Motor Wire Lead
60 EFLH1506 . . . . . . Lower Horz. Fin Mount
61 EFLH1506 . . . . . . Upper Horz. Fin Mount
62 EFLH1326W . . . . . Horizontal Fin
63 EFLH1326W . . . . . Vert Fin
64 EFLH1505 . . . . . . Tail Motor Mount
65 EFLH1514 . . . . . . Flat Washer 2 x 4 x 0.4mm
66 EFLH1514 . . . . . . Pan Head Screw 1.6 x 3mm
67 EFLH1323 . . . . . . Tail Rotor Adapter
68 EFLH1324 . . . . . . Tail Rotor Blade
69 EFLH1514 . . . . . . Flat Washer-Special 2 x 8 x 1.2mm
70 EFLH1322 . . . . . . Tail Motor
71 EFLH1319 . . . . . . Tail Motor Heat Sink
72 EFLDS75H . . . . . . Servos
73 EFLH1515 . . . . . . Control Ball
74 EFLH1514 . . . . . . Flat Head CS Screw
75 EFLH1514 . . . . . . Nylock Nut 2mm
76 EFLRG110HL . . . . Gyro
77 EFLA308H . . . . . . ESC
78 EFLH1514 . . . . . . Hook & Loop Strap
79 EFLH0997 . . . . . . 1000mAh 3-Cell Li-Po Battery
80 EFLH1520 . . . . . . Canopy
81 SPMAR6110E . . . Receiver
82 EFLH1519 . . . . . . Blade Holder
83 EFLH1522 . . . . . . Canopy Grommet
40
manuals search engine

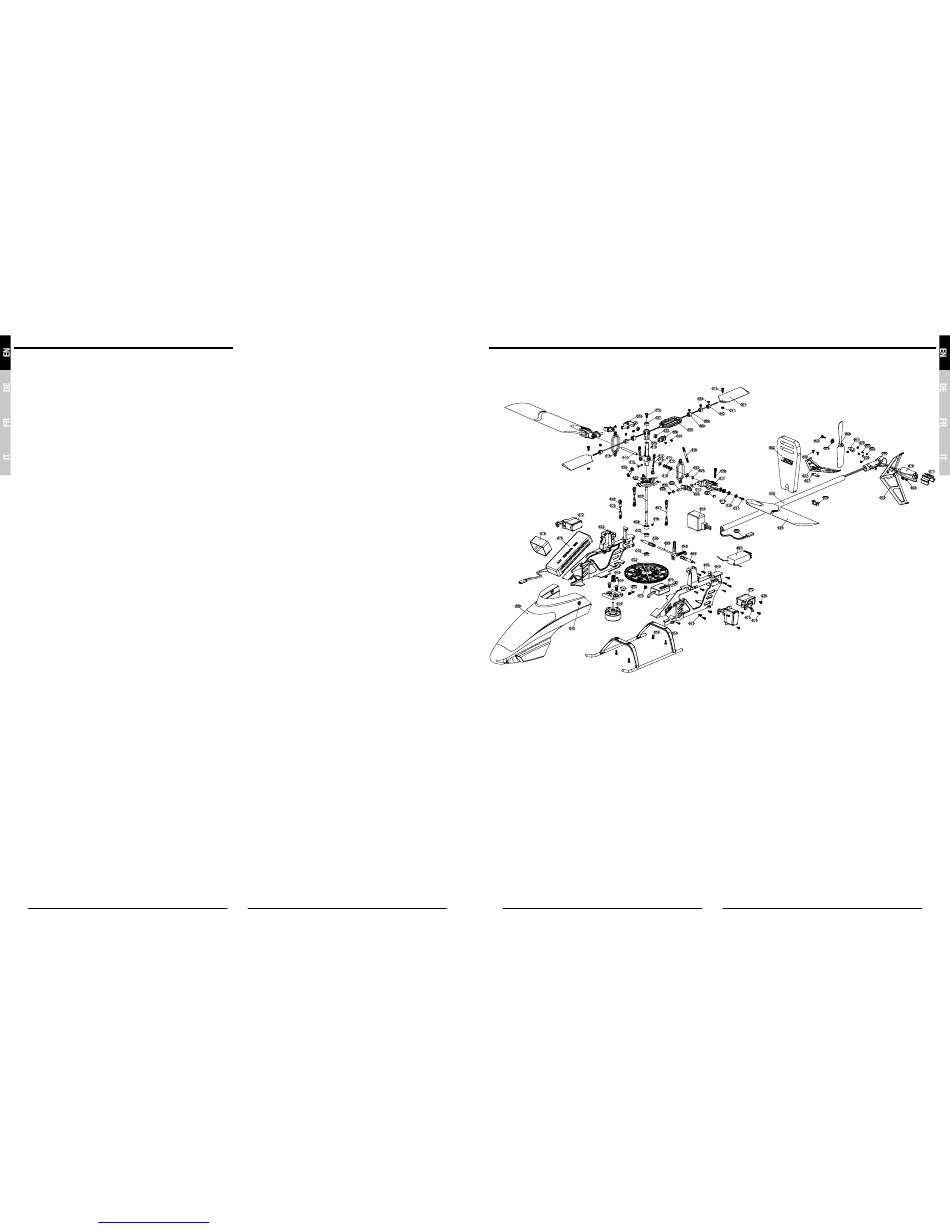

Exploded View
