Important
Those authorised to carry out the connection
operation must have experience acquired
and certifi ed in the specifi c sector, in accord-
ance with current legislation in the appli-
ance's installation country.
The connection must make to the proper
standards and must comply with all the rel-
evant regulations and legislation.
The appliance is supplied with operating vol-
tage 400V/3N or 230V3 (on request) (only for
1*1TPEE model). Specify the correct voltage for
your device; it cannot be modifi ed after pur-
chase.
For direct connection to the mains one must en-
visage a device that ensures disconnection from
the mains, with a contacts opening distance that
ensures complete disconnection in the conditions
of category III over-tension, in compliance with the
installation rules.
Caution - Warning
Before doing any work, cut off the mains
electricity supply.
A
GB
3326541_inst_GB

ELECTRICAL CONNECTION

C
E
B
D
B
- 10 -

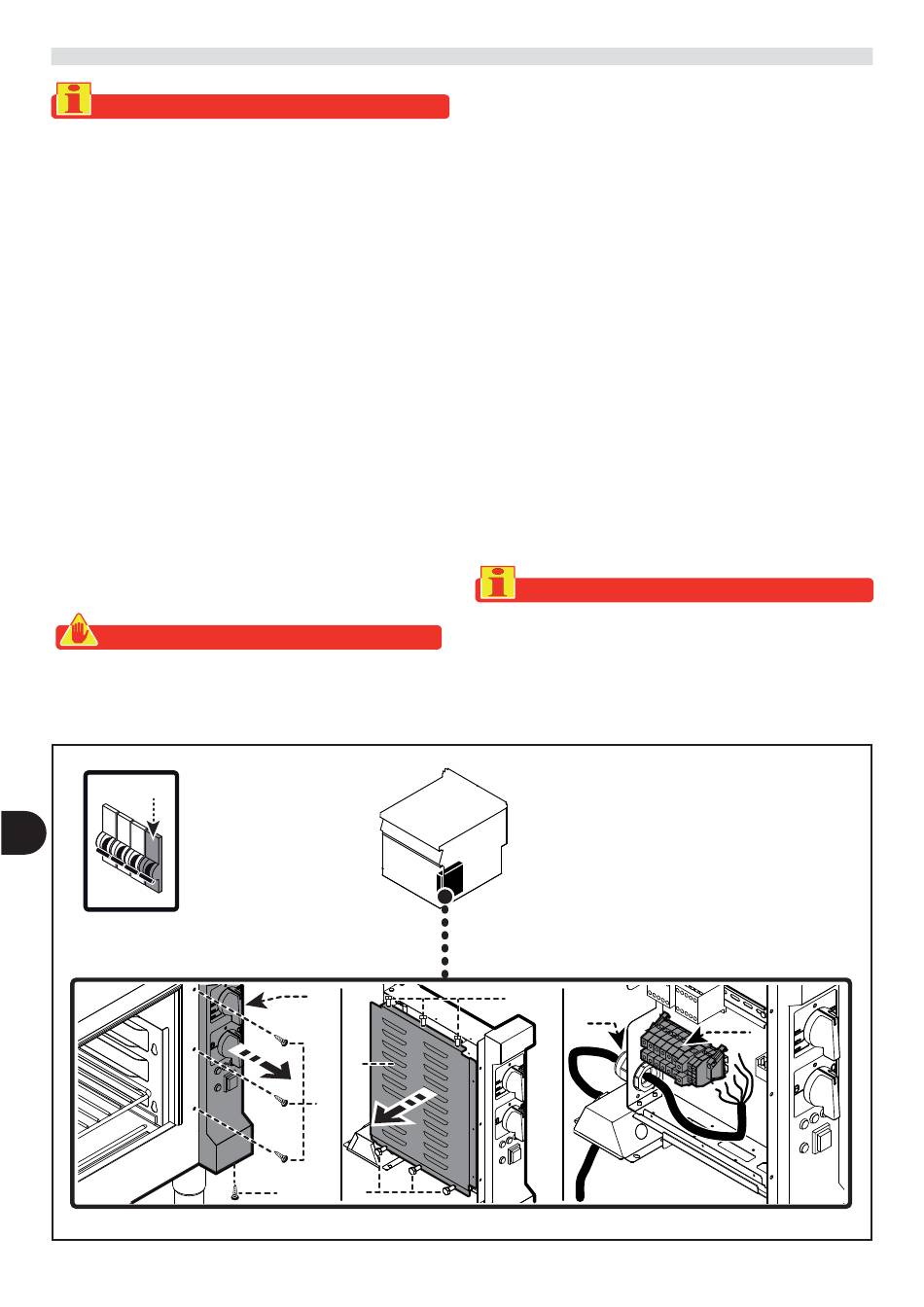

Connect the appliance to the mains electricity
supply as follows:
If not already present, install an automatic
1)
circuit-breaker (A), close to the appliance, with
the following characteristics:
– Thermal breaker device (to adjust see annexes
table).
– Magnetic circuit breaker curve B (IEC 60898-1)..
– Residual current protection set at 30 mA.
Undo the screws (B) to remove the guard (C).
2)
Undo the screws (D) to remove the control
3)
pan (E)
.
Connect the circuit-breaker (A) to the terminal
4)
board (F) of the appliance as shown in the
diagram and in the electrical system diagram
at the back of the manual and using a cable
with the following characteristics:
– Weight: ≥ than H05RN-F type (designation 245
IEC 57).
– Temperature of use: ≥ 70°C.
Important
When connecting, take care to connect the
neutral and earth lines.
Tighten the cable gland (G).
5)
Replace all on completion of the operation.
6)
D
G
F
