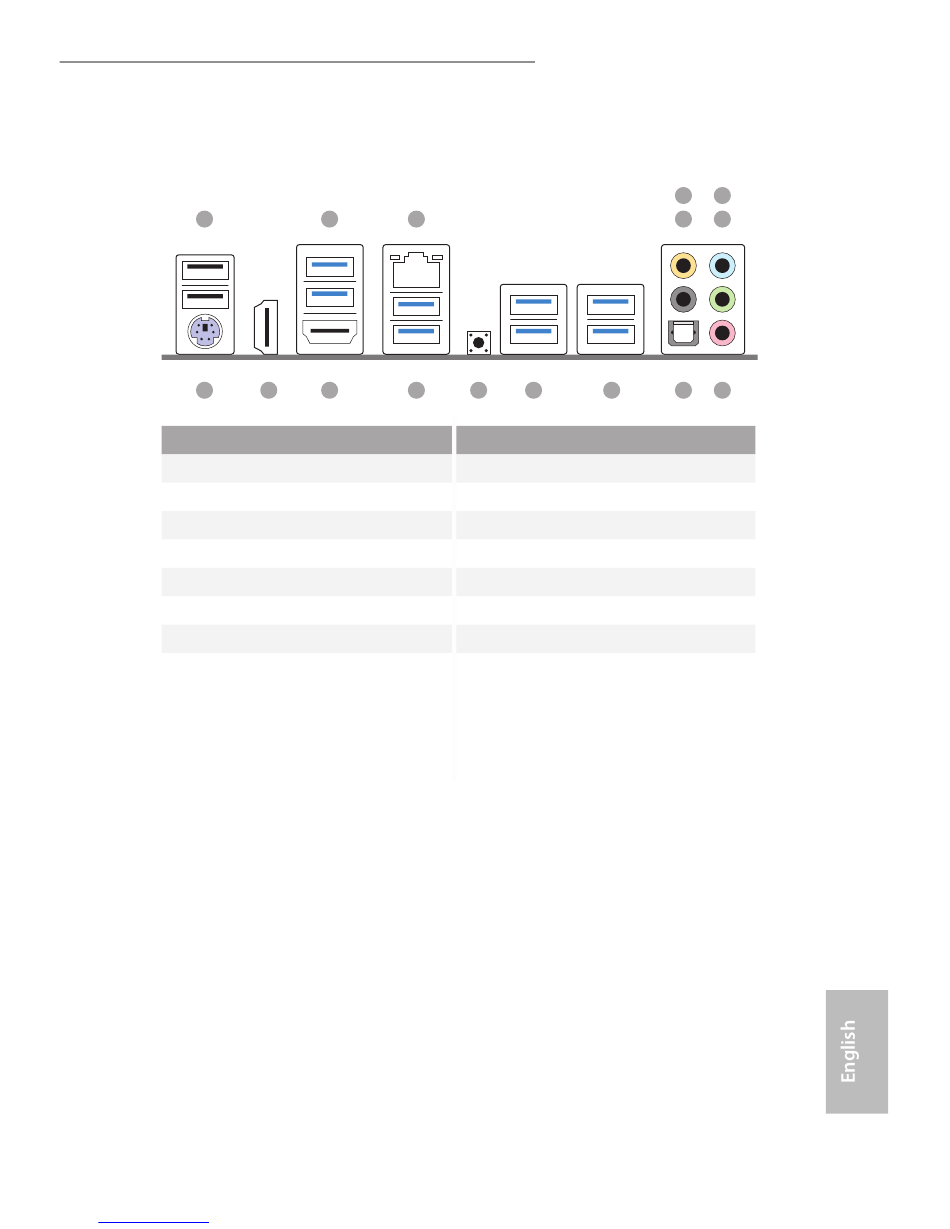

1.5 I/O Panel
No. Description
1
2
3
4
5
6
7
8
Downloaded from www.Manualslib.com
1 2
16 15 14
USB 2.0 Ports (USB01)
USB 3.0 Ports (USB3_01)
LAN RJ-45 Port
Central / Bass (Orange)
Rear Speaker (Black)
Line In (Light Blue)
Front Speaker (Lime)**
Microphone (Pink)
manuals search engine
Z87 OC Formula/ac / Z87 OC Formula
3
13 12 11
No. Description
9 Optical SPDIF Out Port
10 USB 3.0 Ports (USB3_67)
11 USB 3.0 Ports (USB3_45)
12 Clear CMOS Switch (CLRCBTN)
13 USB 3.0 Ports (USB3_23)
14 HDMI-Out Port
15 HDMI-In Port
16 PS/2 Mouse/Keyboard Port
4 6
5 7
10 9 8
