TM

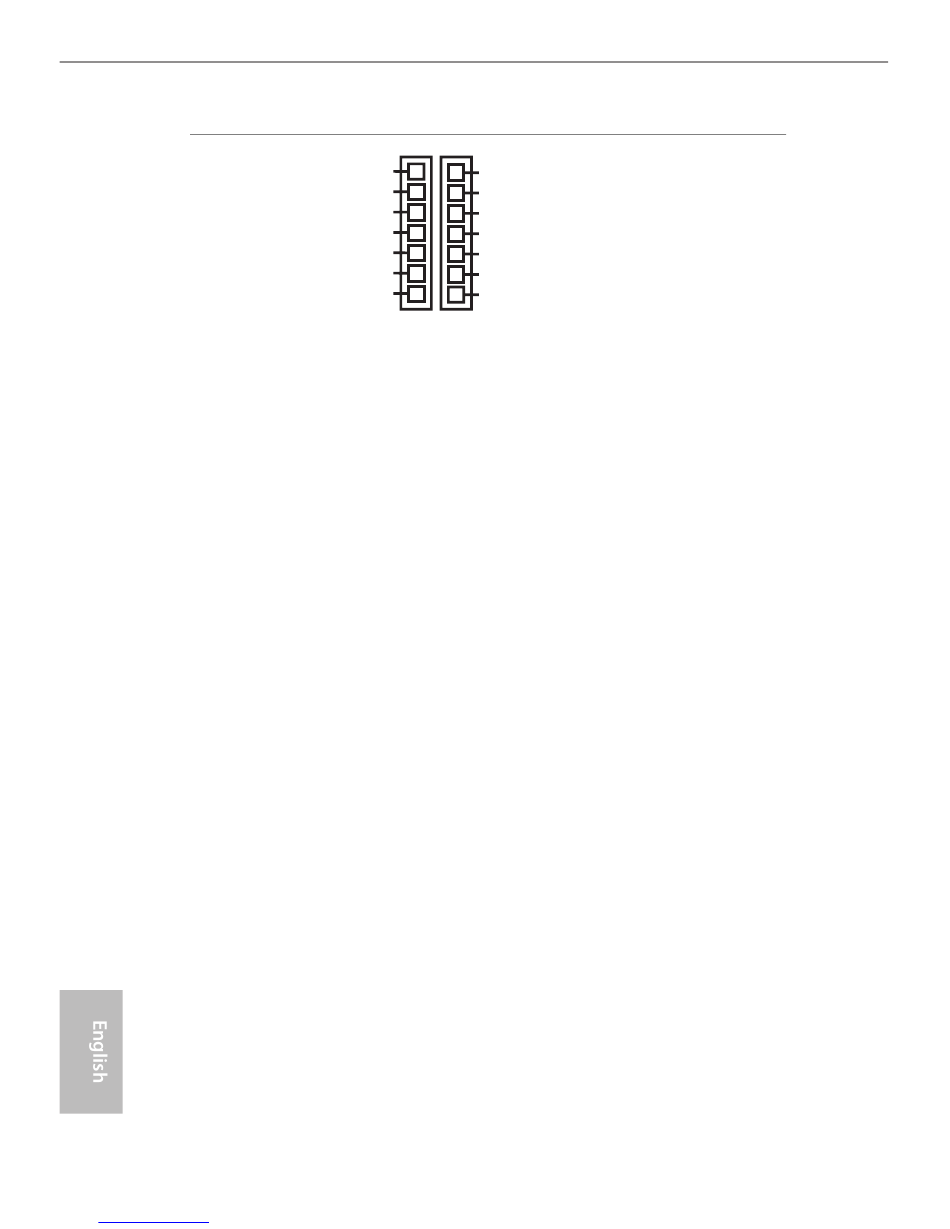

V-Probe
GFX
(7-pin VOL_
SA
CON1, 7-pin VOL_
RING
CON2)
VCOMP
(see p.1 or 2, No.
CORE0
11)
GND
manuals search engine
IO PCH_IREF
VCOMP2
1.5VPCH
1.05PCH
VCCM
VCCin
GND
Users are able to measure
onboard components
voltage.
PCH_IREF:
PCH1.5V IREF voltage
VCOMP2:
CPU 2nd COMP voltage
1.5VPCH:
PCH 1.5V voltage
1.05PCH:
PCH 1.05V voltage
VCCM:
DRAM voltage
VCC-in:
CPU input voltage
IO:
CPU IO voltage
GFX:
CPU GFX (Graphics)
voltage
SA:
CPU system agent voltage
RING:
CPU Ring (cache) voltage
VCOMP:
CPU COMP voltage
CORE0:
CPU CORE0 voltage
