Softing Industrial Automation GmbH
Implementierte Protokolle im echolink one
8.8.3.6

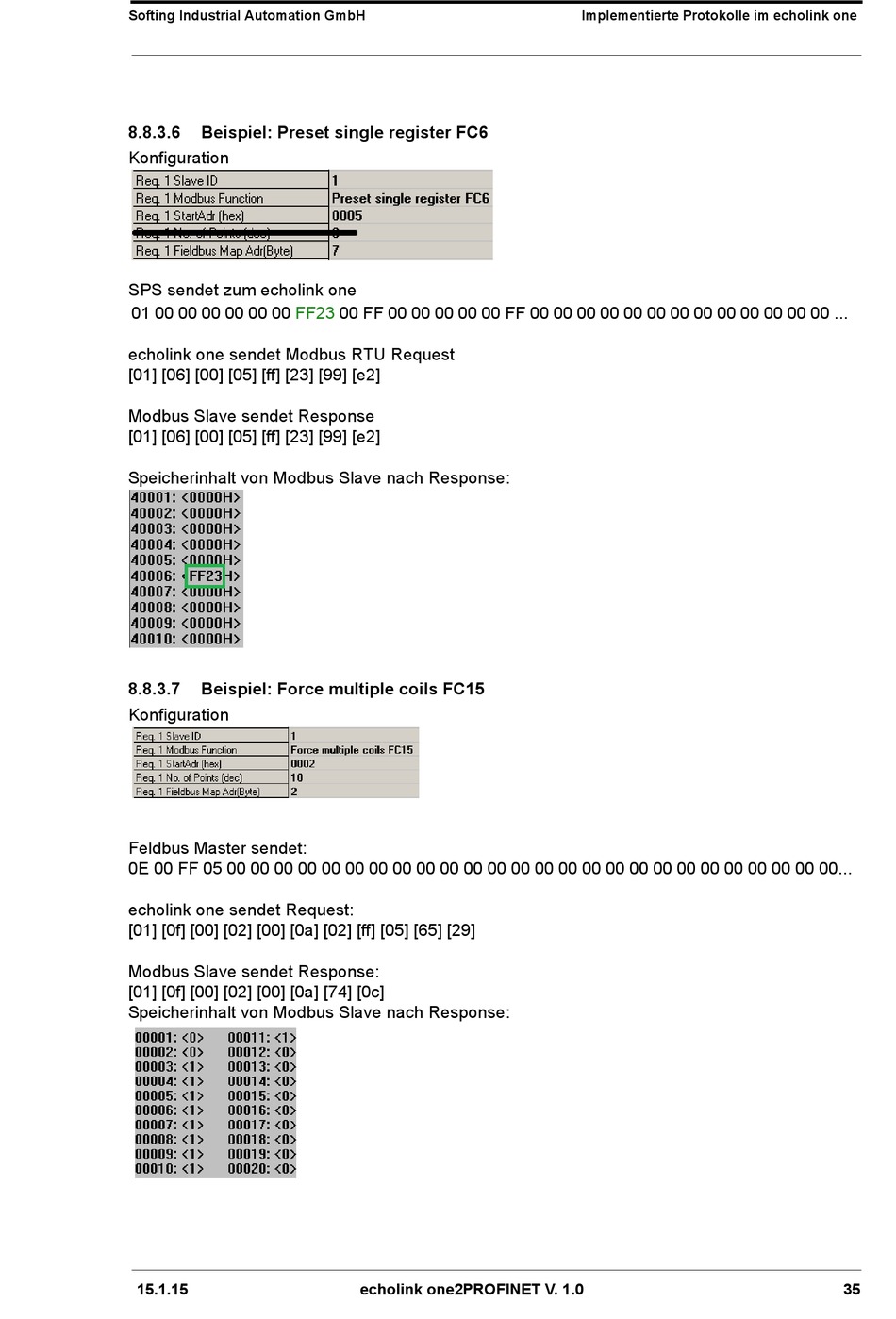

Beispiel: Preset single register FC6

Konfiguration
SPS sendet zum echolink one
00 FF 00 00 00 00 00 FF 00 00 00 00 00 00 00 00 00 00 00 00 00 ... 
01 00 00 00 00 00 00
FF23
echolink one sendet Modbus RTU Request
[01] [06] [00] [05] [ff] [23] [99] [e2] 
Modbus Slave sendet Response
[01] [06] [00] [05] [ff] [23] [99] [e2] 
Speicherinhalt von Modbus Slave nach Response:
8.8.3.7

Beispiel: Force multiple coils FC15

Konfiguration
Feldbus Master sendet:
0E 00 FF 05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00...
echolink one sendet Request:
[01] [0f] [00] [02] [00] [0a] [02] [ff] [05] [65] [29]
Modbus Slave sendet Response:
[01] [0f] [00] [02] [00] [0a] [74] [0c]
Speicherinhalt von Modbus Slave nach Response:
15.1.15
echolink one2PROFINET V. 1.0
35
