4 - PRODUCT INSTALLATION

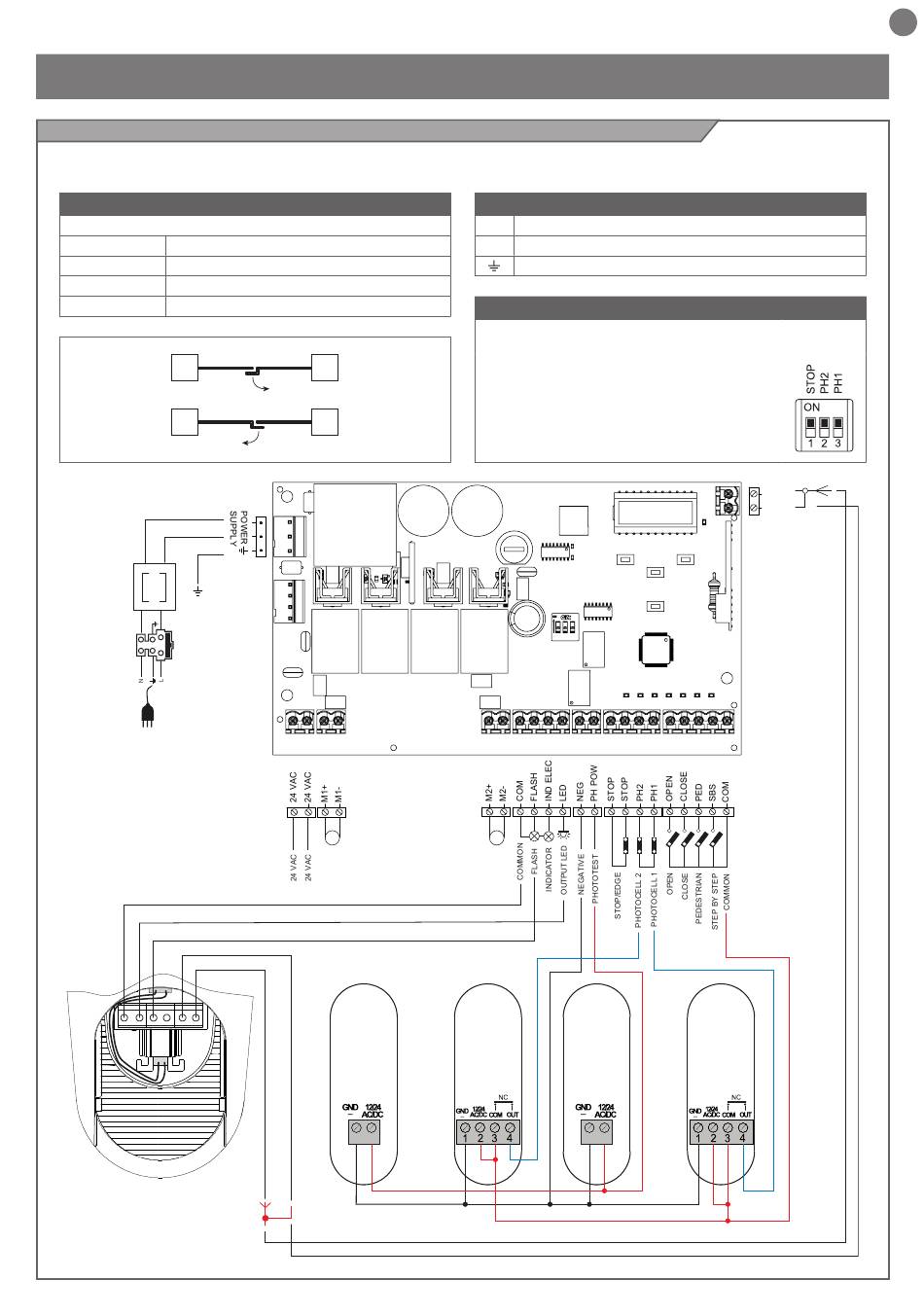

4.1 - Electrical connections

WARNING - Before making the connections, ensure that the control unit is not powered up.
MOTOR CONNECTION
Power supply connection terminal board
M1 + Power supply of motor M1 +
M1 - Power supply of motor M1 -
M2 + Power supply of motor M2 +
M2 - Power supply of motor M2 -
M2
M1
BATTERY
230Vac
50/60Hz
T1,6A
COM
LED
FLASH
M1
M2
M1
PH2
TX
1 2
POWER SUPPLY CONNECTOR
L Power supply live 230 Vac (120 Vac) 50-60 Hz
N Power supply neutral 230 Vac (120 Vac) 50-60 Hz
Earth
DIP SWITCH
Set on "ON" to disable inputs STOP, PH1, PH2
Eliminates the need to bridge the terminal board inputs.
WARNING - with the dip switch ON, the safety
devices are disabled
UP
+
MENU
SBS
M2
PH2 PH1
RX TX
1 2
ANT
SHIELD
DOWN
(RADIO)
-
PH1
RX
EN
23
