EN

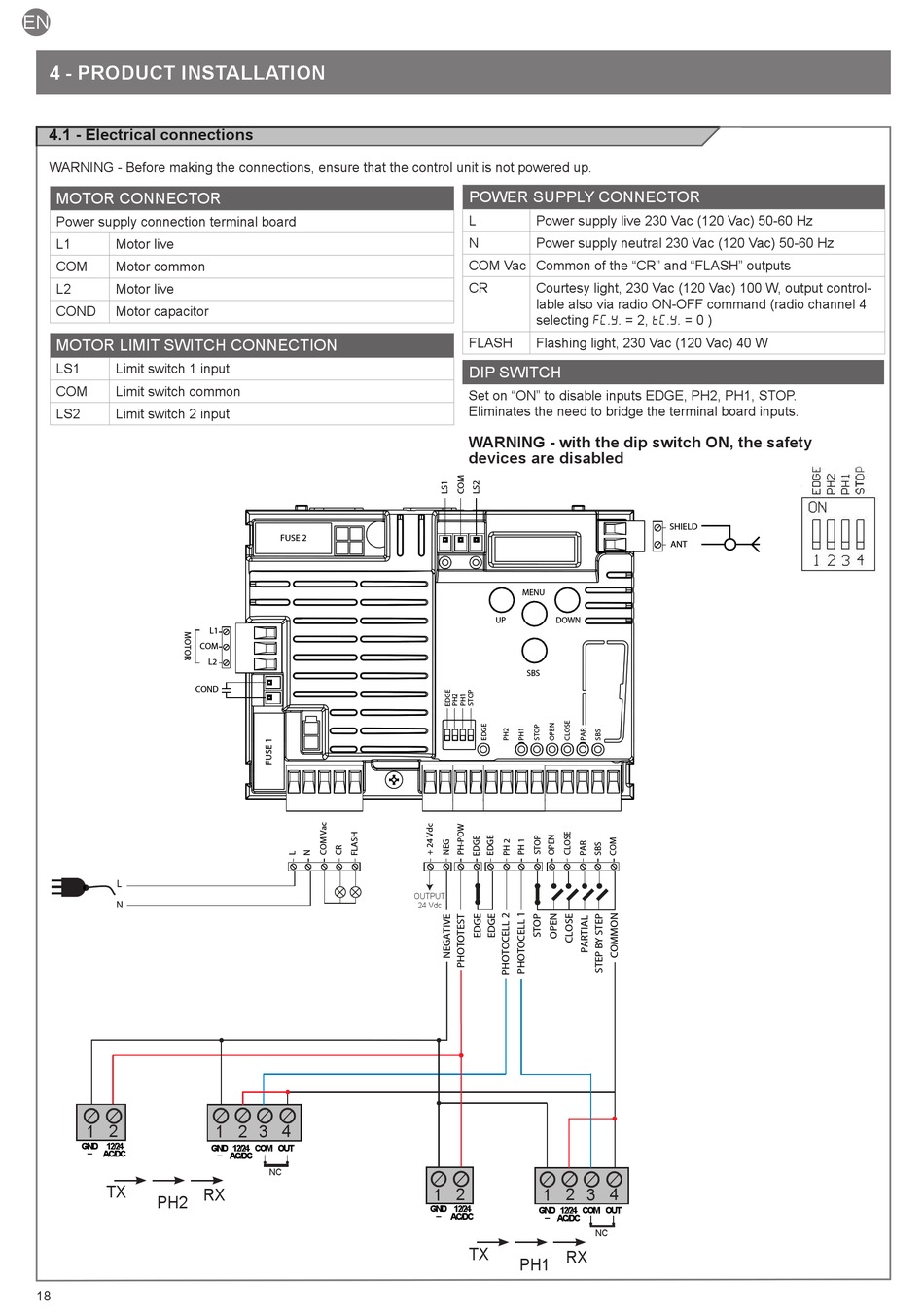

4 - PRODUCT INSTALLATION

4.1 - Electrical connections
WARNING - Before making the connections, ensure that the control unit is not powered up.
MOTOR CONNECTOR
Power supply connection terminal board
L1 Motor live
COM Motor common
L2 Motor live
COND Motor capacitor
MOTOR LIMIT SWITCH CONNECTION
LS1 Limit switch 1 input
COM Limit switch common
LS2 Limit switch 2 input
COND
L
N
2
1
GND 12/24
_
AC/DC
TX
PH2
18
FUSE 2
L1
COM
L2
1 2 3 4
COM OUT
GND 12/24
_
AC/DC
NC
RX
POWER SUPPLY CONNECTOR
L Power supply live 230 Vac (120 Vac) 50-60 Hz
N Power supply neutral 230 Vac (120 Vac) 50-60 Hz
COM Vac Common of the "CR" and "FLASH" outputs
CR Courtesy light, 230 Vac (120 Vac) 100 W, output control-
lable also via radio ON-OFF command (radio channel 4
selecting fC.y. = 2, tC.y. = 0 )
FLASH Flashing light, 230 Vac (120 Vac) 40 W
DIP SWITCH
Set on "ON" to disable inputs EDGE, PH2, PH1, STOP.
Eliminates the need to bridge the terminal board inputs.
WARNING - with the dip switch ON, the safety
devices are disabled
MENU
UP DOWN
SBS
OUTPUT
24 Vdc
1 2 1 2 3 4
GND 12/24
COM OUT
GND 12/24
_
_
AC/DC
AC/DC
TX
RX
PH1
SHIELD
ANT
NC
