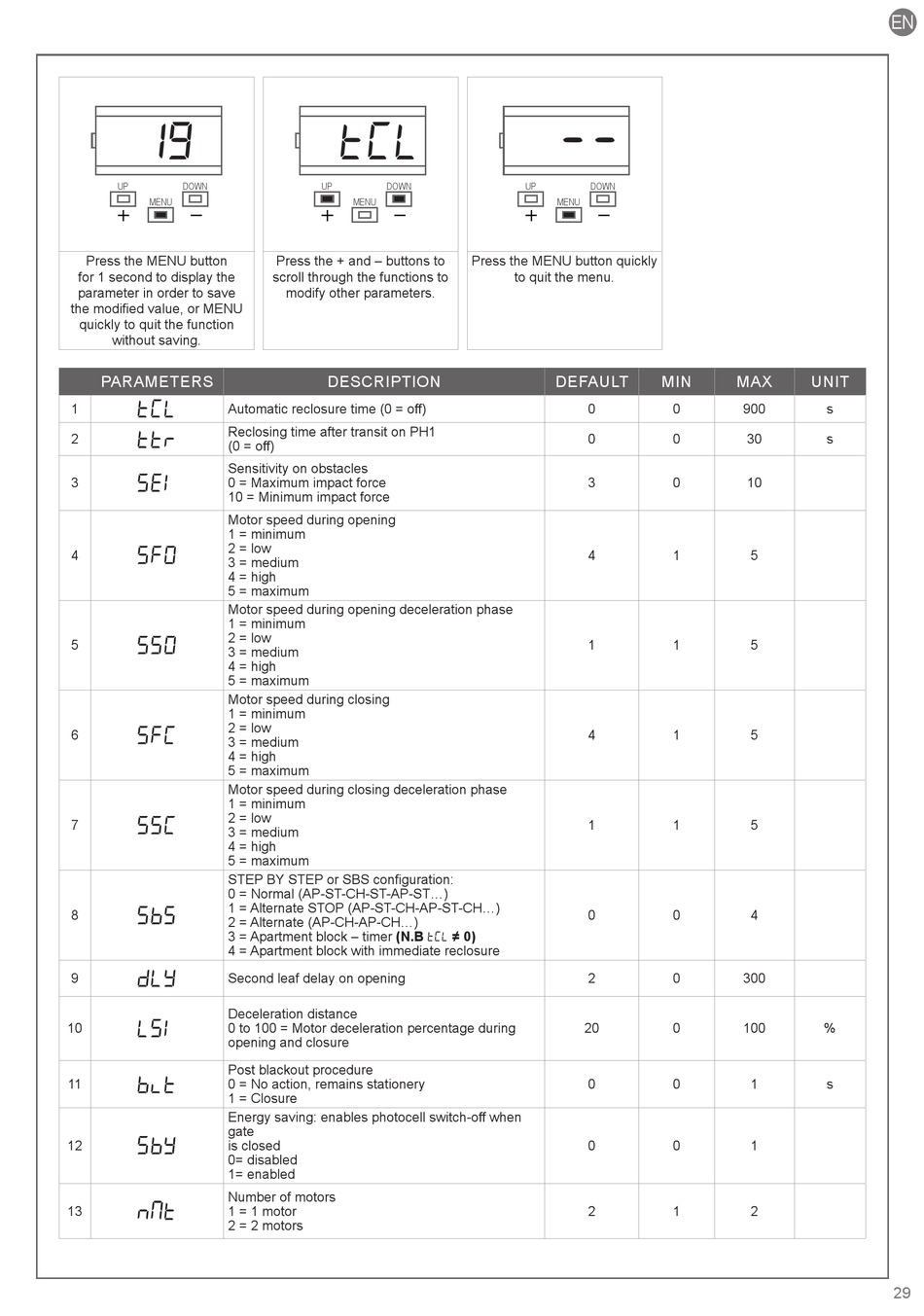

Press the MENU button
for 1 second to display the
parameter in order to save
the modified value, or MENU
quickly to quit the function
without saving.
PARAMETERS
TCL
1 Automatic reclosure time (0 = off)
Reclosing time after transit on PH1
ttr
2
(0 = off)
Sensitivity on obstacles
SEI
3 0 = Maximum impact force
10 = Minimum impact force
Motor speed during opening
1 = minimum
2 = low
SFO
4
3 = medium
4 = high
5 = maximum
Motor speed during opening deceleration phase
1 = minimum
2 = low
SSO
5
3 = medium
4 = high
5 = maximum
Motor speed during closing
1 = minimum
2 = low
SFC
6
3 = medium
4 = high
5 = maximum
Motor speed during closing deceleration phase
1 = minimum
2 = low
SSC
7
3 = medium
4 = high
5 = maximum
STEP BY STEP or SBS configuration:
0 = Normal (AP-ST-CH-ST-AP-ST...)
1 = Alternate STOP (AP-ST-CH-AP-ST-CH...)
SBS
8
2 = Alternate (AP-CH-AP-CH...)
3 = Apartment block – timer (N.B TCL ≠ 0)
4 = Apartment block with immediate reclosure
DLY
9 Second leaf delay on opening
Deceleration distance
LSI
10 0 to 100 = Motor deceleration percentage during
opening and closure
Post blackout procedure
BlT
11 0 = No action, remains stationery
1 = Closure
Energy saving: enables photocell switch-off when
gate
SBY
12 is closed
0= disabled
1= enabled
Number of motors
nMt
13 1 = 1 motor
2 = 2 motors
tCL
UP DOWN
MENU
Press the + and – buttons to
scroll through the functions to
modify other parameters.
DESCRIPTION
--
UP DOWN
MENU
Press the MENU button quickly
to quit the menu.
DEFAULT
0
0
3
4
1
4
1
0
2
20
0
0
2
MIN MAX UNIT
0 900 s
0 30 s
0 10
1 5
1 5
1 5
1 5
0 4
0 300
0 100 %
0 1 s
0 1
1 2
