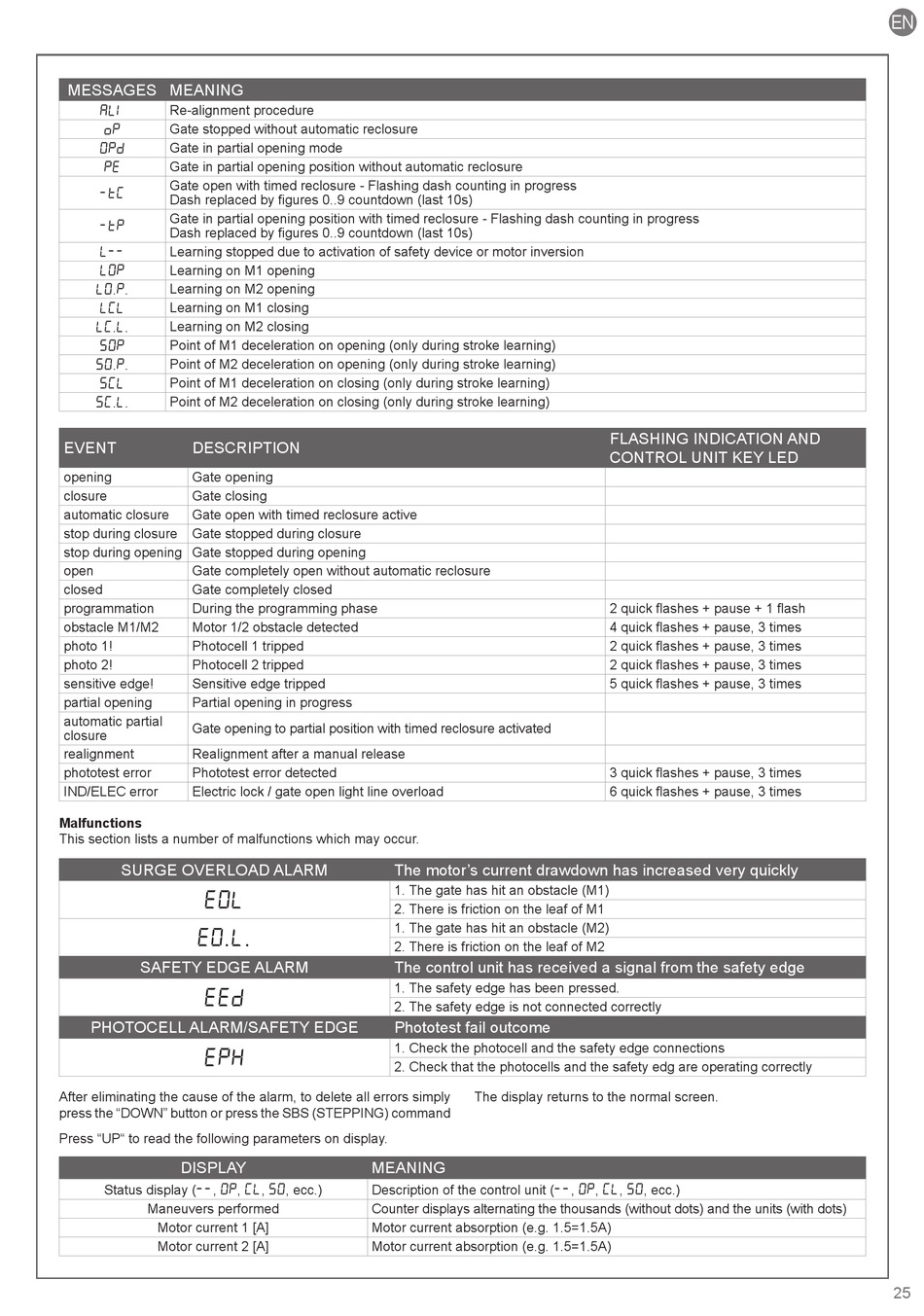

MESSAGES MEANING
ALI Re-alignment procedure
Gate stopped without automatic reclosure
oP
Gate in partial opening mode
OPd
Pe Gate in partial opening position without automatic reclosure
Gate open with timed reclosure - Flashing dash counting in progress
-tC
Dash replaced by figures 0..9 countdown (last 10s)
Gate in partial opening position with timed reclosure - Flashing dash counting in progress
-tP
Dash replaced by figures 0..9 countdown (last 10s)
L-- Learning stopped due to activation of safety device or motor inversion
Learning on M1 opening
LOP
LO . P . Learning on M2 opening
LCL Learning on M1 closing
Learning on M2 closing
LC . L .
Point of M1 deceleration on opening (only during stroke learning)
SOP
SO P Point of M2 deceleration on opening (only during stroke learning)
. .
Point of M1 deceleration on closing (only during stroke learning)
SCL
Point of M2 deceleration on closing (only during stroke learning)
SC . L .
EVENT DESCRIPTION
opening Gate opening
closure Gate closing
automatic closure Gate open with timed reclosure active
stop during closure Gate stopped during closure
stop during opening Gate stopped during opening
open Gate completely open without automatic reclosure
closed Gate completely closed
programmation During the programming phase
obstacle M1/M2 Motor 1/2 obstacle detected
photo 1! Photocell 1 tripped
photo 2! Photocell 2 tripped
sensitive edge! Sensitive edge tripped
partial opening Partial opening in progress
automatic partial
Gate opening to partial position with timed reclosure activated
closure
realignment Realignment after a manual release
phototest error Phototest error detected
IND/ELEC error Electric lock / gate open light line overload
Malfunctions
This section lists a number of malfunctions which may occur.
SURGE OVERLOAD ALARM
EOL
EO.L.
SAFETY EDGE ALARM
EED
PHOTOCELL ALARM/SAFETY EDGE
EPH
After eliminating the cause of the alarm, to delete all errors simply
press the "DOWN" button or press the SBS (STEPPING) command
Press "UP" to read the following parameters on display.
DISPLAY
Status display ( -- , OP
Maneuvers performed
Motor current 1 [A]
Motor current 2 [A]
The motor's current drawdown has increased very quickly
1. The gate has hit an obstacle (M1)
2. There is friction on the leaf of M1
1. The gate has hit an obstacle (M2)
2. There is friction on the leaf of M2
The control unit has received a signal from the safety edge
1. The safety edge has been pressed.
2. The safety edge is not connected correctly
Phototest fail outcome
1. Check the photocell and the safety edge connections
2. Check that the photocells and the safety edg are operating correctly
MEANING
, CL , SO , ecc.) Description of the control unit (
Counter displays alternating the thousands (without dots) and the units (with dots)
Motor current absorption (e.g. 1.5=1.5A)
Motor current absorption (e.g. 1.5=1.5A)
FLASHING INDICATION AND
CONTROL UNIT KEY LED
2 quick flashes + pause + 1 flash
4 quick flashes + pause, 3 times
2 quick flashes + pause, 3 times
2 quick flashes + pause, 3 times
5 quick flashes + pause, 3 times
3 quick flashes + pause, 3 times
6 quick flashes + pause, 3 times
The display returns to the normal screen.
-- , OP , CL , SO , ecc.)
