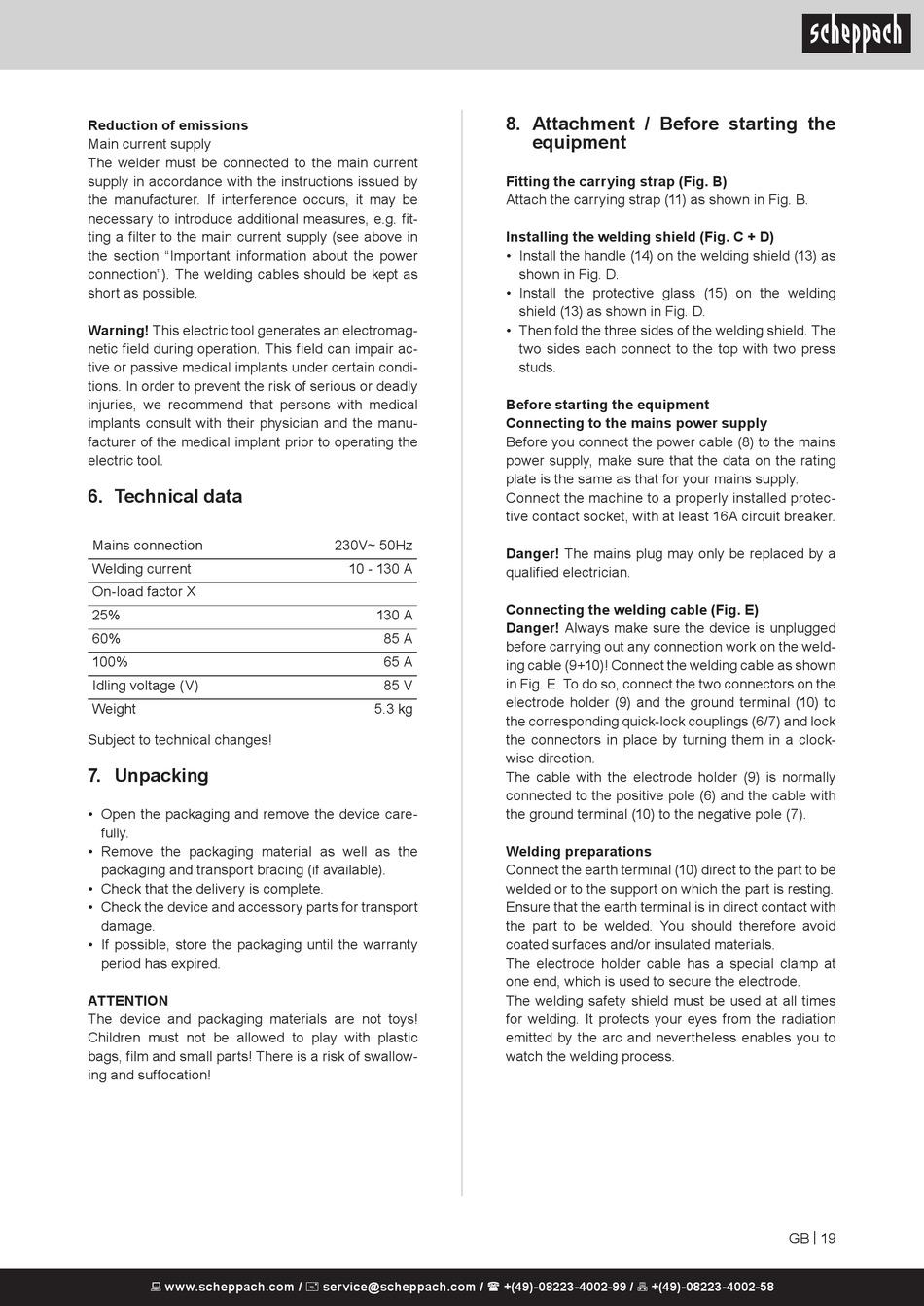

Reduction of emissions
Main current supply
The welder must be connected to the main current
supply in accordance with the instructions issued by
the manufacturer. If interference occurs, it may be
necessary to introduce additional measures, e.g. fit-
ting a filter to the main current supply (see above in
the section "Important information about the power
connection"). The welding cables should be kept as
short as possible.
Warning! This electric tool generates an electromag-
netic field during operation. This field can impair ac-
tive or passive medical implants under certain condi-
tions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical
implants consult with their physician and the manu-
facturer of the medical implant prior to operating the
electric tool.

6. Technical data

Mains connection
Welding current
On-load factor X
25%
60%
100%
Idling voltage (V)
Weight
Subject to technical changes!

7. Unpacking

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swallow-
ing and suffocation!
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
8. Attachment / Before starting the
Fitting the carrying strap (Fig. B)
Attach the carrying strap (11) as shown in Fig. B.
Installing the welding shield (Fig. C + D)
• Install the handle (14) on the welding shield (13) as
• Install the protective glass (15) on the welding
• Then fold the three sides of the welding shield. The
Before starting the equipment
Connecting to the mains power supply
Before you connect the power cable (8) to the mains
power supply, make sure that the data on the rating
plate is the same as that for your mains supply.
Connect the machine to a properly installed protec-
tive contact socket, with at least 16A circuit breaker.
230V~ 50Hz
Danger! The mains plug may only be replaced by a
10 - 130 A
qualified electrician.
Connecting the welding cable (Fig. E)
130 A
Danger! Always make sure the device is unplugged
85 A
before carrying out any connection work on the weld-
65 A
ing cable (9+10)! Connect the welding cable as shown
in Fig. E. To do so, connect the two connectors on the
85 V
electrode holder (9) and the ground terminal (10) to
5.3 kg
the corresponding quick-lock couplings (6/7) and lock
the connectors in place by turning them in a clock-
wise direction.
The cable with the electrode holder (9) is normally
connected to the positive pole (6) and the cable with
the ground terminal (10) to the negative pole (7).
Welding preparations
Connect the earth terminal (10) direct to the part to be
welded or to the support on which the part is resting.
Ensure that the earth terminal is in direct contact with
the part to be welded. You should therefore avoid
coated surfaces and/or insulated materials.
The electrode holder cable has a special clamp at
one end, which is used to secure the electrode.
The welding safety shield must be used at all times
for welding. It protects your eyes from the radiation
emitted by the arc and nevertheless enables you to
watch the welding process.
equipment
shown in Fig. D.
shield (13) as shown in Fig. D.
two sides each connect to the top with two press
studs.
GB | 19
