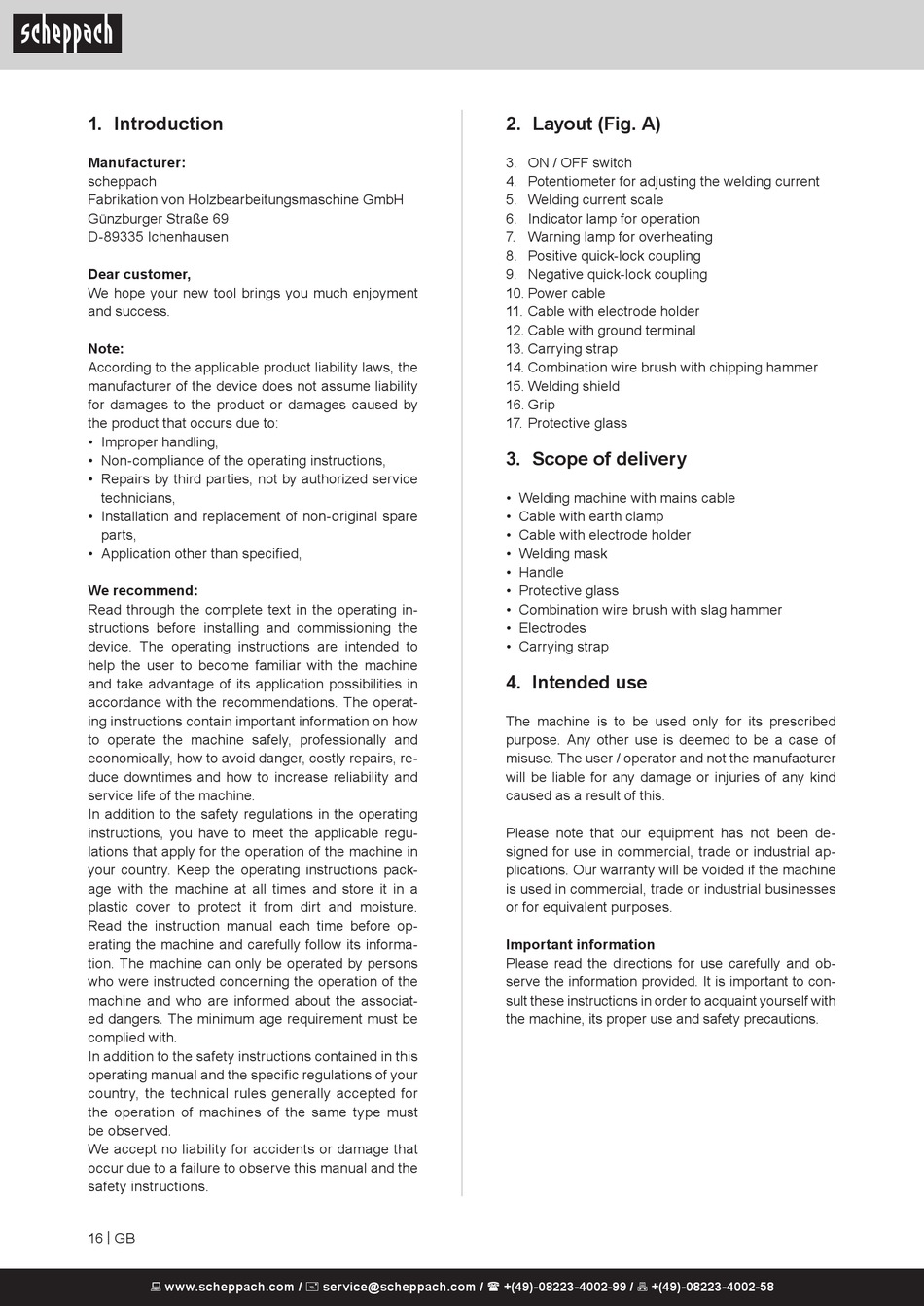

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We hope your new tool brings you much enjoyment
and success.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
We recommend:
Read through the complete text in the operating in-
structions before installing and commissioning the
device. The operating instructions are intended to
help the user to become familiar with the machine
and take advantage of its application possibilities in
accordance with the recommendations. The operat-
ing instructions contain important information on how
to operate the machine safely, professionally and
economically, how to avoid danger, costly repairs, re-
duce downtimes and how to increase reliability and
service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regu-
lations that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture.
Read the instruction manual each time before op-
erating the machine and carefully follow its informa-
tion. The machine can only be operated by persons
who were instructed concerning the operation of the
machine and who are informed about the associat-
ed dangers. The minimum age requirement must be
complied with.
In addition to the safety instructions contained in this
operating manual and the specific regulations of your
country, the technical rules generally accepted for
the operation of machines of the same type must
be observed.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
16 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

2. Layout (Fig. A)

3. ON / OFF switch
4. Potentiometer for adjusting the welding current
5. Welding current scale
6. Indicator lamp for operation
7. Warning lamp for overheating
8. Positive quick-lock coupling
9. Negative quick-lock coupling
10. Power cable
11. Cable with electrode holder
12. Cable with ground terminal
13. Carrying strap
14. Combination wire brush with chipping hammer
15. Welding shield
16. Grip
17. Protective glass

3. Scope of delivery

• Welding machine with mains cable
• Cable with earth clamp
• Cable with electrode holder
• Welding mask
• Handle
• Protective glass
• Combination wire brush with slag hammer
• Electrodes
• Carrying strap

4. Intended use

The machine is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the manufacturer
will be liable for any damage or injuries of any kind
caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial ap-
plications. Our warranty will be voided if the machine
is used in commercial, trade or industrial businesses
or for equivalent purposes.
Important information
Please read the directions for use carefully and ob-
serve the information provided. It is important to con-
sult these instructions in order to acquaint yourself with
the machine, its proper use and safety precautions.
