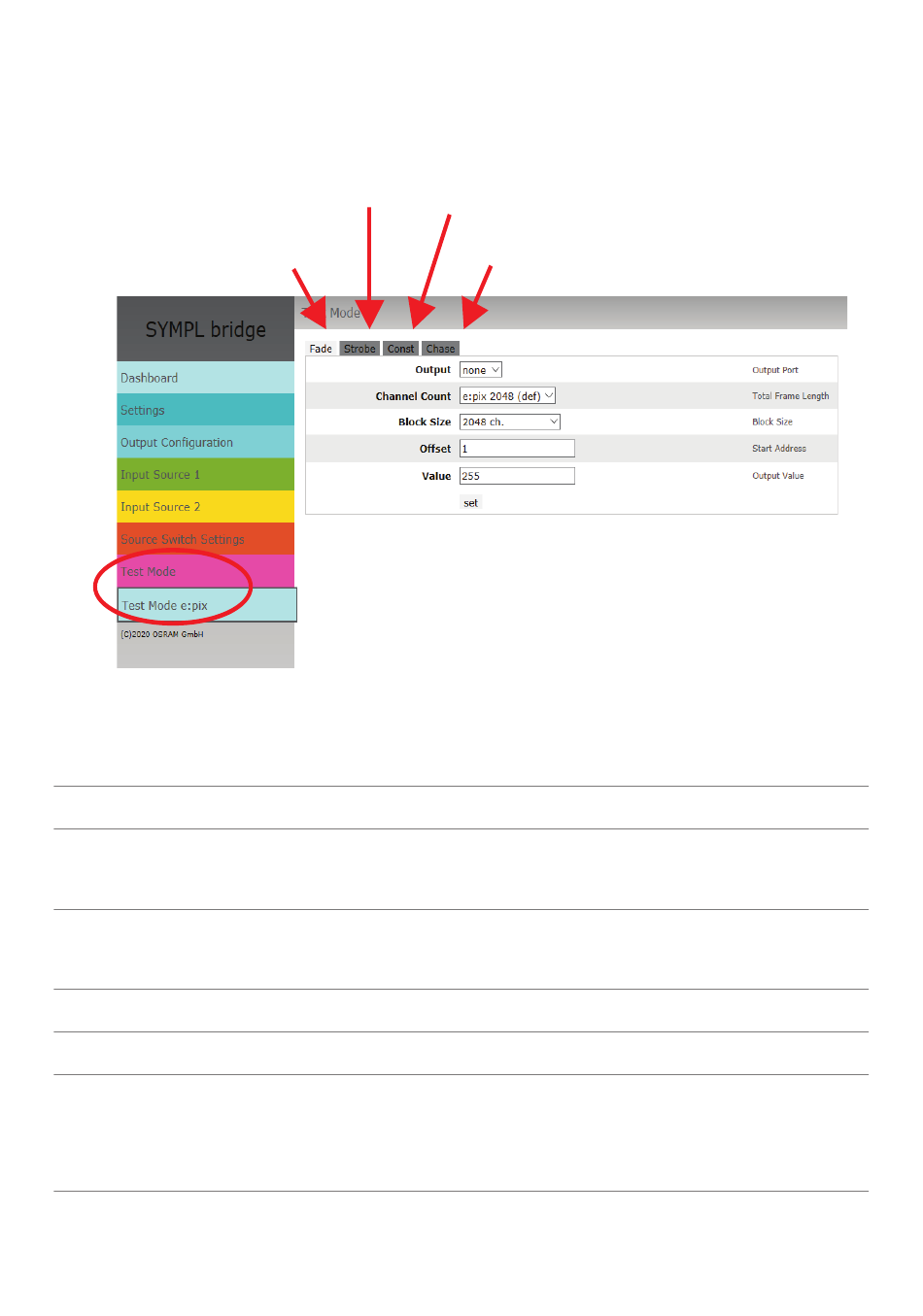

Open the Test mode page by selecting "TestMode" on the left side of the
web interface of the SYMPL bridge Node:
Fade:
dimming up and
down, alternating
Click a button to choose a test pattern. Define the properties:
Property
Output
Channel Count
Block Size
Offset
Value
Step Time
Click "set" to run the test and to apply changes in the test settings.
Strobe:
Const:
fast flashing
constant lighting
Description
DMX ports to run the test on.
Total frame length. Editable in "TestMode e:pix" on
SYMPL bridge Node only.
Block size in which to step through the frame length
in channel count.
Start address of the first test loop (first channel = 1).
Luminance of the test output (0 - 255).
Delay between steps. Manual: Press the Test button
to move the block. Define the first channel at "Start
Address".
Chase:
consecutive lighting
of blocks
