Installation
To connect the device to a power supply unit, use the provided 2-pole
terminal and lay the wires as stated on the front label. The voltage
assignment is left V+ and right V-.
Turn the power on when all cables are connected to the
SYMPL bridge Node. The device starts booting. During the booting process
all DMX LEDs turn on consecutively. The device has finished booting and is
in operation when the LED Status is flashing.
i
The SYMPL bridge Node is not suited for powering over a
DC power supply network. Use a separate certified SELV
Class 2 power supply unit in the control cabinet for
supplying 24 V DC to the SYMPL bridge Node.
4.6

Protective Earth

Connect the SYMPL bridge Node's Portective Earth to earth
!
when at least one connected cable runs outdoors.

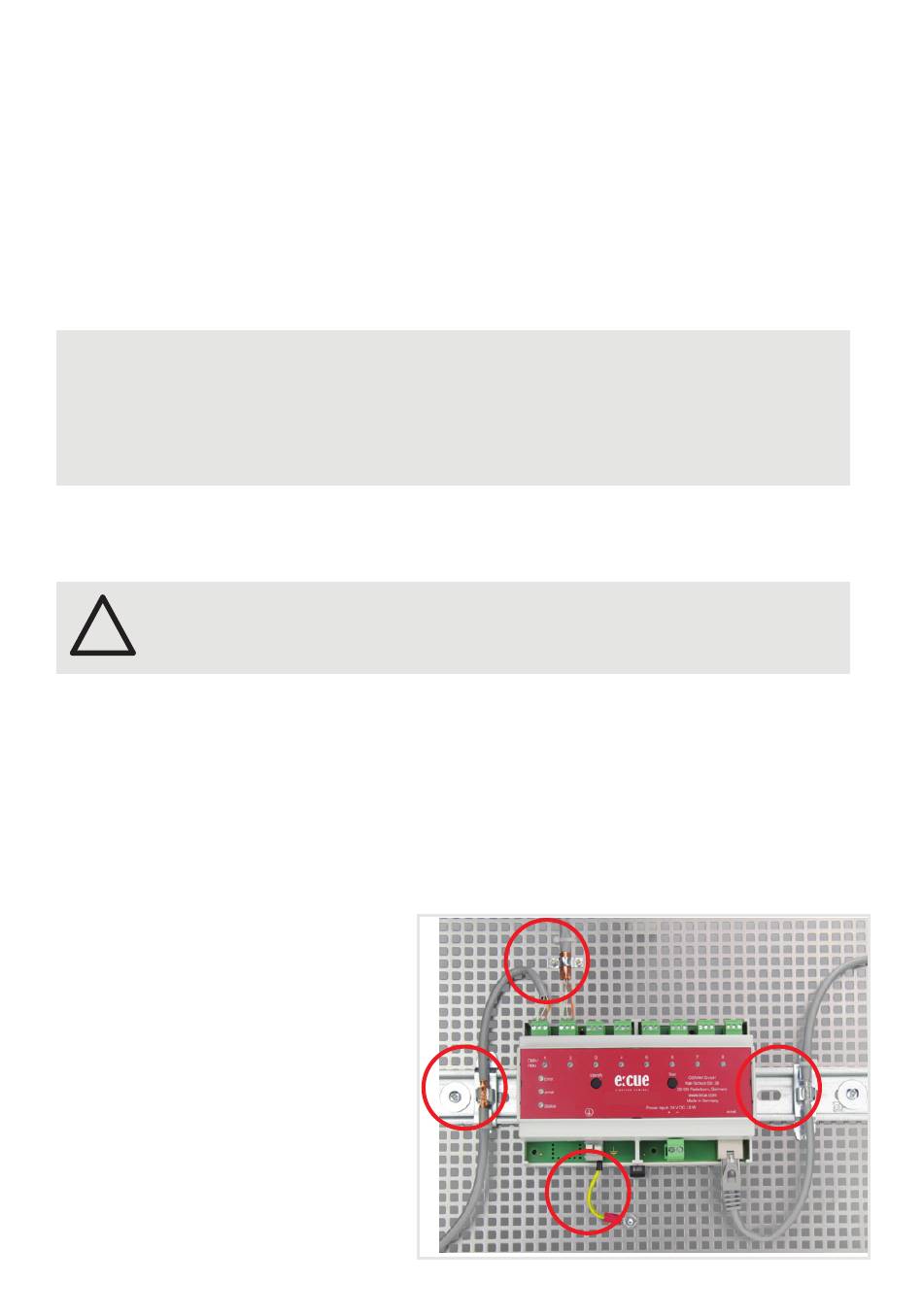

Grounding of the SYMPL bridge Node
Use Protective Earth where
applicable.
Ground the DMX connection
cable and the Ethernet cable.
Ground each cable separately.
