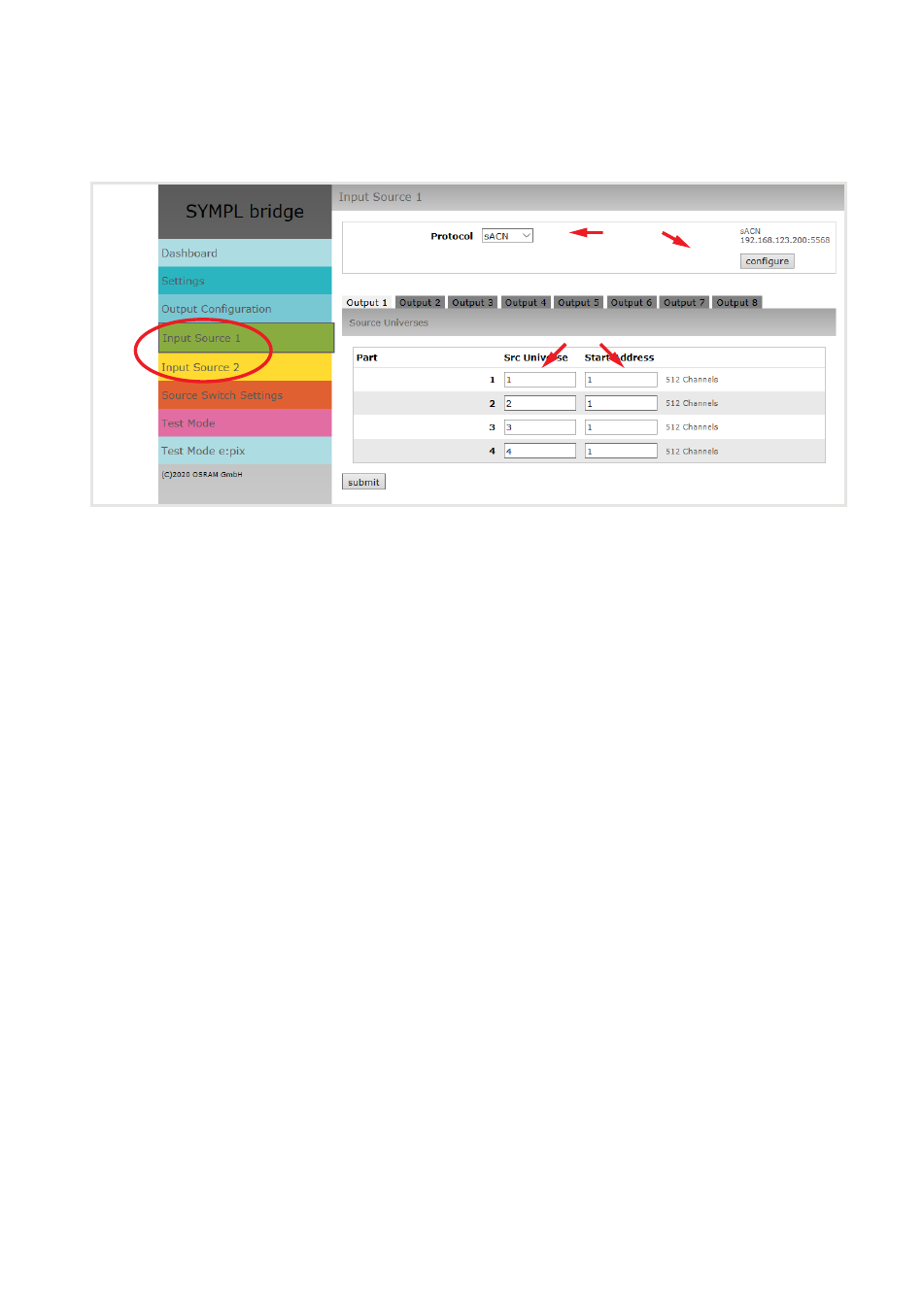

1. Open the sources' configuration pages by selecting "Input
Source 1" and "Input Source 2" respectively on the left side of the web
interface of the SYMPL bridge Node:
1.
Please note that the IP addresses of the two sources must be different if
the same protocol is used for both sources. You can have an identical IP
address when two different protocols are used.
Repeat the following steps for each source:
2. At the top, select a protocol type (Art-Net, e:net, sACN) from the
drop down menu and click the "configure" button. In the protocol
configuration, configure the source protocol parameters e.g. the IP
address accordingly. Click the "submit" button to save the protocol
configuration.
3. For each output part with a length > 0 an input universe must be
set ("Src Universe"). Enter the connected fixtures' universes.
Additionally an offset within this universe can be specified ("Start
Address").
It is possible to map the same universe to multiple ports and parts. This
means you can duplicate content using the SYMPL bridge Node.
3.
4.
