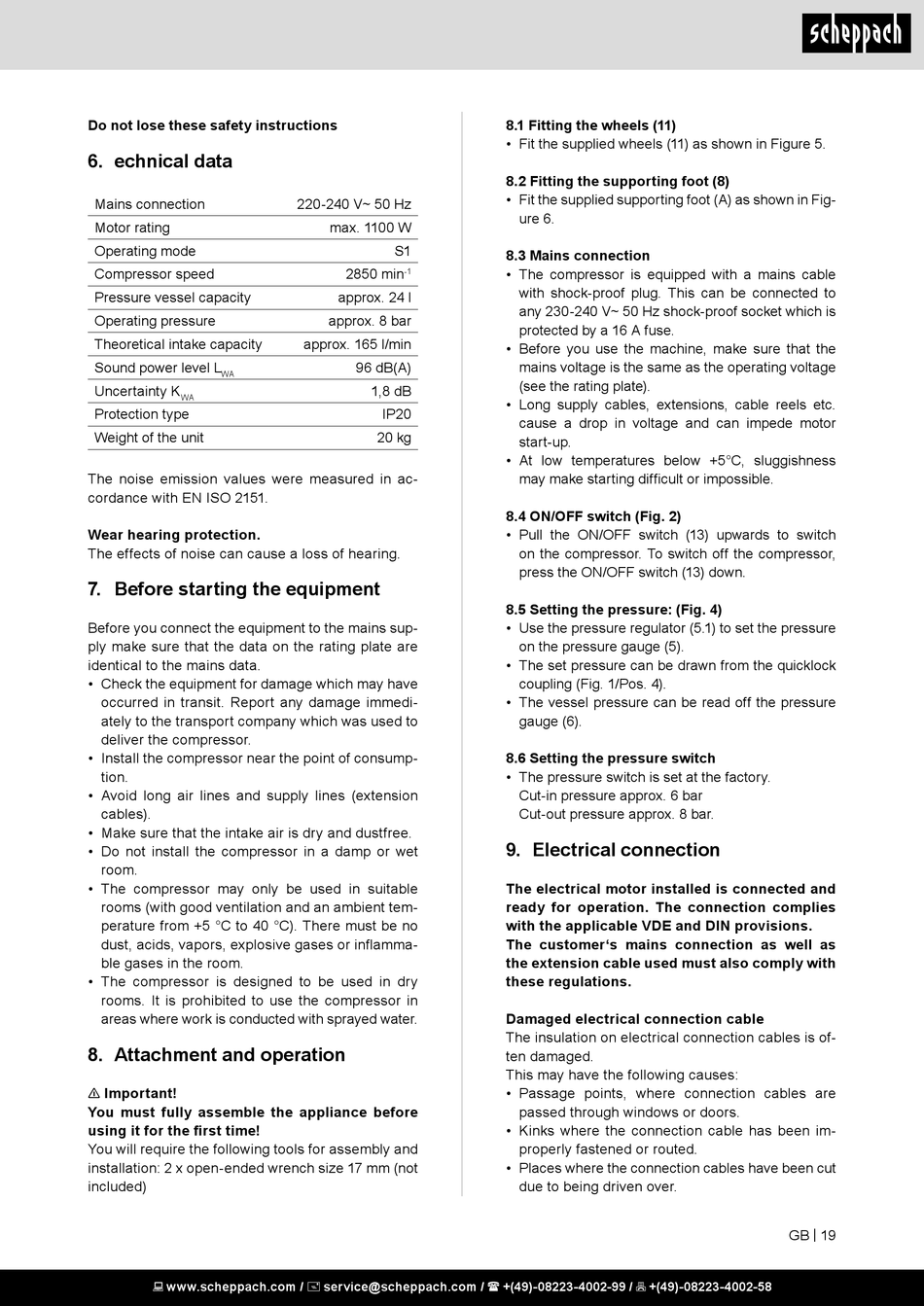

Do not lose these safety instructions

6. echnical data

Mains connection

Motor rating
Operating mode
Compressor speed
Pressure vessel capacity
Operating pressure
Theoretical intake capacity
Sound power level L
WA
Uncertainty K
WA
Protection type
Weight of the unit
The noise emission values were measured in ac-
cordance with EN ISO 2151.
Wear hearing protection.
The effects of noise can cause a loss of hearing.

7. Before starting the equipment

Before you connect the equipment to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
• Check the equipment for damage which may have
occurred in transit. Report any damage immedi-
ately to the transport company which was used to
deliver the compressor.
• Install the compressor near the point of consump-
tion.
• Avoid long air lines and supply lines (extension
cables).
• Make sure that the intake air is dry and dustfree.
• Do not install the compressor in a damp or wet
room.
• The compressor may only be used in suitable
rooms (with good ventilation and an ambient tem-
perature from +5 °C to 40 °C). There must be no
dust, acids, vapors, explosive gases or inflamma-
ble gases in the room.
• The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor in
areas where work is conducted with sprayed water.

8. Attachment and operation

n Important!
You must fully assemble the appliance before
using it for the first time!
You will require the following tools for assembly and
installation: 2 x open-ended wrench size 17 mm (not
included)
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220-240 V~ 50 Hz
max. 1100 W
S1
2850 min
-1
approx. 24 l
approx. 8 bar
approx. 165 l/min
96 dB(A)
1,8 dB
IP20
20 kg
8.1 Fitting the wheels (11)
• Fit the supplied wheels (11) as shown in Figure 5.
8.2 Fitting the supporting foot (8)
• Fit the supplied supporting foot (A) as shown in Fig-
ure 6.
8.3 Mains connection
• The compressor is equipped with a mains cable
with shock-proof plug. This can be connected to
any 230-240 V~ 50 Hz shock-proof socket which is
protected by a 16 A fuse.
• Before you use the machine, make sure that the
mains voltage is the same as the operating voltage
(see the rating plate).
• Long supply cables, extensions, cable reels etc.
cause a drop in voltage and can impede motor
start-up.
• At low temperatures below +5°C, sluggishness
may make starting difficult or impossible.
8.4 ON/OFF switch (Fig. 2)
• Pull the ON/OFF switch (13) upwards to switch
on the compressor. To switch off the compressor,
press the ON/OFF switch (13) down.
8.5 Setting the pressure: (Fig. 4)
• Use the pressure regulator (5.1) to set the pressure
on the pressure gauge (5).
• The set pressure can be drawn from the quicklock
coupling (Fig. 1/Pos. 4).
• The vessel pressure can be read off the pressure
gauge (6).

8.6 Setting the pressure switch

• The pressure switch is set at the factory.
Cut-in pressure approx. 6 bar
Cut-out pressure approx. 8 bar.

9. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions.
The customer's mains connection as well as
the extension cable used must also comply with
these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
GB | 19
