INSTALLATION AND TRANSPORT
Warning!
The center of gravity is behind the mid-
dle of the machine (lamp housing).
We recommend the following procedure for lifting
the machine:
• Loosen the 4 angle brackets used to secure the
machine to the pallet.
• Next screw in the 4 eyebolts (see figure
"Eyebolts") into the holes where the mounting
brackets were attached.
• Next thread 4 transport straps of a sufficient and
equal length through the eyebolts.
Warning!
Make sure the transport straps have suf-
ficient lifting capacity. Refer to the ship-
ping papers for the weight of the
machine, which varies according to the
equipment.
Warning!
Also make sure the transport straps are
made of an appropriate material to avoid
damaging the machine.

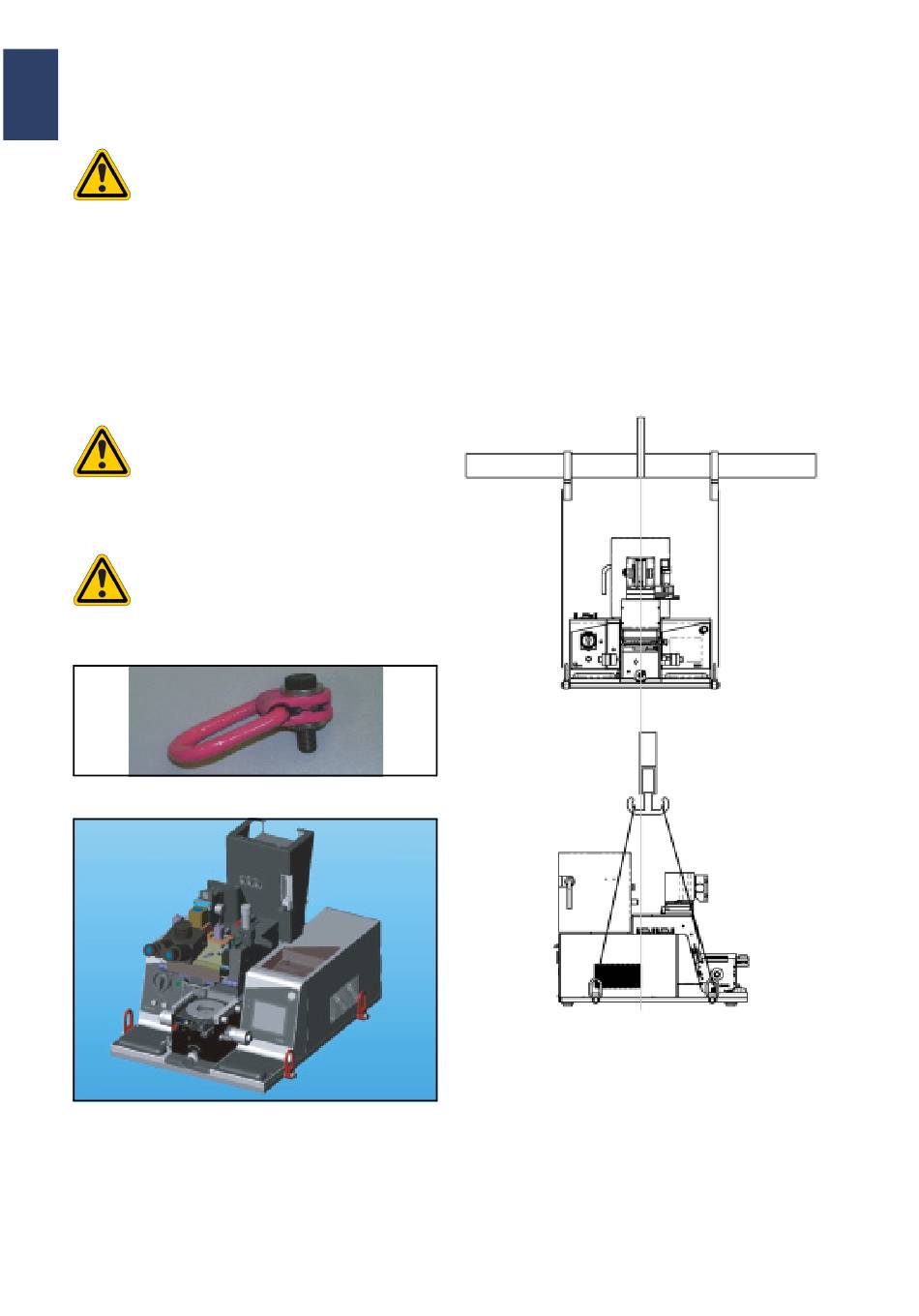

Eyebolts
Eyebolts screwed into the MJB4 base
• We recommend using cross beam part no.:
187724 for transporting the machine (see figure:
16
- Original Documentation -
"Transporting the MJB4 using a cross beam").
The cross beam ensures that the transport straps
do not lie against the machine and therefore
cannot exert any forces on the machine
(coverings, lamp housing, etc.), which could
happen if transport straps are lead to a centered
lifting hook.
If no transport cross beam is available, make sure
the transport straps do not damage the machine. We
recommend dismantling the lamp housing.
Transporting the MJB4 using a cross beam
