2

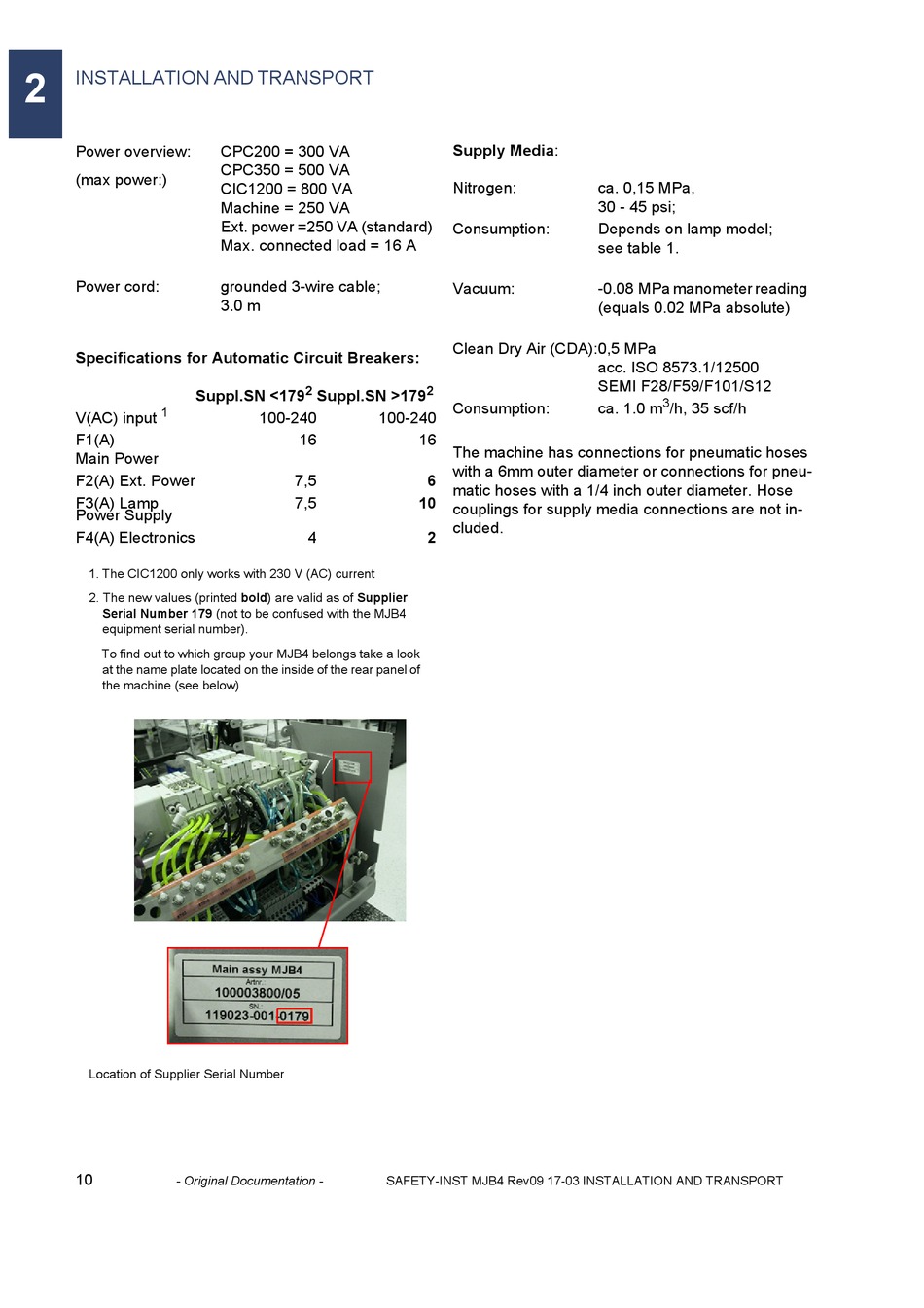

INSTALLATION AND TRANSPORT
Power overview:
(max power:)
Power cord:
Specifications for Automatic Circuit Breakers:
1
V(AC) input
F1(A)
Main Power
F2(A) Ext. Power
F3(A) Lamp
Power Supply
F4(A) Electronics
1. The CIC1200 only works with 230 V (AC) current
2. The new values (printed bold) are valid as of Supplier
Serial Number 179 (not to be confused with the MJB4
equipment serial number).
To find out to which group your MJB4 belongs take a look
at the name plate located on the inside of the rear panel of
the machine (see below)
Location of Supplier Serial Number
10
- Original Documentation -
CPC200 = 300 VA
CPC350 = 500 VA
CIC1200 = 800 VA
Machine = 250 VA
Ext. power =250 VA (standard)
Max. connected load = 16 A
grounded 3-wire cable;
3.0 m
2
Suppl.SN <179
Suppl.SN >179
100-240
16
7,5
7,5
4
Supply Media:
Nitrogen:
Consumption:
Vacuum:
Clean Dry Air (CDA):0,5 MPa
2
Consumption:
100-240
16
The machine has connections for pneumatic hoses
with a 6mm outer diameter or connections for pneu-
6
matic hoses with a 1/4 inch outer diameter. Hose
10
couplings for supply media connections are not in-
cluded.
2
SAFETY-INST MJB4 Rev09 17-03 INSTALLATION AND TRANSPORT
ca. 0,15 MPa,
30 - 45 psi;
Depends on lamp model;
see table 1.
-0.08 MPa manometer reading
(equals 0.02 MPa absolute)
acc. ISO 8573.1/12500
SEMI F28/F59/F101/S12
3
ca. 1.0 m
/h, 35 scf/h
