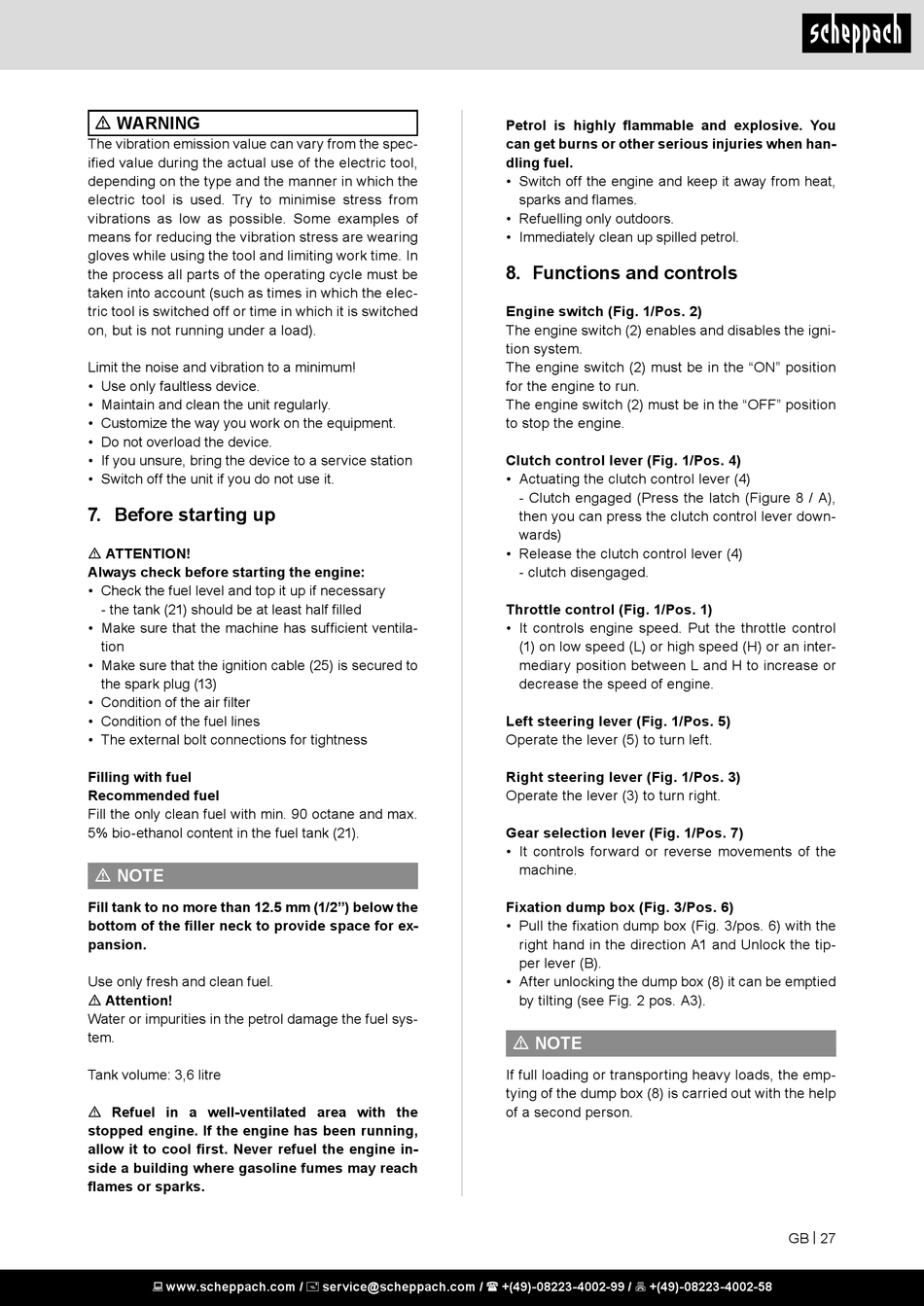

m WARNING
The vibration emission value can vary from the spec-
ified value during the actual use of the electric tool,
depending on the type and the manner in which the
electric tool is used. Try to minimise stress from
vibrations as low as possible. Some examples of
means for reducing the vibration stress are wearing
gloves while using the tool and limiting work time. In
the process all parts of the operating cycle must be
taken into account (such as times in which the elec-
tric tool is switched off or time in which it is switched
on, but is not running under a load).
Limit the noise and vibration to a minimum!
• Use only faultless device.
• Maintain and clean the unit regularly.
• Customize the way you work on the equipment.
• Do not overload the device.
• If you unsure, bring the device to a service station
• Switch off the unit if you do not use it.

7. Before starting up

m ATTENTION!
Always check before starting the engine:
• Check the fuel level and top it up if necessary
- the tank (21) should be at least half filled
• Make sure that the machine has sufficient ventila-
tion
• Make sure that the ignition cable (25) is secured to
the spark plug (13)
• Condition of the air filter
• Condition of the fuel lines
• The external bolt connections for tightness
Filling with fuel
Recommended fuel
Fill the only clean fuel with min. 90 octane and max.
5% bio-ethanol content in the fuel tank (21).
m NOTE
Fill tank to no more than 12.5 mm (1/2") below the
bottom of the filler neck to provide space for ex-
pansion.
Use only fresh and clean fuel.
m Attention!
Water or impurities in the petrol damage the fuel sys-
tem.
Tank volume: 3,6 litre
m Refuel in a well-ventilated area with the
stopped engine. If the engine has been running,
allow it to cool first. Never refuel the engine in-
side a building where gasoline fumes may reach
flames or sparks.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Petrol is highly flammable and explosive. You
can get burns or other serious injuries when han-
dling fuel.
• Switch off the engine and keep it away from heat,
sparks and flames.
• Refuelling only outdoors.
• Immediately clean up spilled petrol.

8. Functions and controls

Engine switch (Fig. 1/Pos. 2)
The engine switch (2) enables and disables the igni-
tion system.
The engine switch (2) must be in the "ON" position
for the engine to run.
The engine switch (2) must be in the "OFF" position
to stop the engine.
Clutch control lever (Fig. 1/Pos. 4)
• Actuating the clutch control lever (4)
- Clutch engaged (Press the latch (Figure 8 / A),
then you can press the clutch control lever down-
wards)
• Release the clutch control lever (4)
- clutch disengaged.
Throttle control (Fig. 1/Pos. 1)
• It controls engine speed. Put the throttle control
(1) on low speed (L) or high speed (H) or an inter-
mediary position between L and H to increase or
decrease the speed of engine.
Left steering lever (Fig. 1/Pos. 5)
Operate the lever (5) to turn left.
Right steering lever (Fig. 1/Pos. 3)
Operate the lever (3) to turn right.
Gear selection lever (Fig. 1/Pos. 7)
• It controls forward or reverse movements of the
machine.
Fixation dump box (Fig. 3/Pos. 6)
• Pull the fixation dump box (Fig. 3/pos. 6) with the
right hand in the direction A1 and Unlock the tip-
per lever (B).
• After unlocking the dump box (8) it can be emptied
by tilting (see Fig. 2 pos. A3).
m NOTE
If full loading or transporting heavy loads, the emp-
tying of the dump box (8) is carried out with the help
of a second person.
