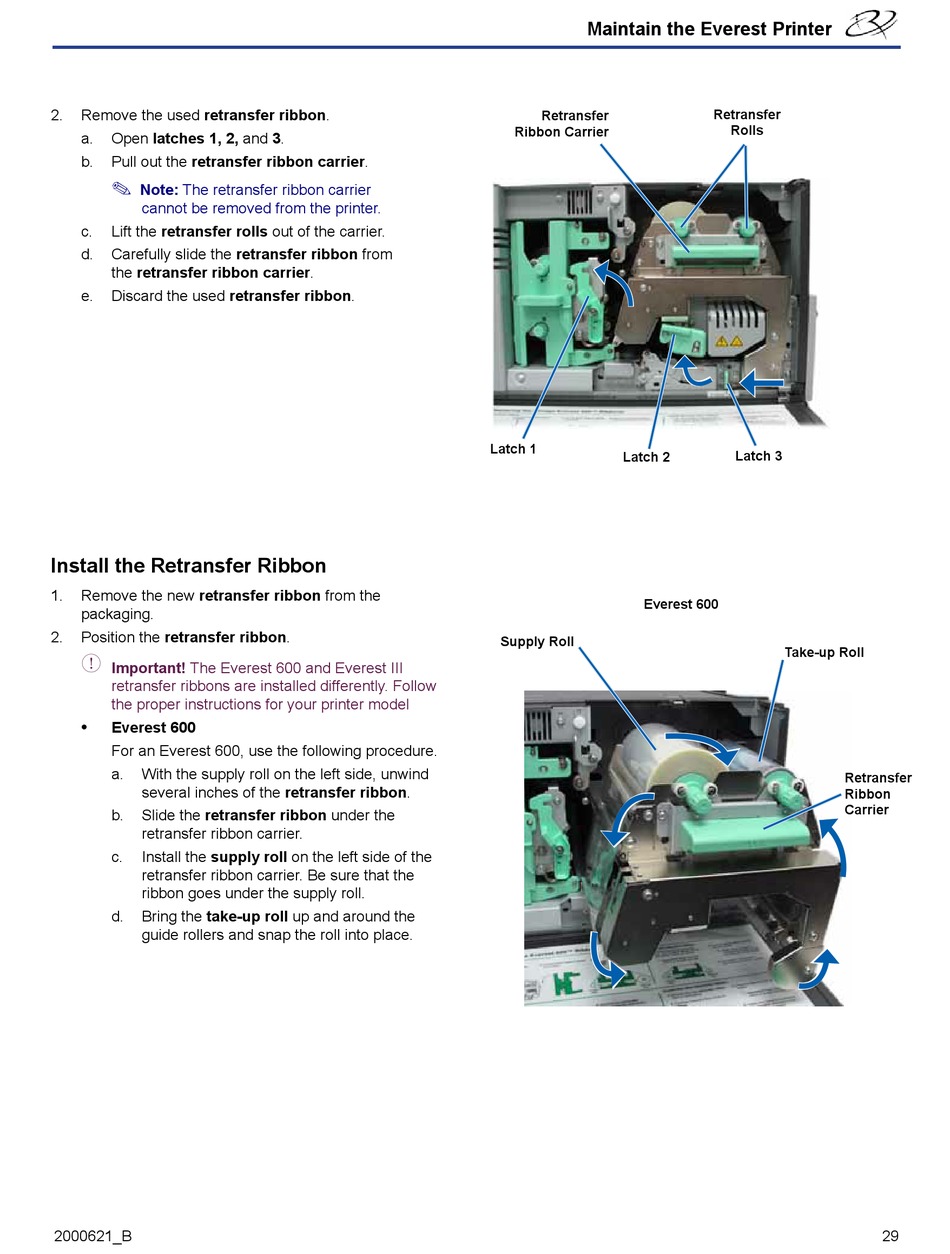

2. Remove the used retransfer ribbon.
a. Open latches 1, 2, and 3.
b. Pull out the retransfer ribbon carrier.

Note: The retransfer ribbon carrier
cannot be removed from the printer.
Lift the retransfer rolls out of the carrier.
c.
d. Carefully slide the retransfer ribbon from
the retransfer ribbon carrier.
e. Discard the used retransfer ribbon.

Install the Retransfer Ribbon

1. Remove the new retransfer ribbon from the
packaging.
Position the retransfer ribbon.
2.
-
Important! The Everest 600 and Everest III
retransfer ribbons are installed differently. Follow
the proper instructions for your printer model
•
Everest 600
For an Everest 600, use the following procedure.
a. With the supply roll on the left side, unwind
several inches of the retransfer ribbon.
b. Slide the retransfer ribbon under the
retransfer ribbon carrier.
c. Install the supply roll on the left side of the
retransfer ribbon carrier. Be sure that the
ribbon goes under the supply roll.
d. Bring the take-up roll up and around the
guide rollers and snap the roll into place.
2000621_B
Maintain the Everest Printer
Retransfer
Ribbon Carrier
Latch 1
Latch 2
Everest 600
Supply Roll
Retransfer
Rolls
Latch 3
Take-up Roll
Retransfer
Ribbon
Carrier
29
