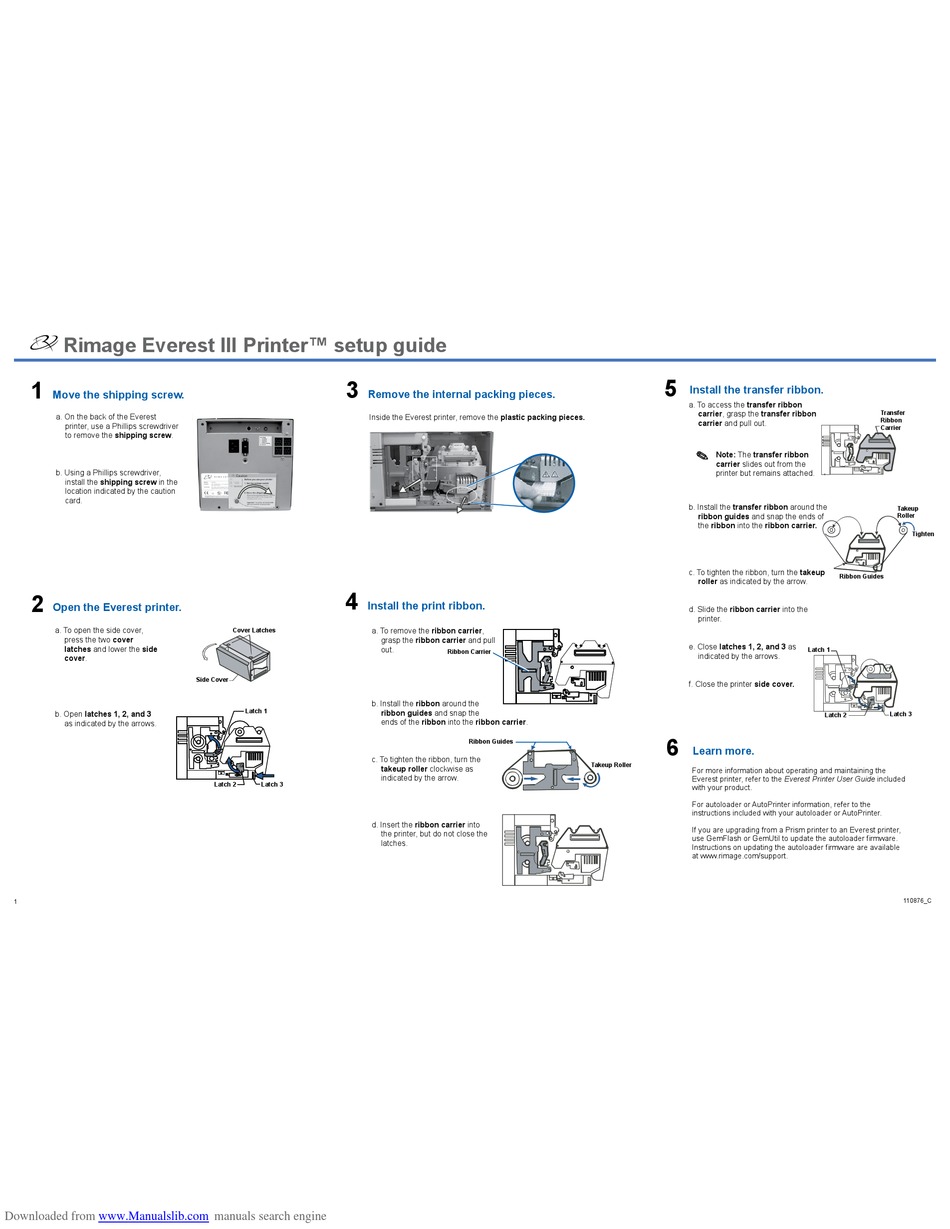

Rimage Everest III Printer™ setup guide
1
Move the shipping screw.
a. On the back of the Everest
printer, use a Phillips screwdriver
to remove the shipping screw.
b. Using a Phillips screwdriver,
install the shipping screw in the
location indicated by the caution
card.
2
Open the Everest printer.
a. To open the side cover,
press the two cover
latches and lower the side
cover.
b. Open latches 1, 2, and 3
as indicated by the arrows.
1
Downloaded from www.Manualslib.com
3
Remove the internal packing pieces.
Inside the Everest printer, remove the plastic packing pieces.
4
Install the print ribbon.
Cover Latches a. To remove the ribbon carrier,
Side Cover
b. Install the ribbon around the
Latch 1
c. To tighten the ribbon, turn the
Latch 2 Latch 3
d. Insert the ribbon carrier into
manuals search engine
grasp the ribbon carrier and pull
out.
Ribbon Carrier
ribbon guides and snap the
ends of the ribbon into the ribbon carrier.
Ribbon Guides
takeup roller clockwise as
indicated by the arrow.
the printer, but do not close the
latches.
5
Install the transfer ribbon.
a. To access the transfer ribbon
carrier, grasp the transfer ribbon
carrier and pull out.
 Note: The transfer ribbon
carrier slides out from the
printer but remains attached.
b. Install the transfer ribbon around the
ribbon guides and snap the ends of
the ribbon into the ribbon carrier.
c. To tighten the ribbon, turn the takeup
roller as indicated by the arrow.
d. Slide the ribbon carrier into the
printer.
e. Close latches 1, 2, and 3 as
indicated by the arrows.
f. Close the printer side cover.
6
Learn more.
Takeup Roller
For more information about operating and maintaining the
Everest printer, refer to the Everest Printer User Guide included
with your product.
For autoloader or AutoPrinter information, refer to the
instructions included with your autoloader or AutoPrinter.
If you are upgrading from a Prism printer to an Everest printer,
use GemFlash or GemUtil to update the autoloader firmware.
Instructions on updating the autoloader firmware are available
at www.rimage.com/support.
Transfer
Ribbon
Carrier
Takeup
Roller
Tighten
Ribbon Guides
Latch 1
Latch 3
Latch 2
