OUTDOOR PANELS INTERNAL WIRING

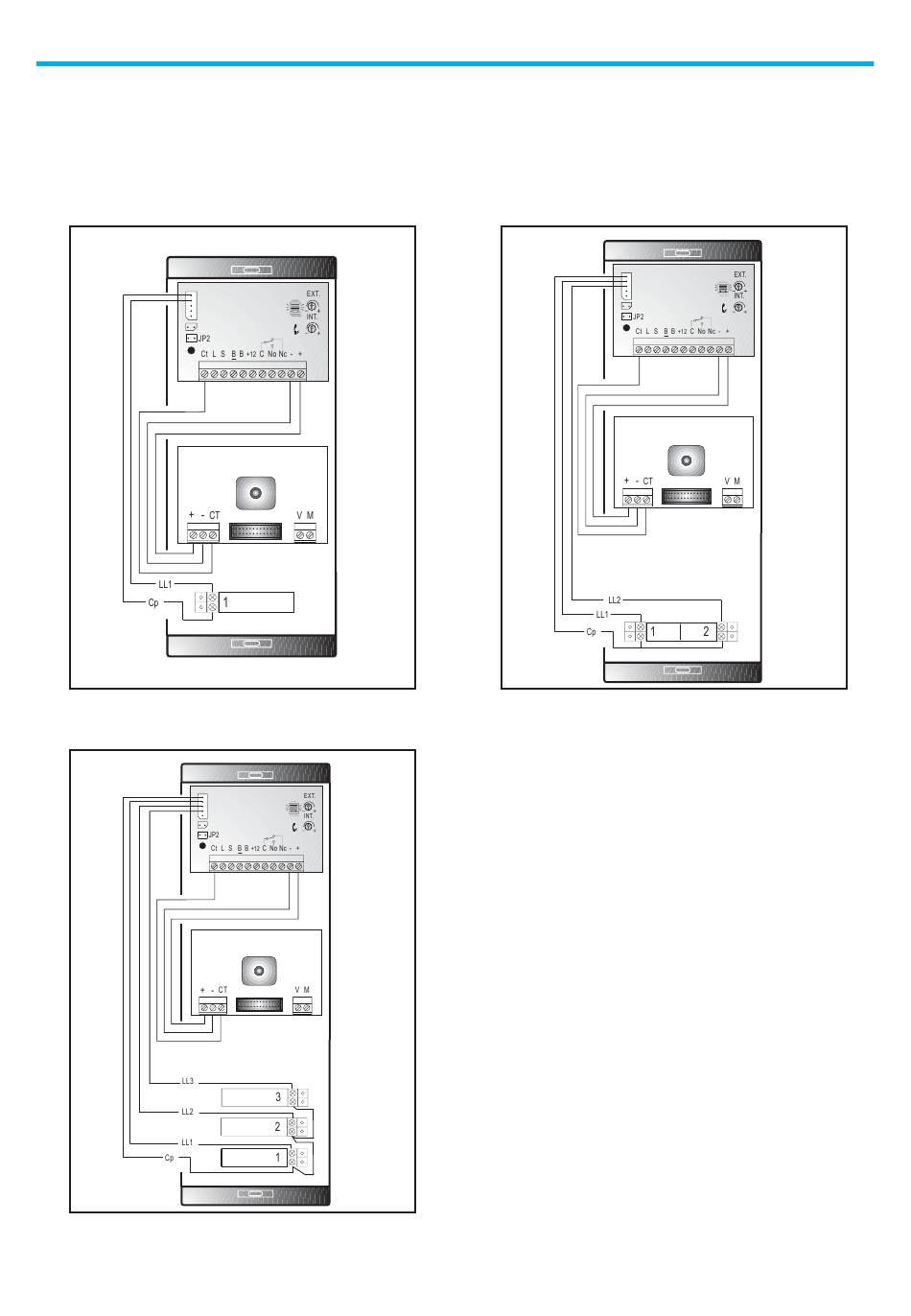

The outdoor panels are supplied internally wired, as shown below. The system
cannot work if these internal connections are removed or altered. Therefore, if you
connect any wire to a terminal already wired (from manufacture) make sure that
none are removed.
DIGITAL OUTDOOR PANEL 1/L
DIGITAL OUTDOOR PANEL 3/L
Pag 44
DIGITAL OUTDOOR PANEL 2/L
