JP2
Ct L S B B C No
+12
MAIN PANEL
NOTE:
Terminals can only be programmed from the main panel (JP1 connected).

ACCESORIES

The following are some examples of FERMAX accesories that can be used
with the KIT, and some examples of typical installations with these devices.
* SURFACE BOX (REF.8951, 8954 y 8955): To install the Outdoor Panel in
places where there is no possibility of flushing in the wall (marble, thin
walls, etc.)
* CONVERSION FRAMES (REF.8991, 8994 y 8995) Used for covering the
gap in the wall from previous installations.
* ELECTRONIC EXTENSION CALL (REF.2040) See next page.
* STAIRS LIGHT RELAY (REF.2013) See pages 41 and 42.
* LIGHT COMMANDER (REF.8053) Allows to activate buzzers and devices
supplied with 220 Vac.
* CORNER BOX (REF.8378, 8381 y 8382) To improve the orientation of the
Outdoor Panel when it is installed in places with difficult access.
Pag 40
TO THE MONITORS
EXT.
PLAC
INT.
TELEFONO
Nc - +
Connect
JP2

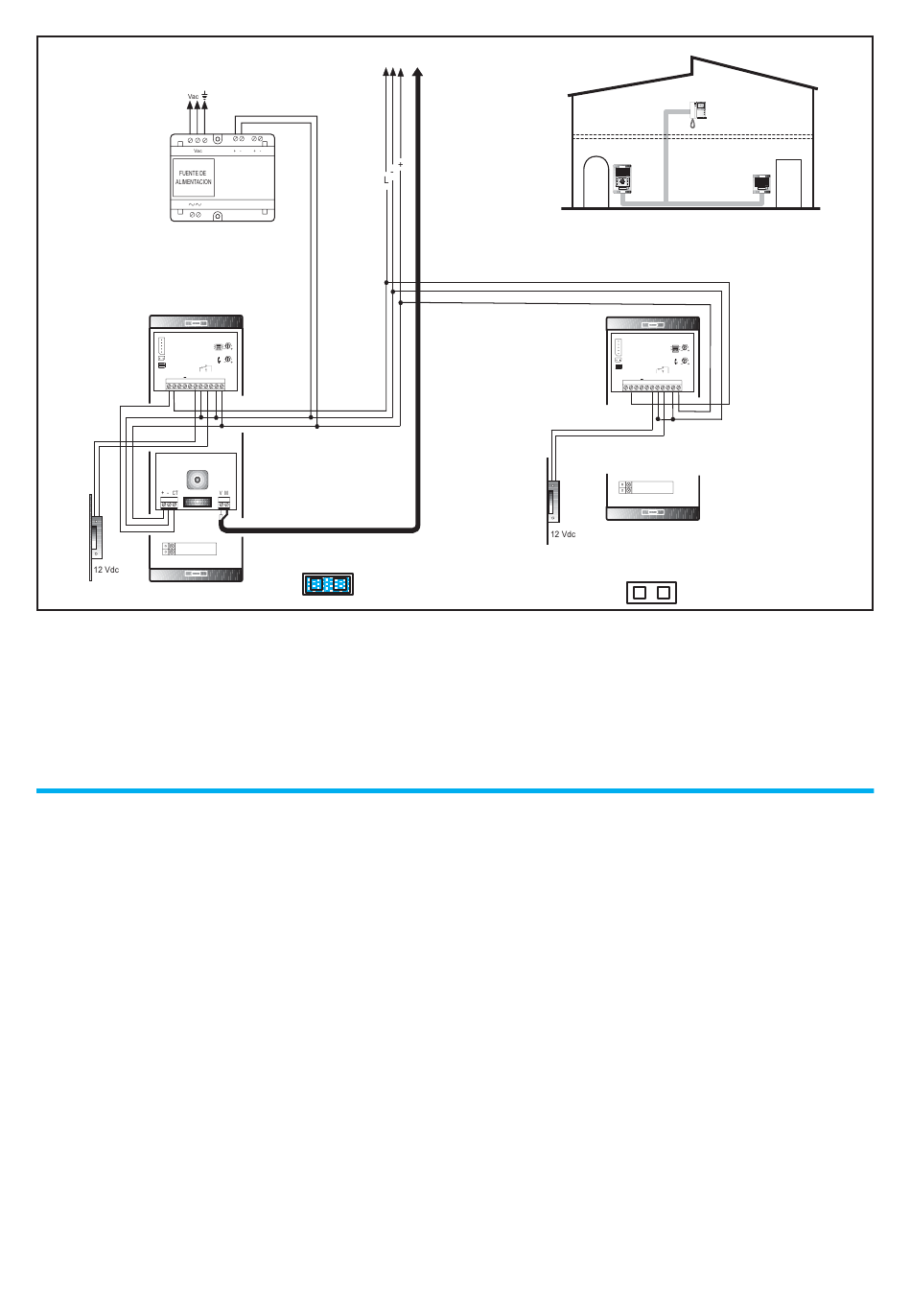

Wiring for ADDITIONAL AUDIO PANEL KITS
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
PAN &TILT CCD CAMERA
EXT.
PLAC
INT.
TELEFONO
JP2
Ct L S B B C No Nc - +
+12
ADDITIONAL PANEL
JP2
Do not connect
