In installation up to 40 meters from the the outdoor panel to the furthest monitor,
the blue wire in this installation diagram can be ignored.
In installations with several branches, put a 10Kohms resistor between "+" and
"L" terminals in the last monitor. This kits comes with a plastic bag including 5
resistors.

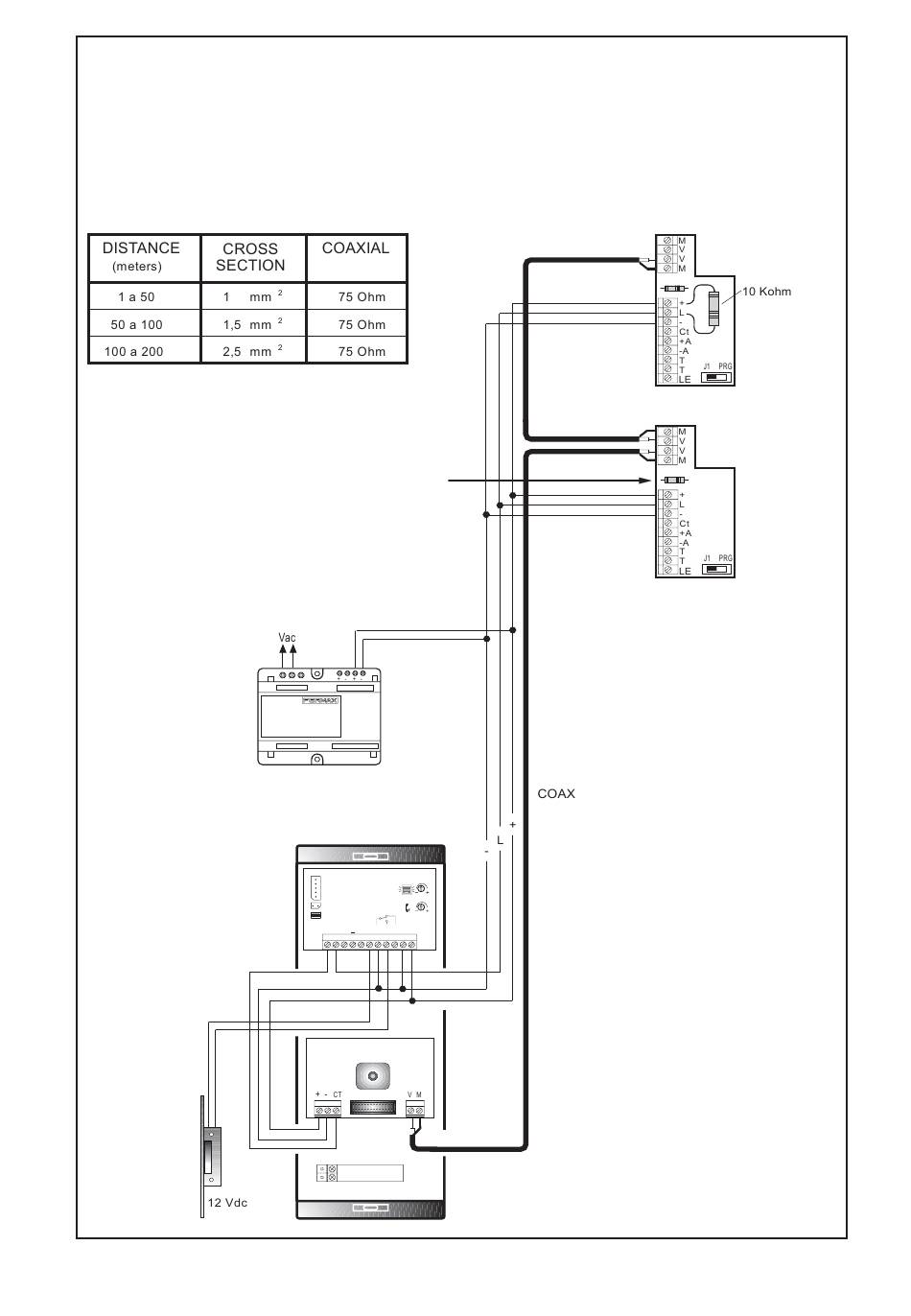

Wiring for FERMAX DIGITAL KIT REF.6034
CUT THIS
RESISTOR
EXT.
PLAC
INT.
TELEFONO
JP2
Ct L
S
B
B
C
No
Nc
-
+
+12
Pag 35
