KIT EXPANSIONS

The FERMAX DIGITAL KIT can be expanded with additional monitors
(REF.6070) or telephones (REF.2451) in the same apartment following the
connections shown in the next page.
It is also possible to install an additional Outdoor Panel (see wiring details on
page 39) or an auxiliary camera.
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
The DIGITAL KIT 2/L can be also
improved by adding terminals in one
of the apartments without affecting a
neighbour's Monitor. This is useful in
buildings with 2 floors (see backpage
for details).
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
FLAT MONITOR

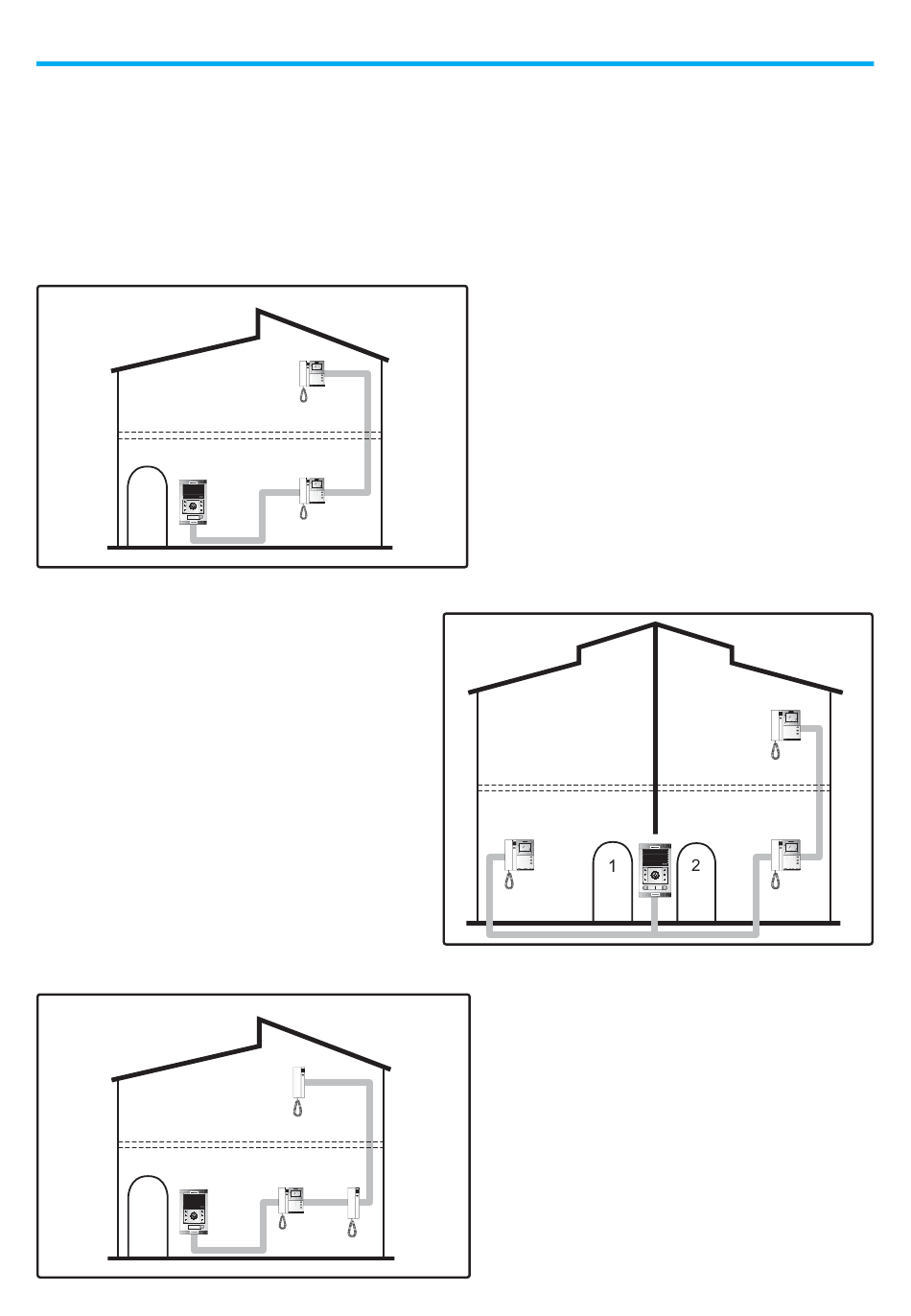

One possibilty is to install an
additional monitor in another area of
the apartment so you can use the
system without going to the main
Monitor (see backpage for wiring
detail).
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
Another extension example for the
DIGITAL KIT would be to install
aditional telephones in different areas
of the apartment (kitchen or
bedrooms), allowing to use the
talk-listen and door control functions
within the buiding (see backpage for
wiring detail).
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
FLAT MONITOR
Pag 37
