INSTALLATION DIAGRAMS

The following are the installation diagrams for the FERMAX DIGITAL KIT 1, 2
and 3 lines. Check suitable wire sections with the table on page 43.
Do not forget that the monitors must be programmed with their apartment
numbers, following the sequence shown in page 32.
In installation up to 40 meters from the the outdoor panel to the furthest monitor,
the blue wire in this installation diagram can be ignored.
In installations with several branches, put a 10Kohms resistor between "+" and
"L" terminals in the last monitor. This kits comes with a plastic bag including 5
resistors.

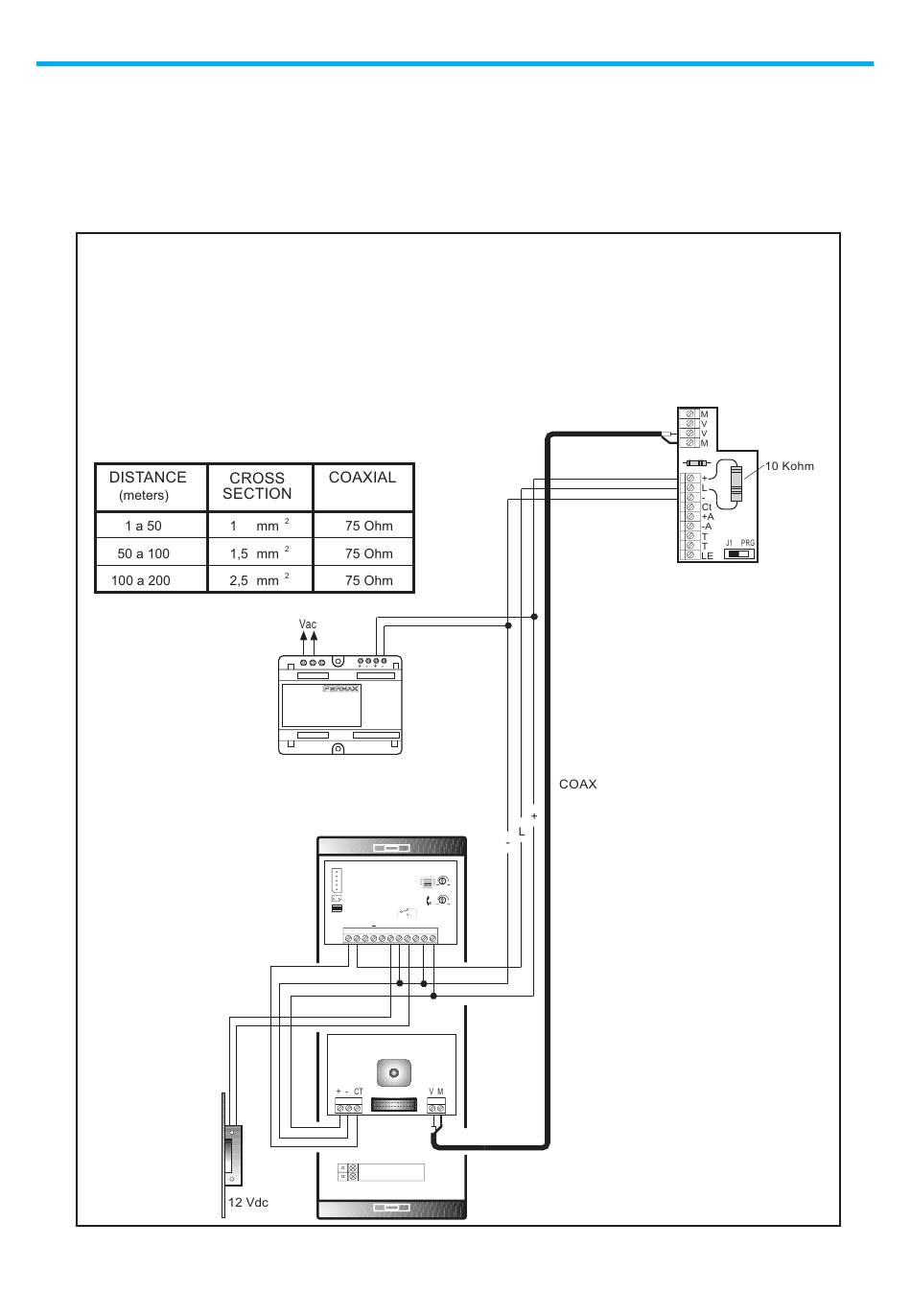

Wiring for FERMAX DIGITAL KIT 1/L REF.6030
Pag 34
EXT.
PLAC
INT.
TELEFONO
JP2
Ct L S B B C No Nc - +
+12
