has been installed (see page 32), assigning one of the pushbuttons in the
Outdoor Panel.
* The resistor in the connector must be cut in all the monitors with 2 coaxial
cables connected. Do not cut it when only one coaxial is connected.
Do NOT cut the resistor.
How to add an Aditional Outdoor Panel
It is possible to extend the DIGITAL KIT by installing an Aditional Outdoor
Panel at another access to the building (service gate, garage, etc...). Depending
on the type of aditional Panel (video or audio) you will be able to use the ADITIONAL
VIDEO PANEL KITS (REF.6053, REF.6054 Y REF.6055) and ADITIONAL AUDIO
PANEL KITS (REF.6056, REF.6057 Y REF.6058) for 1, 2 and 3 lines respectively.
The wiring of these ADITIONAL PANEL KITS are idependent from the number
of lines. Therefore, the diagrams shown can be used for every FERMAX DIGITAL
KIT.
EXT.
PLAC
INT.
TELEFONO
JP2
Ct L
S
B
B
C
No
Nc
-
+
+12
ADDITIONAL PANEL
NOTE:
Terminals can only be programmed from the main panel (JP1 connected).
Do not connect
JP2

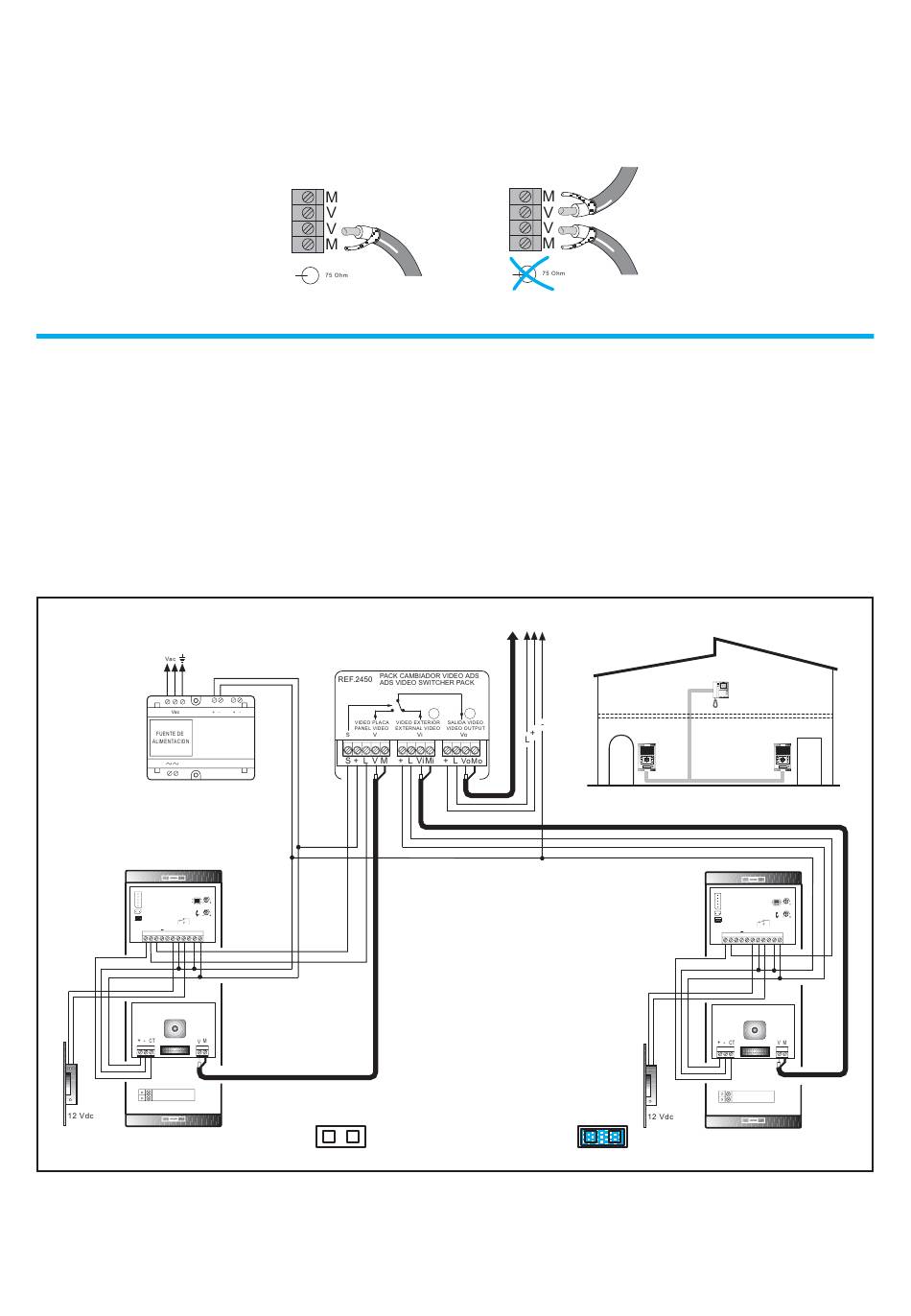

Wiring for ADDITIONAL VIDEO PANEL KITS
