Installation Instructions

 For installation the appliance must be connected in accordance with all local electrical regulations.
 The oven has been designed to be fitted into a kitchen unit. It can be fitted either
under a worktop or in a taller cupboard unit at eye level. Cut out an opening in the
kitchen unit as shown in. (See Figure 1 and Figure 2)
 Ensure there is sufficient support below the oven to carry the weight of the oven.
 The walls of the furnace is mounted must be heat resistant. In particular the side walls were
made of fiberboard coated. The coating resistant must be to 100 °C. This not heat-resistant
synthetic laminates and adhesives, plastics or adhesive materials may be damaged. This
information will only be to create a guide and the real resistance against the increase in
temperature depends on the degree of kitchen units and surface polish performance.
 Certain kitchen unit of surface of polishing types (example vinyl) is especially sensitive
at the lower temperatures with color damage, above mentioned temperatures.
 Installation of the device in contravention of the warnings or the cabin materials
placed to device closer to the 5 mm responsibility of the owner.
 The power cord avoid crush, fold and clamped or avoid contact with hot parts of
product. After installation, the plug must be easily accessible location.
 There must be safe distance between kitchen walls and furniture.
 A correct installation will have to ensure a proper protection against contact with
electric parts or merely functionally isolated parts.
 All the units meant to ensure protection have to be fitted not to be taken away without using a tool.
 For the most efficient air circulation, the oven should be fitted according to the
dimensions shown in (See Figure 1 and Figure 2 )
 If the built-in oven is mounted below the hob, distance of at least must be 50 mm.
 The rear panel of the cabinet must be removed so that air circulates freely. The panel
to which oven is fitted should have a gap at least 75 mm at the rear. (See Figure 3)
 We recommend not installing the appliance near refrigerators or freezer, since the
heat could affect the performance of these appliances.

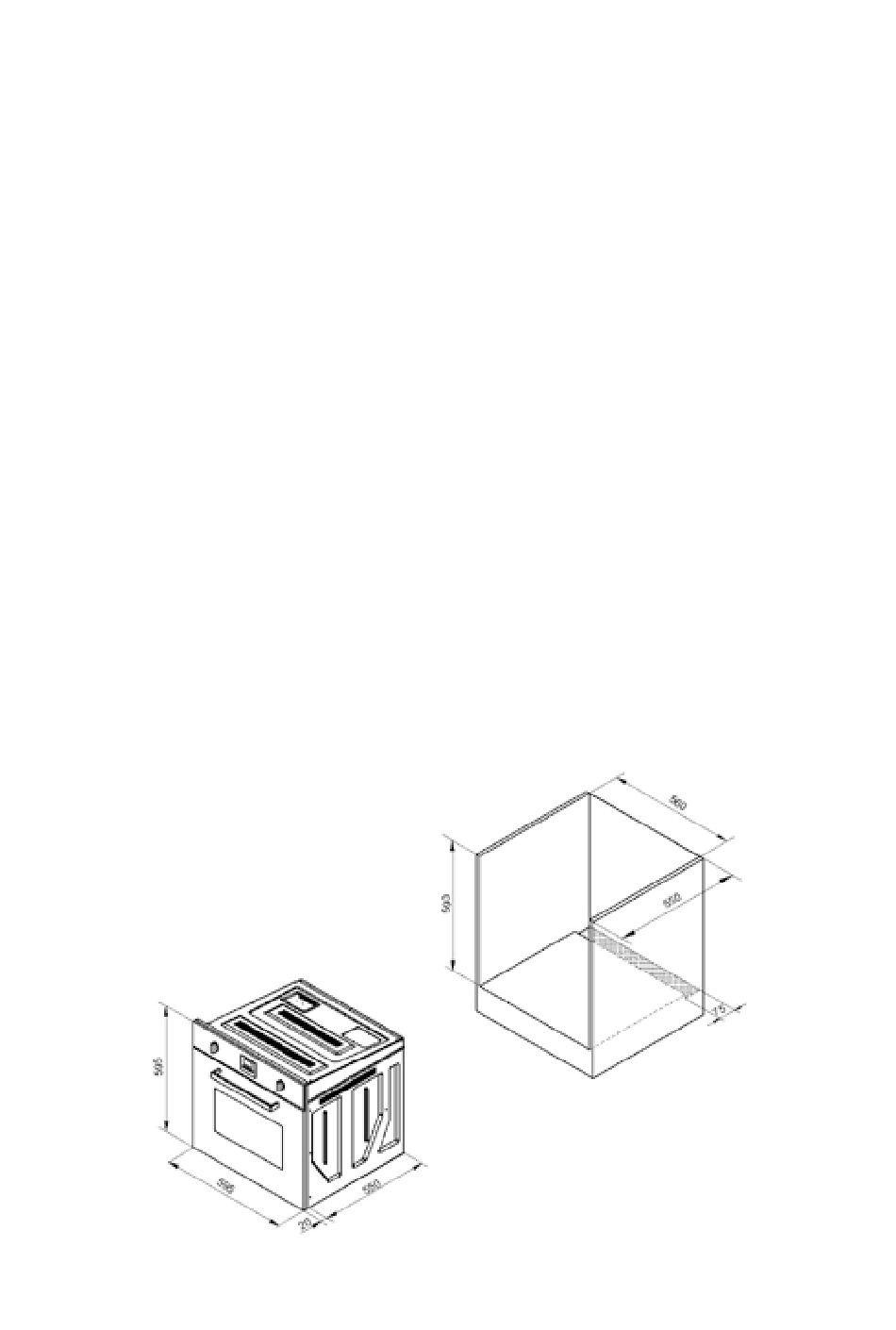

Figure 1
