OVEN SEALING
Your oven has a sealing surrounding the inside edges which provides the oven to work
properly.
 Check the state of the sealing periodically. If cleaning is necessary, avoid using
abrasives, corrosive detergents, bleaches or acids.
 If the sealing is damaged, consult with your nearest authorized service provider in
your area. Do not use the oven until it is fixed.
 The changing procedure of the oven seal is as follows;
1. Open the oven door,

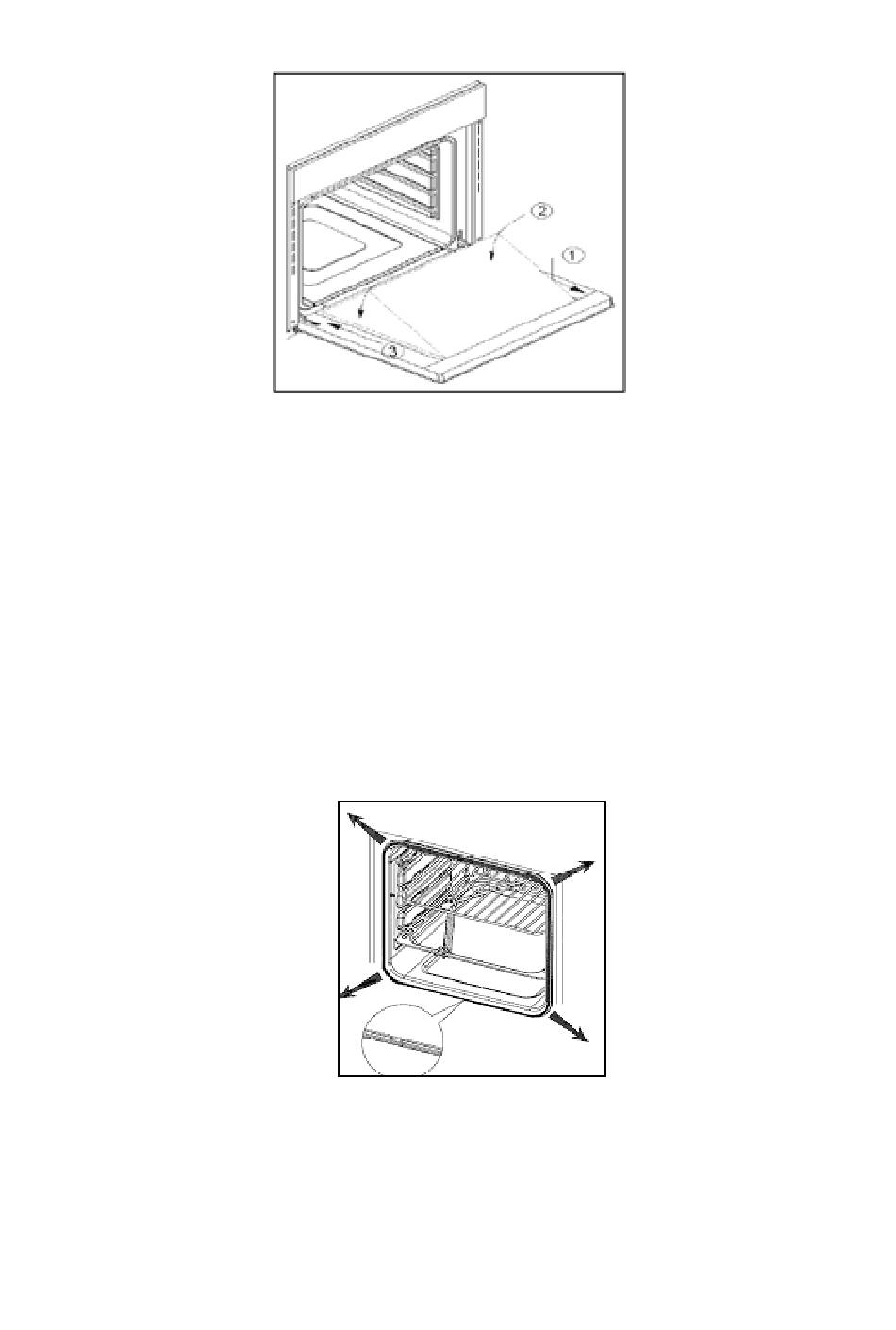

2. Remove the old sealing by pulling out the seal from corners one by one as shown
in (See Figure 13),
3. Four hooks are attached to the seal. Use these hooks to attach and then press in
the new seal.
SIDE RACKS *
It is possible to easily remove and clean the wire shelving placed in the wire grid and tray. You can
recover the wire shelving from screw channel by stretch down the edge of special plug, like as
shown. Then, you can recover with pull up to outward and lift up to from upper tabs. Install after
cleaning; process done in reverse order, first the upper tabs set to boiler rack, after that placed in
a screw channel with stretching the special screw-earth channel wings. (See Figure 14)
Figure 12
Figure 13
