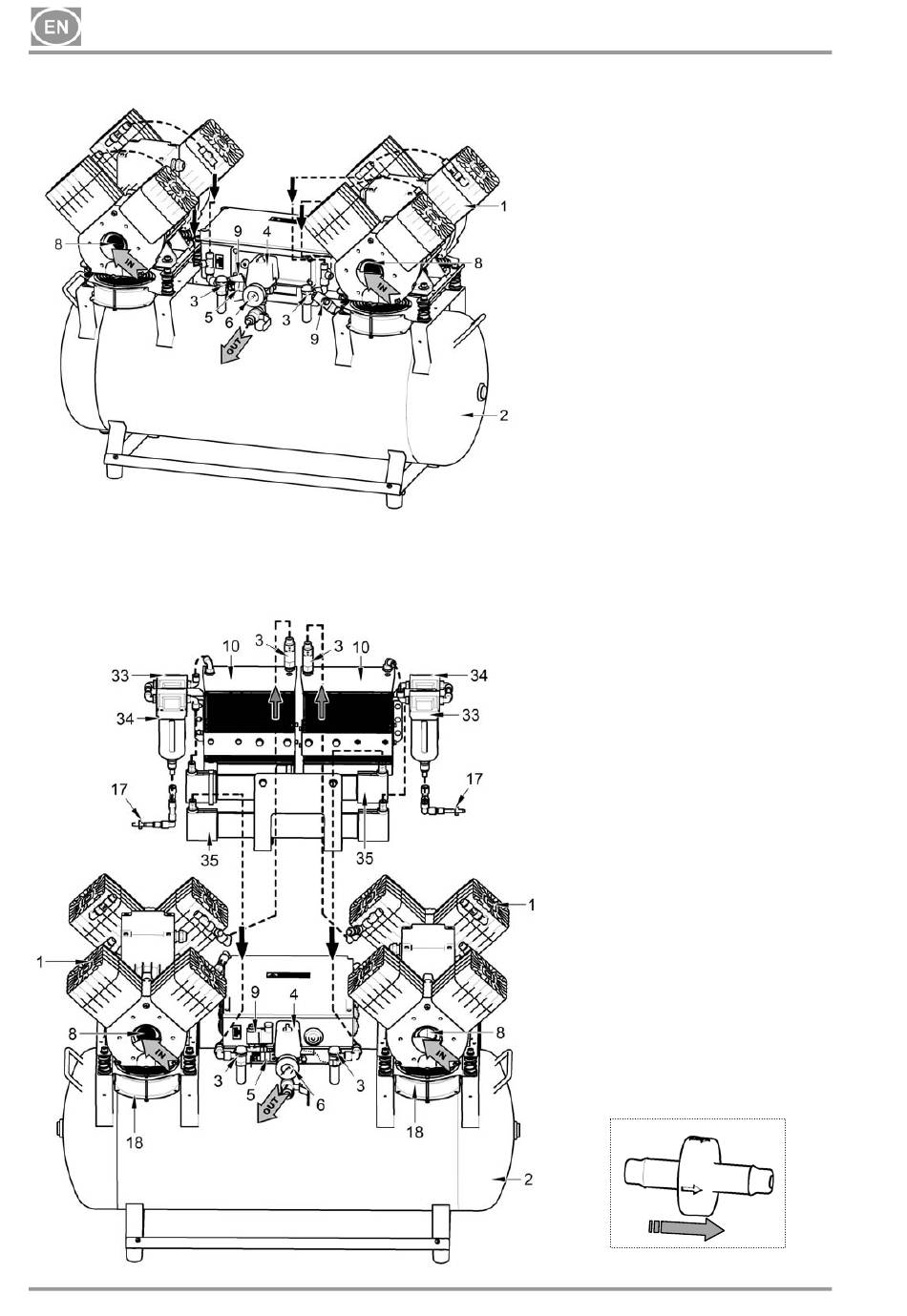

Fig. 1 - Compressor
Fig.2- Compressor with membrane dryer (MD)
NP-DK50 2x4VR110-7_04-2015 - 8 -
DK50 2x4VR/110
1. Compressor
2. Air tank
3. Check valve
4. Pressure switch
5. Safety valve
6. Pressure gauge
7. Condensate drain valve
8. Inlet filter
9. Solenoid valve
10. Dryer cooler
11. Adsorption dryer (NDL)
12. Pressure regulator
13. Pressure switch 2
14. Pressure relief valve
15. Condensate separator
16. Control valve
17. Check valve
18. Compressor fan
19. Box gas springs
20. Wall bump stop
21. Power supply cord
22. Pressure gauge hose
23. Angular screwing
24. Supporting bracket
25. Compressor wheel
26. Cabinet fan
27. Handle
28. Switch
29. Maintenance indicator
30. Cabinet pressure gauge
31. Temperature switch
32. Positioning truck
33. Filter
34. Micro-filter
35. Membrane dryer (MD)
