GGP ITALY 102 Gebrauchsanweisung Seite 71

EN 12
for the right (R ) and
left (L ) sides, and
attach them to the
frame using the screws
and nuts (9).
➤
In electric tipping
models:

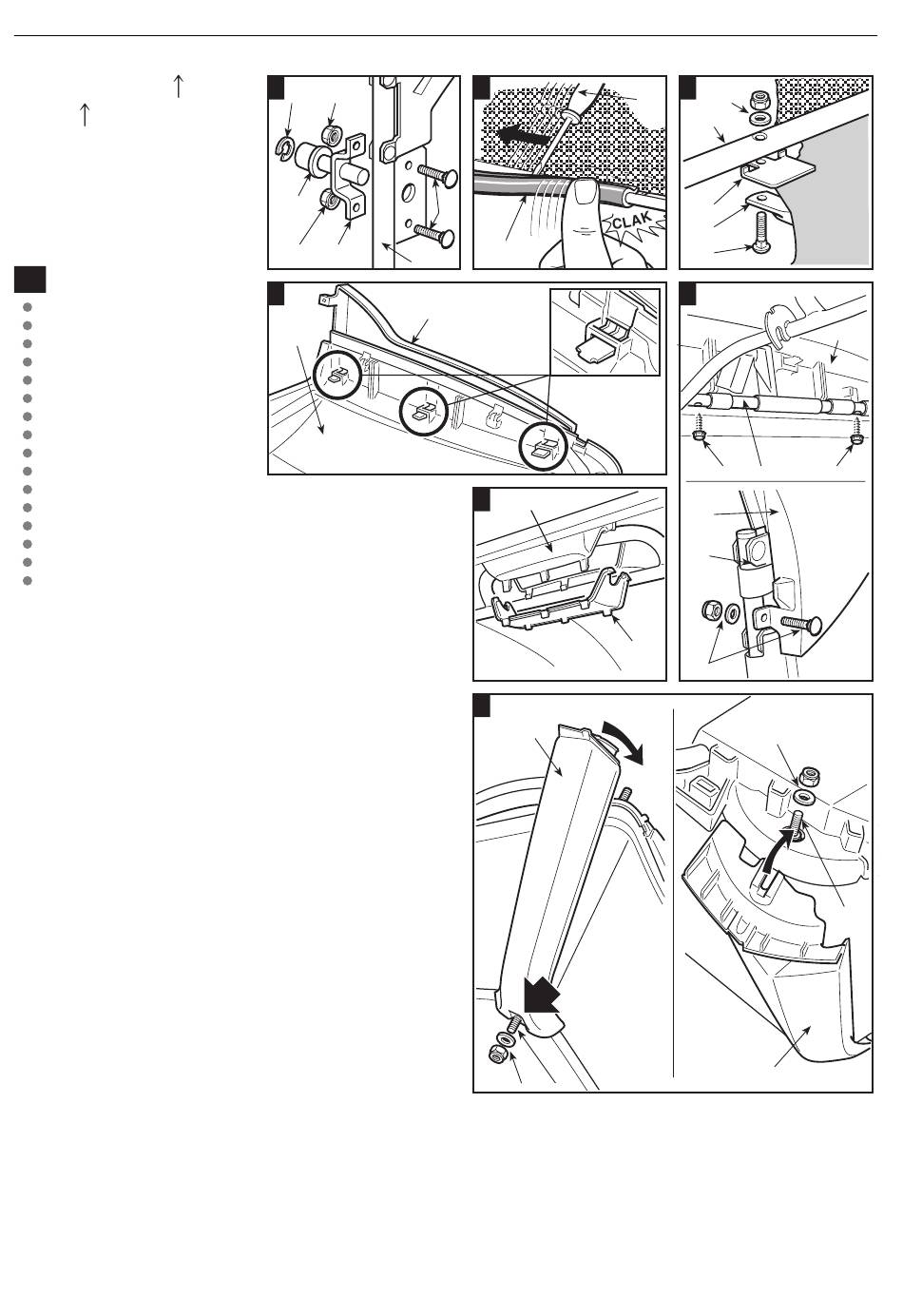

D) Mount both
rollers (10) on the
pins on the brackets
(11) with the collar
facing the bracket,
and secure them
with the snap rings (12). Fasten the
brackets to the front frame (2) using the
screws and nuts (13).
E) Insert the frame in the canvas cover
(14) making sure it is correctly positioned
on the base perimeter.
Hook the plastic profiles onto the frame
tubes with the aid of a screw-driver (15).
F) Place the plate (16) between the can-
vas and the lower part of the frame (5),
lining up the holes.
Attach the stiffening bar (17) under the
frame using the screws and nuts (18) and
keeping the flat part turned towards the
canvas.
G) With the plastic cover (19) the other
way up, mount both sides (20) and (21)
and push the three clips right down until
you hear a click.
H) Mount the cover (19) and fasten it to the upper part of the frame (1) with the
four screws (22) and the front component (2) with the screws and nuts (23).
J) Attach the front handle guard (24) so that it snap-fastens onto the cover (19).
D
12 13
10
13
13 11
2
G
20-21
19
29
28 - 29
30
UNPACKING AND ASSEMBLY
E
15
14
J
19 19
24
K
25 - 26
27 9
F
18
5
16
17
18
H
19
22 5 22
19
2
23
27
9
25 - 26
